Life Fitness 93X-0XXX-04 User Manual

Page 13

background image

13

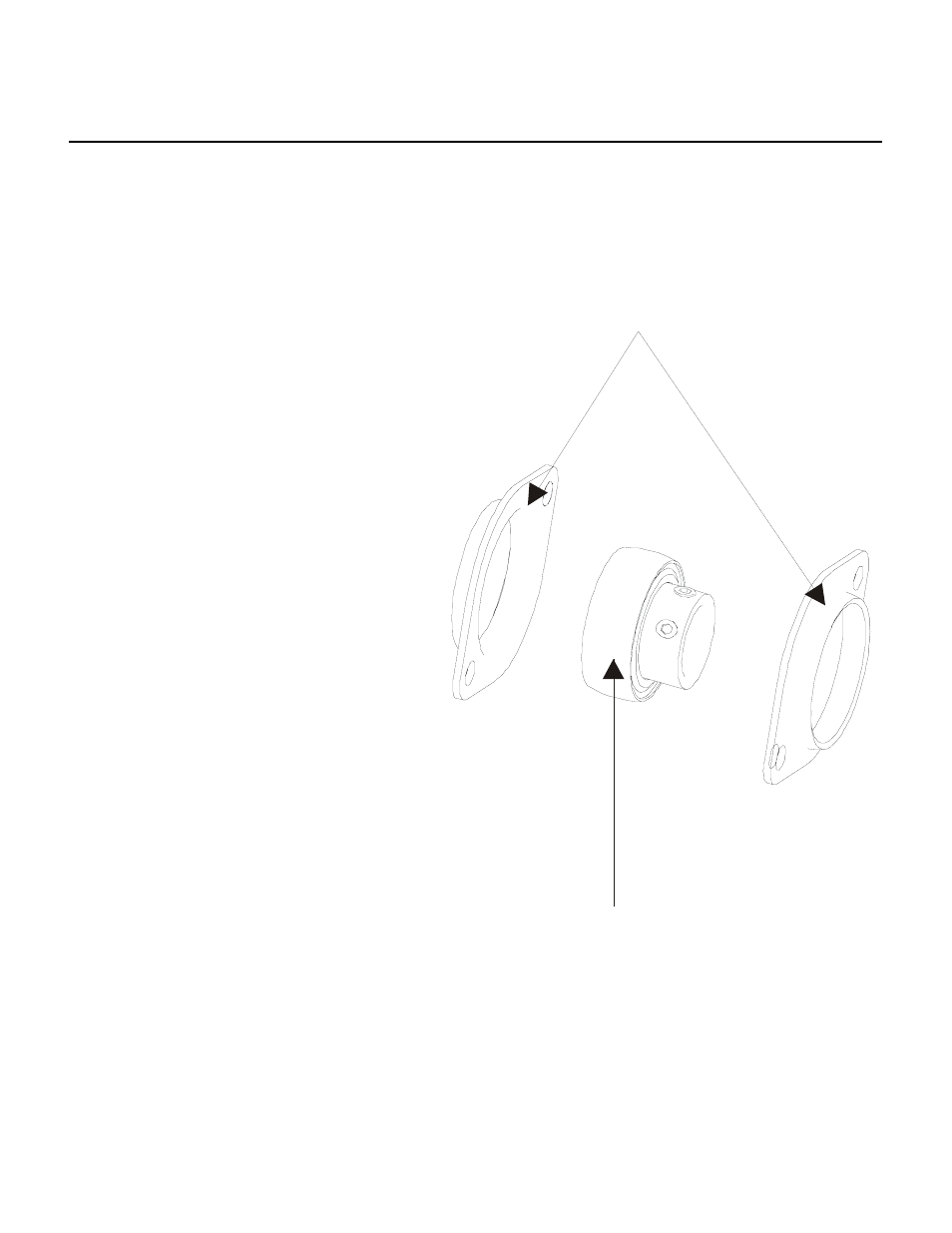

1” Bearing
0K62-01221-0000

Bearing Flanges (2)
0K62-01220-0000

ARCTIC SILVER QUIET DRIVE 93X

93X-0XXX-04

Bearing-Insert Assembly – AK62-00299-0000

S/N XWF100000

This assembly is used 4 times on the drive module assembly.

Service Kit-
GK62-00002-0044
Includes:

1- crankshaft
2- bearings
2- sets of bearing flanges
4- nuts and washers

Service Kit- GK62-00002-0045
Includes:

1 - intermediate shaft
2 - bearings
2- sets of bearing flanges
4- nuts and washers
