T
OOLS
R
EQUIRED FOR
A
SSEMBLY...
5/32” Hex Key Wrench (provided), 9/16” Combination Wrench, Phillips Screwdriver

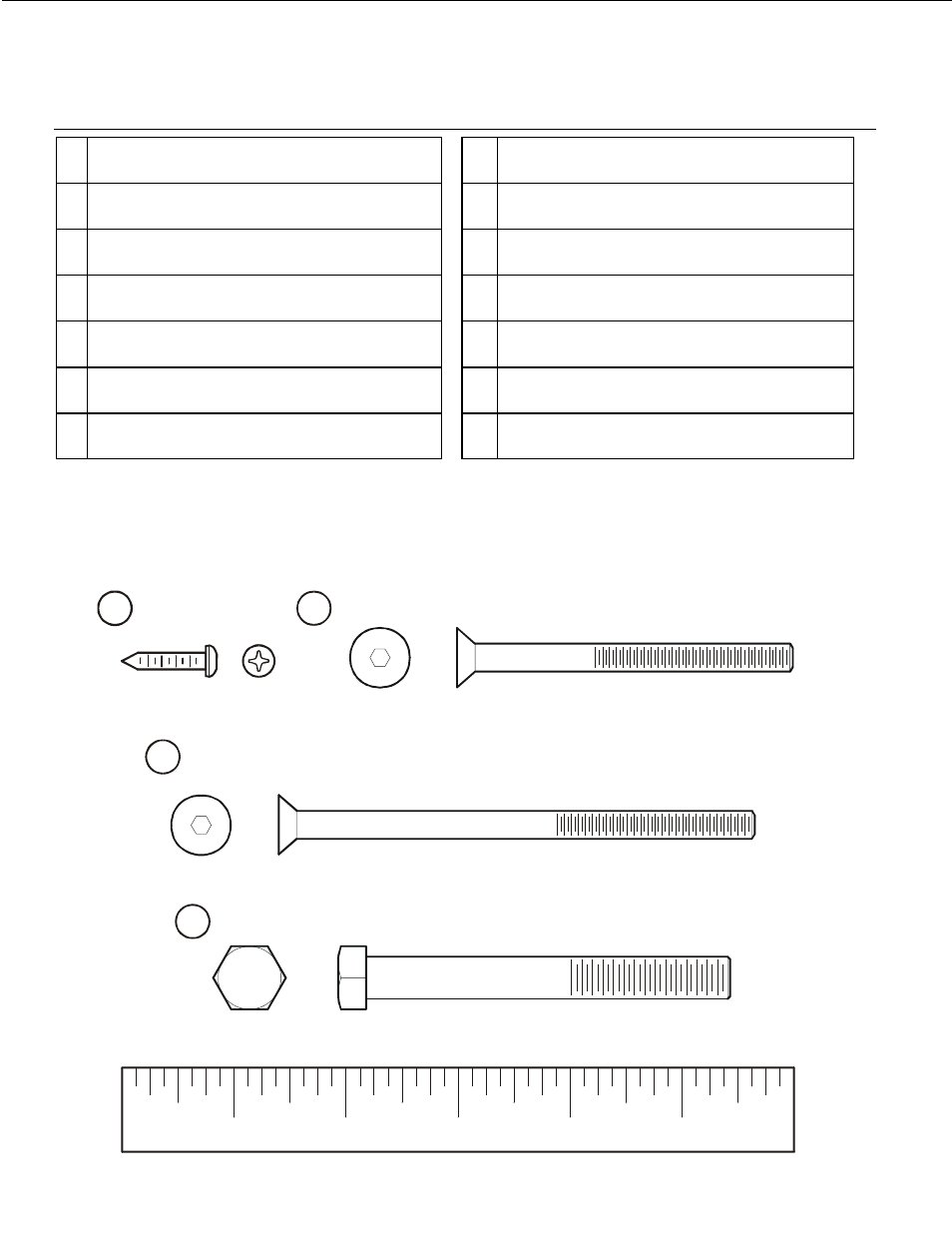

P
ARTS
D
ESCRIPTION
1 USER LEFT UPRIGHT Qty: 1
6860001
2 USER RIGHT UPRIGHT Qty: 1
6860401
3 DISPLAY CONSOLE ASSEMBLY Qty: 1 4 HANDRAIL (LEFT & RIGHT) Qty: 2
7010101
5 TOP HANDRAIL SPACER Qty: 2
7127201
6 MOUNTING SCREW (SHORT) Qty: 2
1/4 - 20 x 3”
3208001
7 MOUNTING SCREW (LONG) Qty: 8
1/4 - 20 x 4.25”
3207701
8 BOTTOM HANDRAIL SPACER Qty: 2
7127101
9 HANDRAIL CROSSBAR Qty: 1
7010401
10 UPRIGHT MOUNTING BOLT Qty: 4
3/8 - 16 x 3.25”
3223310
11 MOTOR COVER SCREW Qty: 2
6-20 x .38
3207501
12 STOP CORD Qty: 1
6841301
13 UPPER HANDRAIL COVER Qty: 2
7127401
4
1” 2” 3” 4” 5”
10
6
7
11
