3.2.3 System Setup: Server Window Setup
The Server Window contains the port name and number that the User is connected
to. The Server window is displayed briefly when connecting to a server.

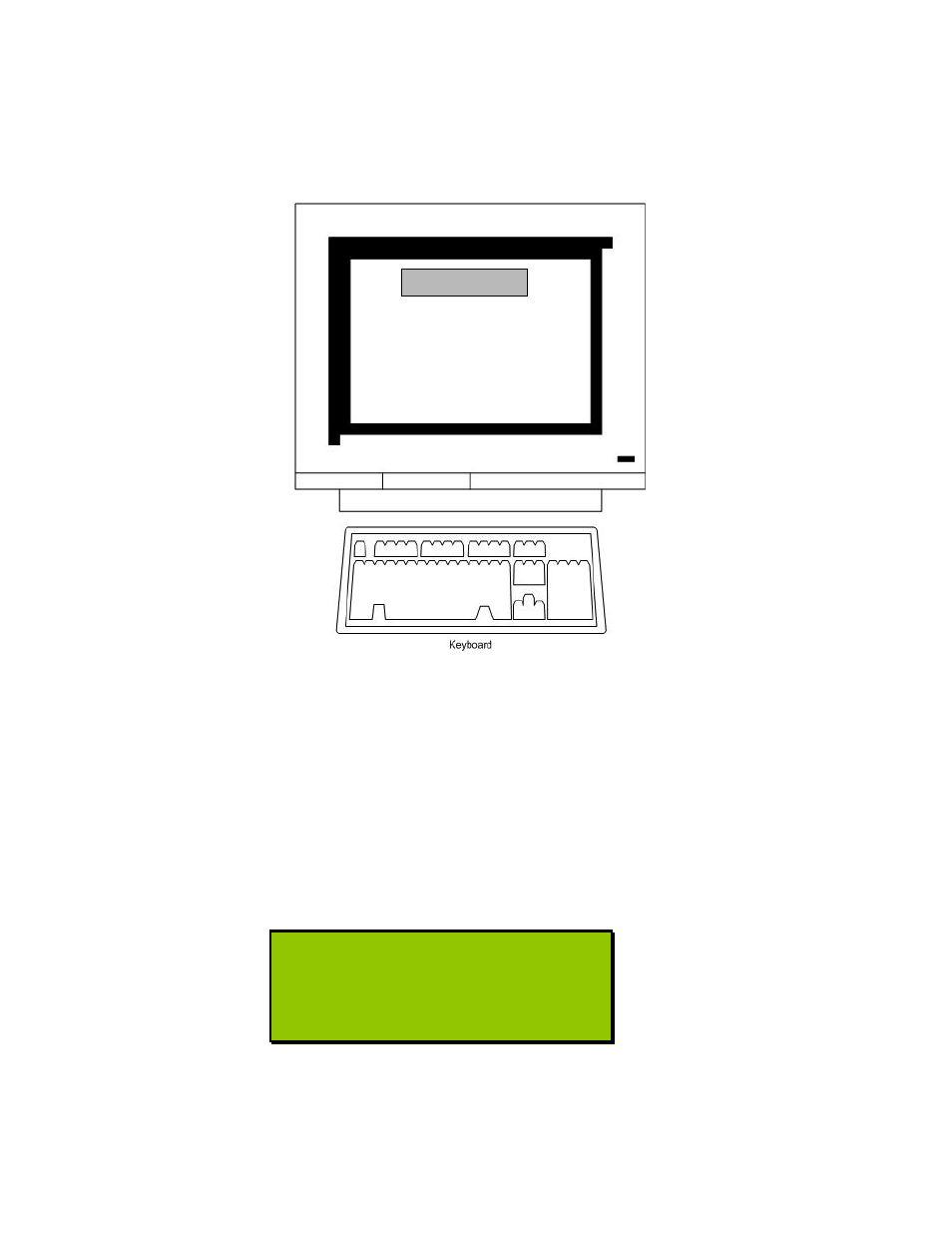

Figure 4 Terminal showing sample Server Window display
Select the color and position of the Server Window by scrolling through the above
options using the up/down arrow keys and pressing “Enter” to move the window
and/or change colors. Use the color and position options listed in Section 3.2.2.
To select a specific function, press the hot-key letter that is capitalized /
highlighted.
3.3 Front-panel LCD Display
The PC ServerSwitch 2x16 is equipped with a backlit LCD display. The display is
used in conjunction with the front panel UP and DOWN arrow buttons when
selecting Servers for either user.
A: Port 1 Name
Cable Power Removed
Port 10 P10
When the PC ServerSwitch 2x16 is turned on the LCD will show the version of the
switch, perform quick diagnostics, and inform you that the “Unit is Ready.” The
File Server 2 8
