Job Information Type:
FA01
Architectural Decorative, Vetro Pendant
Page 3 of 4
Catalog no. FA02/FA01, 13w 4 pin twin tube, 800 lumens.
Report No. 3109FR
SC = 1.2

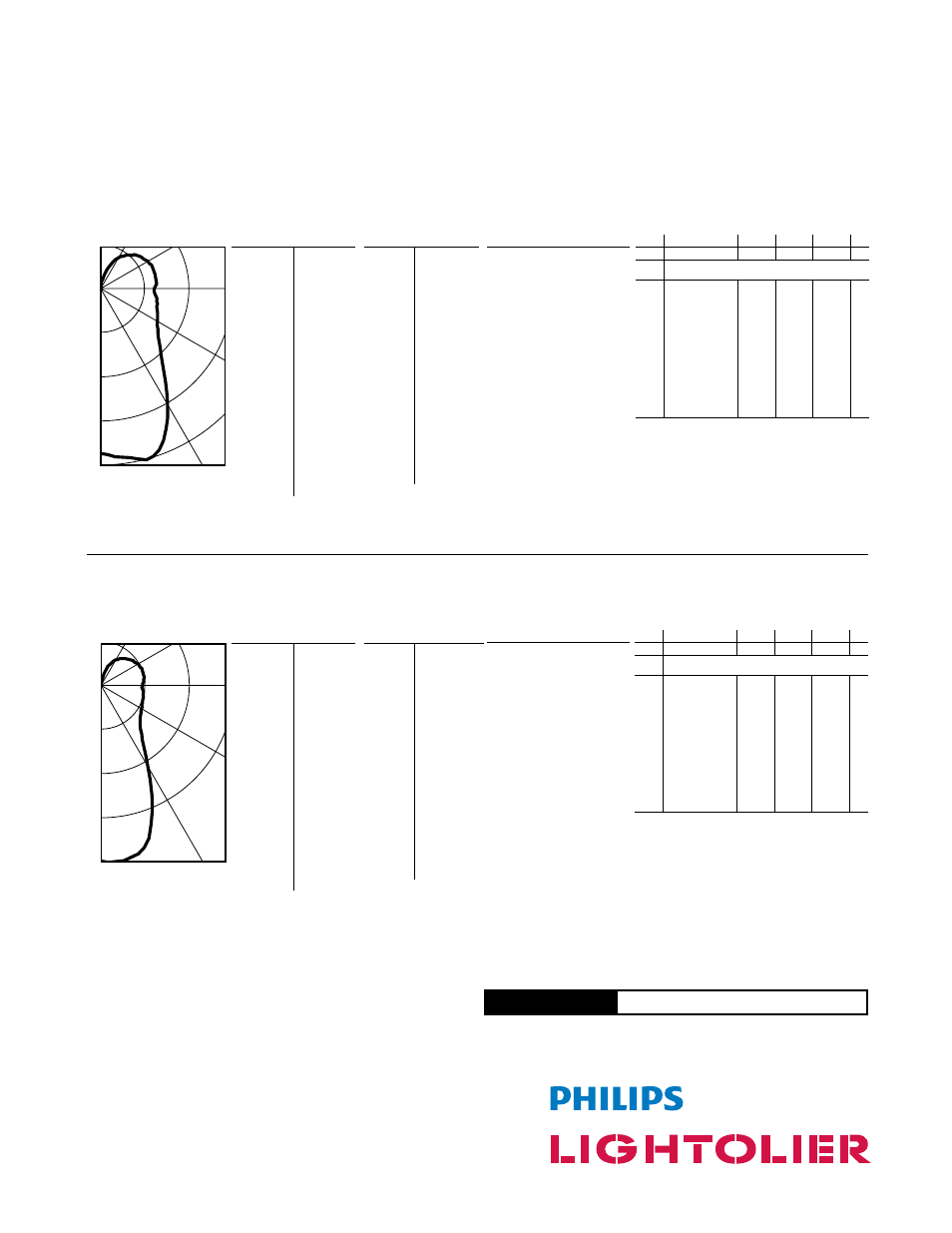

Candlepower summary
Angle Mean cp Angle Mean cp
0 120 90 39
5 123 95 41
10 125 100 41
15 129 105 41
20 125 110 41
25 113 115 41
30 98 120 40
35 83 125 38
40 70 130 37
45 62 135 35
50 55 140 32
55 51 145 29
60 48 150 26
65 46 155 22
70 44 160 16
75 43 165 10
80 42 170 5
85 40 175 2
90 39 180 1
Zonal lumens and percentages
Zone Lumens %Lamp %Fixt
0-30 99.63 12.5 16.6
0-40 151.58 18.9 25.2
0-60 245.15 30.6 40.8
0-90 379.78 47.5 63.2
90-120 127.89 16 21.3
90-130 162 .34 20.3 27
90-150 207.67 26 27
90-180 221.06 27.6 36.8
0-180 600.84 75.1 100
** Efficiency = 75.1% **
129
97
65
32
60°
30°
0
Coefficients of utilization
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR
Zonal Cavity Method - Effective Floor Reflectance
= 20%
Room Ca
vity Ratio
0 83 83 83 83 78 78 68 68 59 59 47
1 73 69 65 62 65 58 56 51 49 45 35
2 66 60 54 49 56 47 49 42 42 36 29
3 60 52 46 41 49 39 43 34 37 30 24
4 55 46 39 34 43 33 38 29 33 26 20
5 51 41 34 30 39 28 34 25 30 23 18
6 47 37 30 26 35 25 31 22 27 20 15
7 43 34 27 23 32 22 28 20 25 18 14
8 40 31 24 20 29 19 26 18 23 16 12
9 38 28 22 18 26 17 24 16 21 14 11
10 35 26 20 16 24 16 22 14 19 13 10
Determined In Accordance With Current IES Published
Procedures
Luminaire Input Watts = 18
Zonal lumen summary
Zone Lumens
0-10 11.79
10-20 36.08
20-30 51.76
30-40 51.95
40-50 47.76
50-60 45.8
60-70 45.64
70-80 45.22
80-90 43.77
90-100 44.19
100-110 43.37
110-120 40.33
120-130 34.45
130-140 26.87
140-150 18.45
150-160 10.09
160-170 3.03
170-180 .27
Catalog no. FA02Q/ FA01Q, 13W 4 pin quad tube, 900 lumens.
Zonal lumens and percentages
Zone Lumens %Lamp %Fixt
0-30 104.53 11.6 18.8
0-40 146.52 16.3 26.4
0-60 223.38 24.8 40.2
0-90 344.68 38.3 62.1
90-120 120.54 13.4 21.7
90-130 153.2 17 27.6
90-150 196.85 21.9 27.6
90-180 210.54 23.4 37.9
0-180 555.22 61.7 100
** Efficiency = 61.7% **
Candlepower summary
Angle Mean CP Angle Mean CP
0 155 90 37
5 156 95 38
10 154 100 39
15 148 105 39
20 130 110 39
25 107 115 38
30 83 120 38
35 66 125 36
40 56 130 35
45 49 135 33
50 45 140 31
55 43 145 29
60 41 150 26
65 40 155 22
70 39 160 18
75 39 165 11
80 38 170 4
85 37 175 0
90 37 180 0
Coefficients of utilization
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR
Zonal Cavity Method - Effective Floor Reflectance
= 20%
Room Ca
vity Ratio
0 68 68 68 68 64 64 56 56 48 48 38
1 60 57 54 51 53 48 46 42 40 37 29
2 55 49 45 41 46 39 40 34 34 30 23
3 50 43 38 34 40 32 35 29 30 25 20
4 46 38 33 29 36 27 31 25 27 22 17
5 42 34 29 25 32 24 28 21 25 19 15
6 39 31 26 22 29 21 26 19 22 17 13
7 36 28 23 19 27 19 24 17 21 15 12
8 34 26 21 17 24 17 22 15 19 14 11
9 31 24 19 16 22 15 20 14 18 13 10
10 30 22 17 14 21 14 19 13 17 11 9
Determined In Accordance With Current IES Published
Procedures
Luminaire Input Watts = 15
Zonal lumen summary
Zone Lumens
0-10 14.85
10-20 40.98
20-30 48.7
30-40 41.99
40-50 38.32
50-60 38.54
60-70 39.94
70-80 40.86
80-90 40.5
90-100 41.19
100-110 41.26
110-120 38.1
120-130 32.66
130-140 25.6
140-150 18.05
150-160 10.29
160-170 3.25
170-180 .15
156
117
78
39
60°
30°
0
Report No. 3106FR
SC = .96
