2.1 Panel Layout
2.1.1. Front Panel

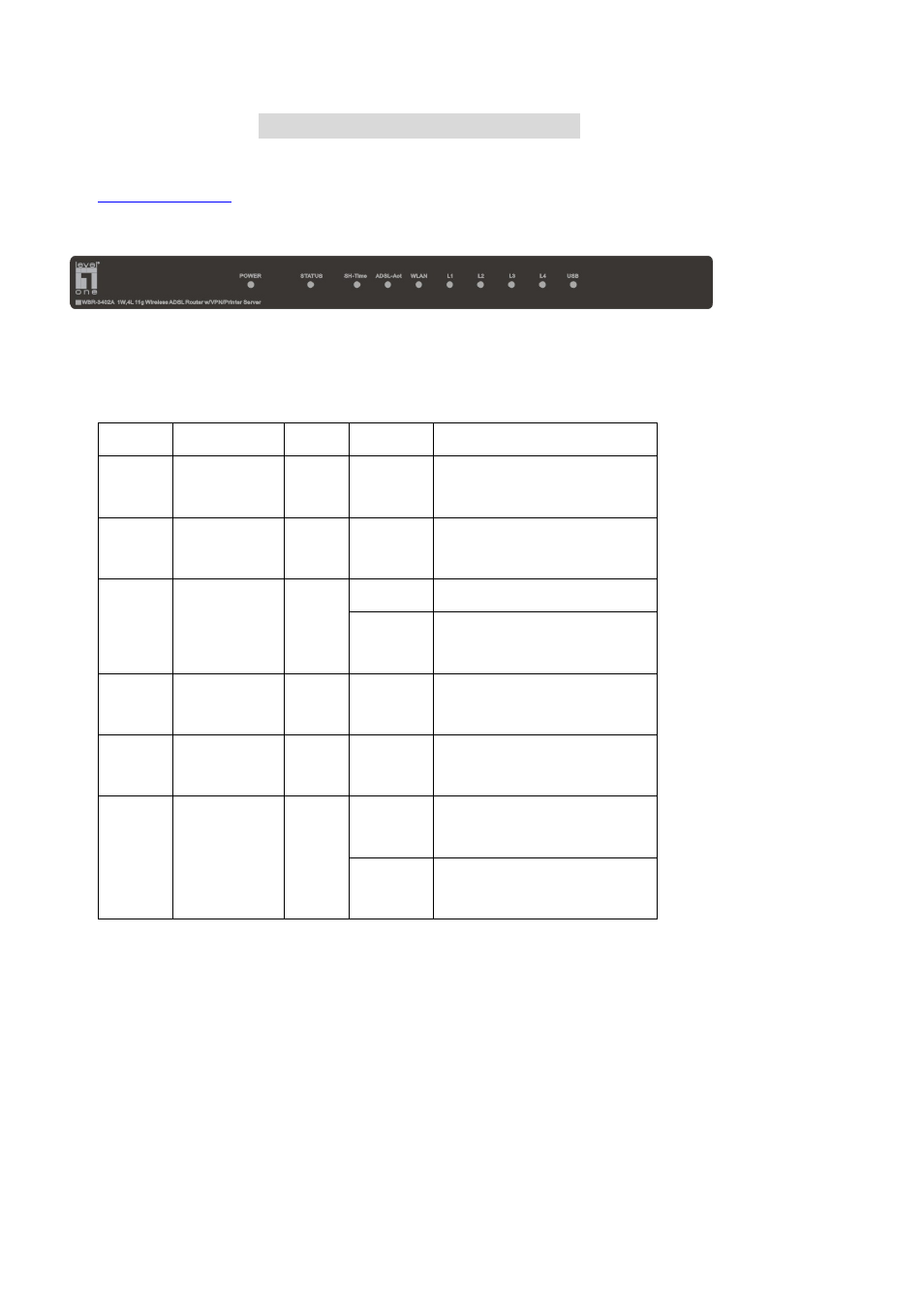

Figure 2-1 Front Panel
LED:
LED Function
Color
Status
Description
POWER Power
indication
Green On
Power is being applied to this
product.
STATUS System
status Green Blinking
This product is functioning
properly.
On
The ADSL is linked.
Show-tme ADSL
status1 Green
Blinking
This router is trying to connect to
your ISP
ADSL-Act ADSL
status2 Green Blinking
The ADSL is sending or
receiving data.
WLAN Wireless
activity
Green Blinking
Sending or receiving data via
wireless
On
An active station is connected to
the corresponding LAN port.
L1~L4 Link
status Green
Blinking
The corresponding LAN port is
sending or receiving data.
