LBB 4511 Radiator
Cable type 75 ohm RG59
Maximum number of radiators 30 per HF output
Maximum cable length TBD
Mounting
Suspension bracket for direct ceiling mounting
Mounting plates for floor stands with M10 and ½"Whitworth thread
LBB 3414/00 Wall Mounting Bracket can be used for fixing radiator to wall surfaces
Dimensions (H x W x D) without bracket: 7.9 x 19.7 x 6.9 in. (200 x 500 x 17 mm)
Radiator angle
0, 15 and 30° for floor-stand mounting
0, 15, 30, 45, 60, 75 and 90° for wall/ceiling mounting
Weight
without bracket: 15 lbs. (6.8 kg)
with bracket: 17 lbs. (7.6 kg)
Finish Bronze colored
Number of IREDs 260
Total IR output at 68°F (20 °C) 8 Wrms 16 Wpp
Total optical peak intensity 9 W/sr
Angle of half intensity ± 22°
HF input nominal 1Vpp, minimal 10 mVpp
Mains voltage 90 to 260 V, 50 to 60 Hz
Power consumption 100 W
Power consumption (standby) 8 W
Working conditions Fixed/stationary/transportable
Temperature range - transport -40 to 158 °F (-40 to + 70 °C)
Temperature range - operating 41 to 113 °F (+5 to + 45 °C)
Maximum relative humidity < 93%
According to EN 60065, CAN/CSA-E65 (Canada and US) and UL 6500
According to EN 60065, CAN/CSA-E65 (Canada and US) and UL 1419 for LBB
4511/00 and LBB 4512/00
EMC emission
According to harmonized standard EN 55103-1 and FCC rules part 15, complying
with the limits for a class A digital devices
EMC immunity According to harmonized standard EN 55103-2
EMC approvals Affixed with the CE mark
ESD According to harmonized standard EN 55103-2
Mains harmonics According to harmonized standard EN 55103-1
Environmental requirements
Contains no banned substances as specified in
UAT-0480/100 (e.g. no cadmium or asbestos)
Cabling and System Limits
System Environmental
Conditions
Safety
Physical
Electrical and Optical
Characteristics
Photographs, CAD drawings, etc. available at www.ListenTech.com.
Specifications
Warranty
Most Bosch equipment carries a 3 year limited manufacturer's warranty (excluding accessories) to be
free from defects in workmanship and material under normal use and conditions. Bosch rechargeable
batteries carry a 1 year warranty. All Bosch accessory items carry a 90-day warranty to be free from
defects in workmanship and material under normal use and conditions. Warranty does not cover
normal wear and tear on the product or any other physical damage unless the damage was the
result of a manufacturing defect. This warranty is void if damage occurred because of misuse or if the
product has been repaired or modified by anyone other than a factory authorized service center.
Contact Listen or see the Listen website for further details.

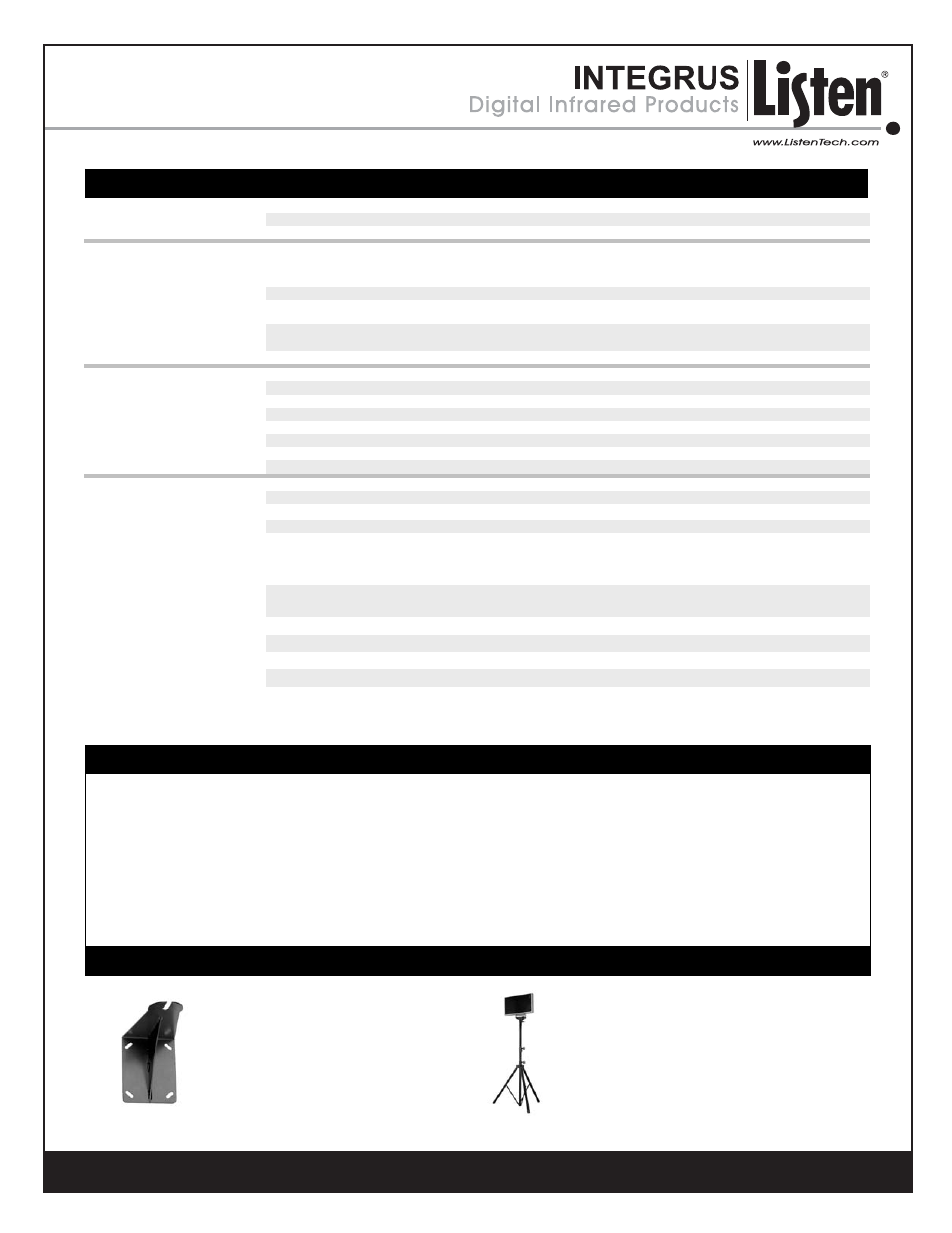

Accessories
LBB 3414/00 Integrus Wall
Mounting Bracket
Study metal bracket to mount the
Integrus Medium or High Power
Radiators to a wall.
LA-337 Integrus Radiator Stand
The Integrus Radiator Stand is a portable tri-
pod stand for the Integrus medium and high
powered radiators. Made of sturdy
aluminum and glass-reinforced
polycarbonate fittings this stand is also
lightweight enough for portable application.
