Diagnostics
Tables 2 and 3 explain the meaning of the Cajun P115G Stackable Switch diagnostic
LED indicators.

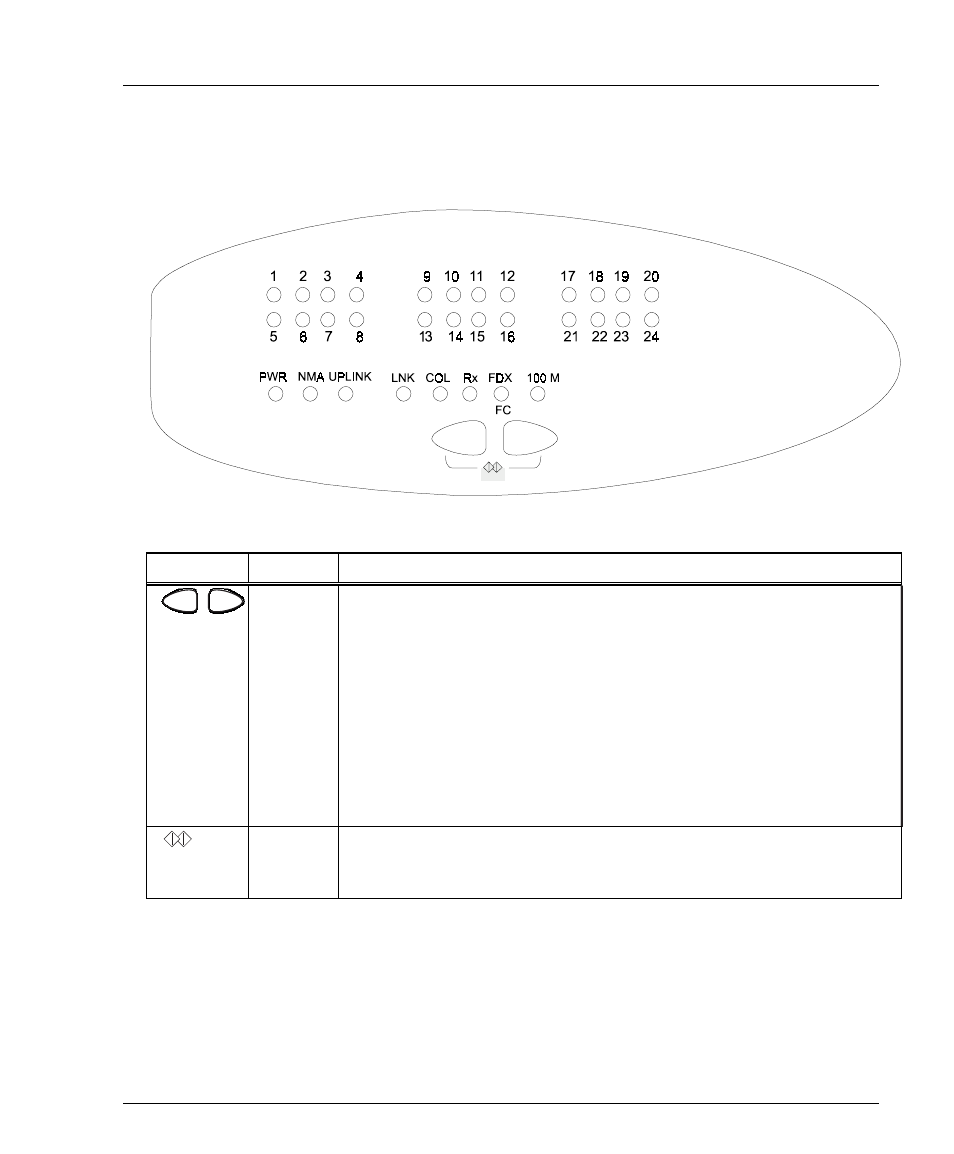

Figure 4 The Cajun P115G Stackable Switch Front Panel LEDs and Buttons
Table 2 Meaning of the Cajun P115G Stackable Switch Front Panel Buttons
Button Function Meaning
Select The buttons determine what function will be displayed by the Port
LEDs.
The five Function LEDs (above the Select buttons) show which
function is currently displayed by the Port LEDs. The Port LEDs can
display either Link, Collision, Receive, Full Duplex, Flow Control or
100 M status
If, for example, the Link (LNK) LED is lit then LEDs 1 to 24 and the
uplink LED will display the Link status of every port.
Press the left or right button to toggle the Port LED display between
functions
Reset Press and hold both buttons simultaneously for a second or more to
reset the entire Cajun P110 stack. Upon reset, all LED indicators turn
on. Resetting the unit does not affect configuration settings.
