Lenovo L1210E User Manual

Replacing the lamp

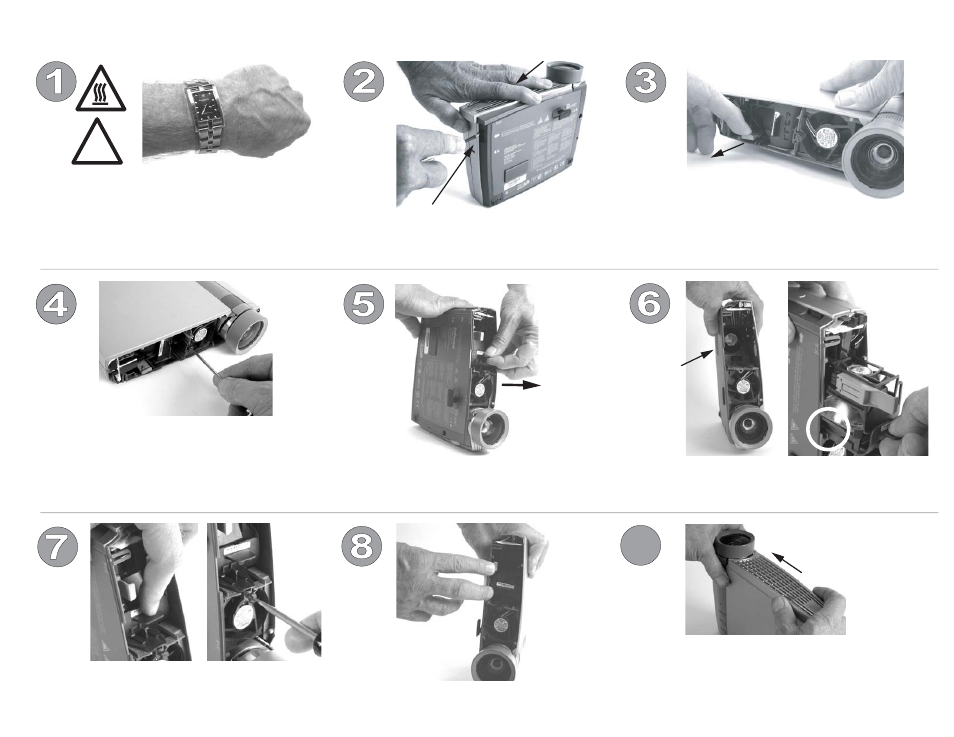

Replacing the Lamp

Allow the projector to cool for at least 60 minutes.

Turn off the projector and unplug the power cord.

Gently press the lamp into place. Then tighten
the screw.

Gently press the yellow tab inward until it stops.
You can feel the lamp connector engage.

Slide the front grill toward the lens until it snaps into
place. To reset the lamp timer, press and hold the
reset button, then press the menu/select button
(while still pressing the reset button) for 10 seconds.

*009-0563-04*

Place the projector rightside up on a flat
surface. Pull the yellow tab on the lamp outward.
This disengages the lamp connector.

Place the projector on its side. Slide the lamp into
the projector. Make sure that the bottom of the lamp
fits into the rails inside the projector (circled above).

Loosen the captive screw on the lamp.

Place the projector on its side. Grasp the pull tab to

pull the lamp out. Dispose of the lamp module in
an environmentally proper manner.

Place the projector on its rear. Insert a small screw-driver

into the slot near the front. Slide the latch downward. Hold
the latch open while you slide the lamp grill off.
