Link electronic AVS-816/VA - Manual (Page 2)

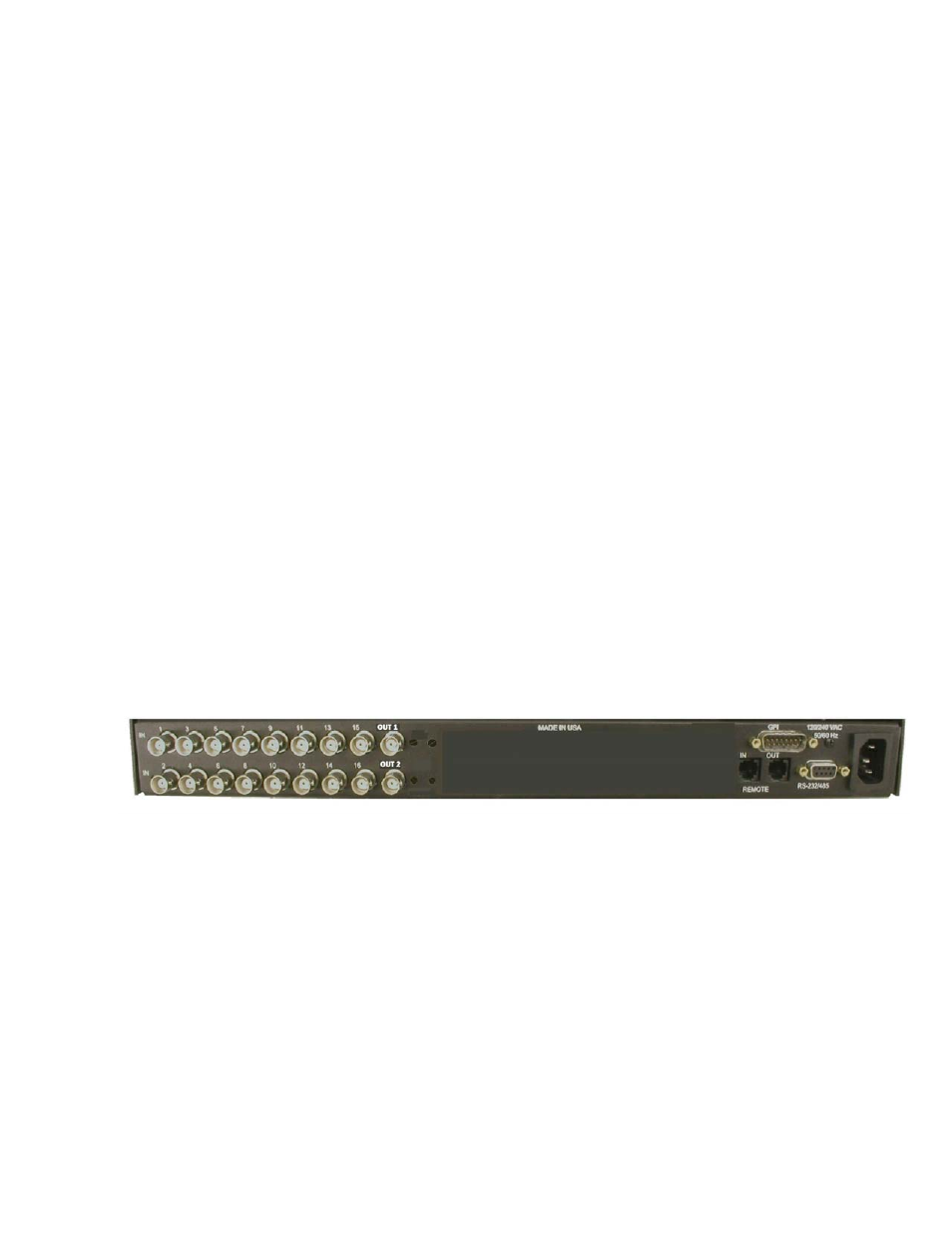

AVS-816/VA, 16 X I VIDEO SWITCHER
RS-232/RS-422 CONTROLLED
SPECIFICATIONS
ANALOG VIDEO INPUTS:
Number: . . . . . . . . . . . . . . . . . . . Sixteen (16)
Impedance: . . . . . . . . . . . . . . . . . . . 75Ω ±1%
Configuration: . . . . . . . . . . . . . . Single-ended
Level: . . . . . . . . . . . . . . . . . . . . . . . 1vpp ±3dB
Outputs:
Number: . . . . . . . . . . . . . . . . . . . . . . . Two (2)
Level: . . . . . . . . . . . . . . . . . . . Unity Gain ±1%
Impedance: . . . . . . . . . . . . . . . . . . . 75Ω ±1%
Frequency Response: . . . . . ±0.5dB to 15MHz
. . . . . . . . . . . . . . . . . . . . . . . . 3dB to 3OMHz
Differential Phase: . . . . . . . . . . . . . . . . . <0.1 E
Differential Gain: . . . . . . . . . . . . . . . . . <0.1%
Tilt: . . . . . . . . . . . . . . . . . . . . . . . . . . . <0.5%
S/N Ratio: . . . . . . . . . . . . . . . . . . . . . . >70dB
Propagation Delay: . . . . . . . . . 161lnS ±0.2nS
Crosstalk: . . . . . . . . . . . . >6OdB, Worst Case
ENVIRONMENTAL:
Temperature: . . . . . . . . . . . O E to 50E, ambient
Humidity: . . . . . . . 0% to 90% non-condensing
AUDIO INPUTS:
NO AUDIO INCLUDED
POWER:
Input: . . . . . . . . 120/240 VAC ±10% 50/60 Hz
Power: . . . . . . . . . . . . . . . . . . . . . . . . . 8 VAR
MECHANICAL:
Size:
Height: . . . . . . . . . . . . . . . . . . . . . . . . . . 1.75"
Width: . . . . . . . . . . . . . . . . . . . . . . . . . . . 19"
Depth: . . . . . . . . . . . . . . . . . . . . . . . 8.7" deep
Weight: . . . . . . . . . . . . . . . . . . . . . . . 6.8 lbs.
LINK
ELECTRONICS, INC.
2137 Rust Ave.
Cape Girardeau, MO 63703
Phone: 573 334 4433
FAX: 573 334 9255
PROFESSIONAL SERIES--
stand-alone system products--by
LINK
