NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 10

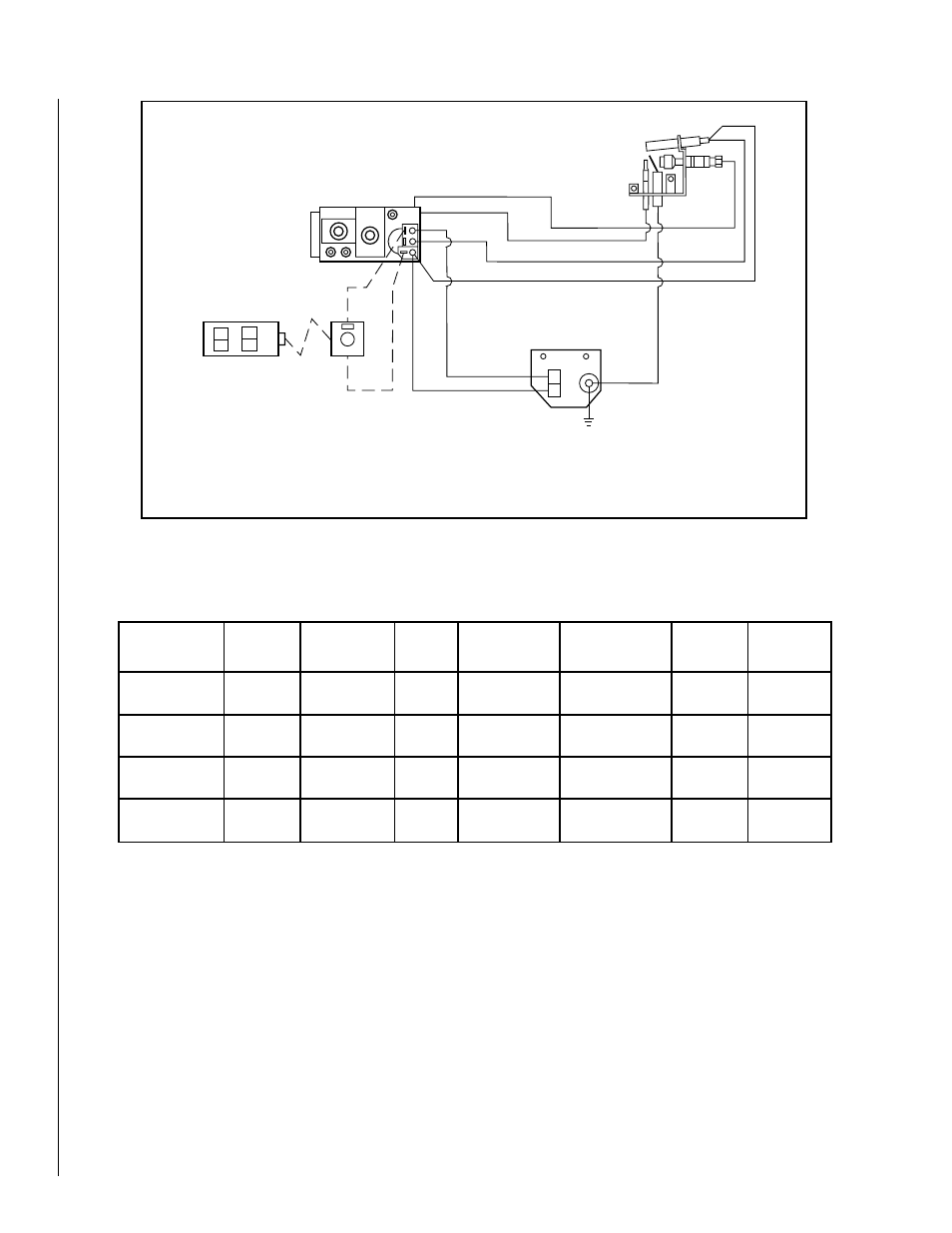

MILLIVOLT WIRING DIAGRAM
VENTED/UNVENTED GAS LOG APPLIANCE TECHNICAL CHART FOR MILLIVOLT LOG SET
BTU/HR Regulator Gas Inlet Valve
Model No. Input Gas Type Ignition Pres. Setting Pressure* Operation Orifice Size
* For the purpose of input adjustment.
SHGL - 18VN-R 36,000 Natural Piezo 1.6 – 3.5" w.c. Max. 10.5" w.c. Millivolt 0.113
24,000 Min. 5.0" w.c.
SHGL - 18VP-R 36,000 Propane/LPG Piezo 6.3 – 10.0" w.c. Max. 13" w.c. Millivolt 0.069
24,000 Min. 11" w.c.
SHGL - 24VN-R 39,000 Natural Piezo 1.6 – 3.5" w.c. Max. 10.5" w.c. Millivolt 0.119
28,000 Min. 5.0" w.c.
SHGL - 24VP-R 39,000 Propane/LPG Piezo 6.3 – 10.0" w.c. Max. 13" w.c. Millivolt 0.072
29,000 Min. 11" w.c.
PILOT (O.D.S.)
ASSEMBY
THERMOPILE
WHITE
WHITE
RED
BLACK
OFF
ON
MILLIVOLT VALVE
ON/OFF SWITCH
AND PILOT IGNITOR
OPTIONAL
REMOTE CONTROL
(MILLIVOLT)
IGNITION
WIRE
