Seat

Washers (3)

Mounting Screws (3)

AK67-00028-0000

0017-00104-0469

0017-00101-2007

Seat Post Base Guide

Mounting Screws (2)

0K67-01060-0000

0017-00101-2009

Bumper

0017-00042-1131

Seat Post Guide Cap

0K67-01059-0000

Seat Post Weldment, XXL

AK67-00003-0002

XXL Seat Post Decal

0K67-01089-0000

Up/Down Latch

Up/Down Spring

Latch Pivot Pin

0K67-01009-0000

0K67-01010-0000

0K67-01017-0000

Up/Down Handle

Handle Pivot Pin

E-rings (3)

Up/Down Rod, XXL (not shown)

0K67-01014-0000

0K67-01011-0000

0K67-01062-0000

0017-00100-0250

0K67-01008-0001
Rod Pins (2, not shown)

Seat Post Shroud

Mounting Screws (2)

located under seat:

0K67-01067-0000

0017-00101-2010

Elevation Upright XXL Bikes

97C-ALLXX-01

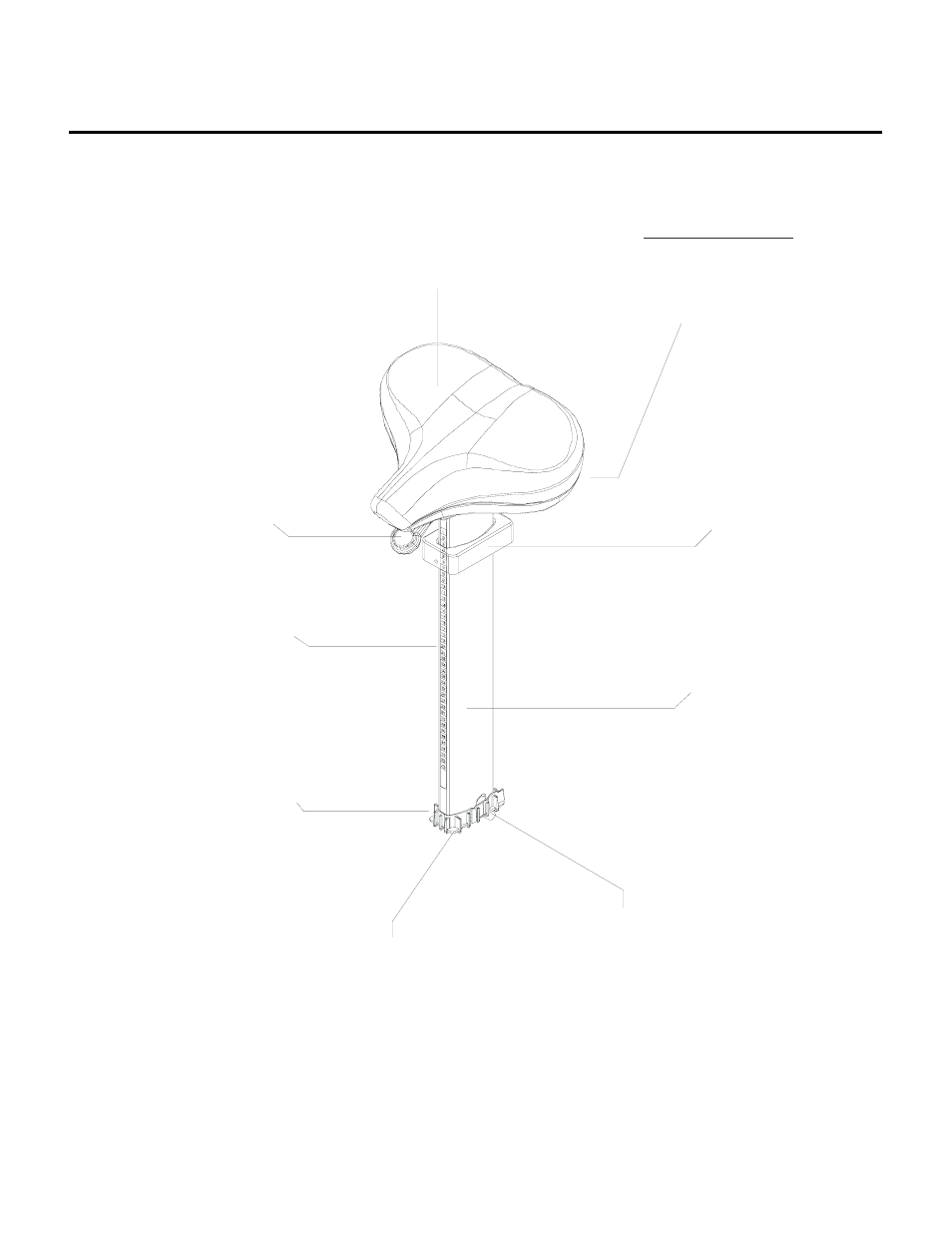

Seat and Seat Post Components

S/N ___100000 and up
