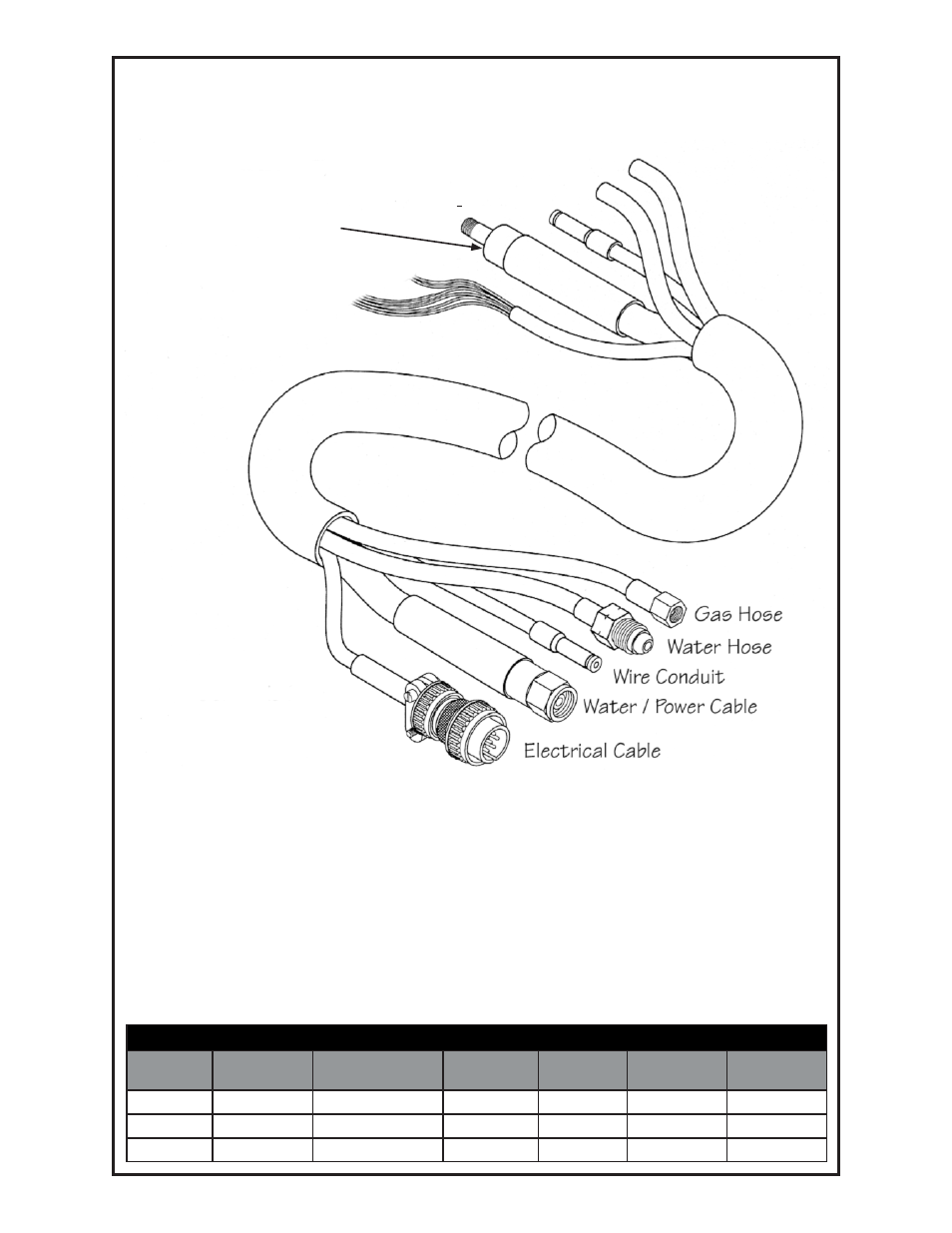

Water Cooled Lead Assembly*
*Leads shown for reference only
This power cable has a boot
that is common to many
assemblies but must be
removed from this end
when used on the
CobraMAX™.
TORqUE REqUIRES
100+5 IN-LB
228 Series Ultra-Flex Cable Assemblies
Length
Conduit
#4 Power/Water
Cable
Electrical
Cable
Gas Hose
Water Hose
Snake Skin
®
15'/4.5m 615-0601-15
001-2521
005-0690
001-0537
001-0529
931-0110
25'/7.6m 615-0601-25
001-2524
005-0691
001-0538
001-0530
931-0122
50'/15.2m 615-0601-50
843-0338
005-0692
001-0665
001-0667
931-0123
