STEP 6:

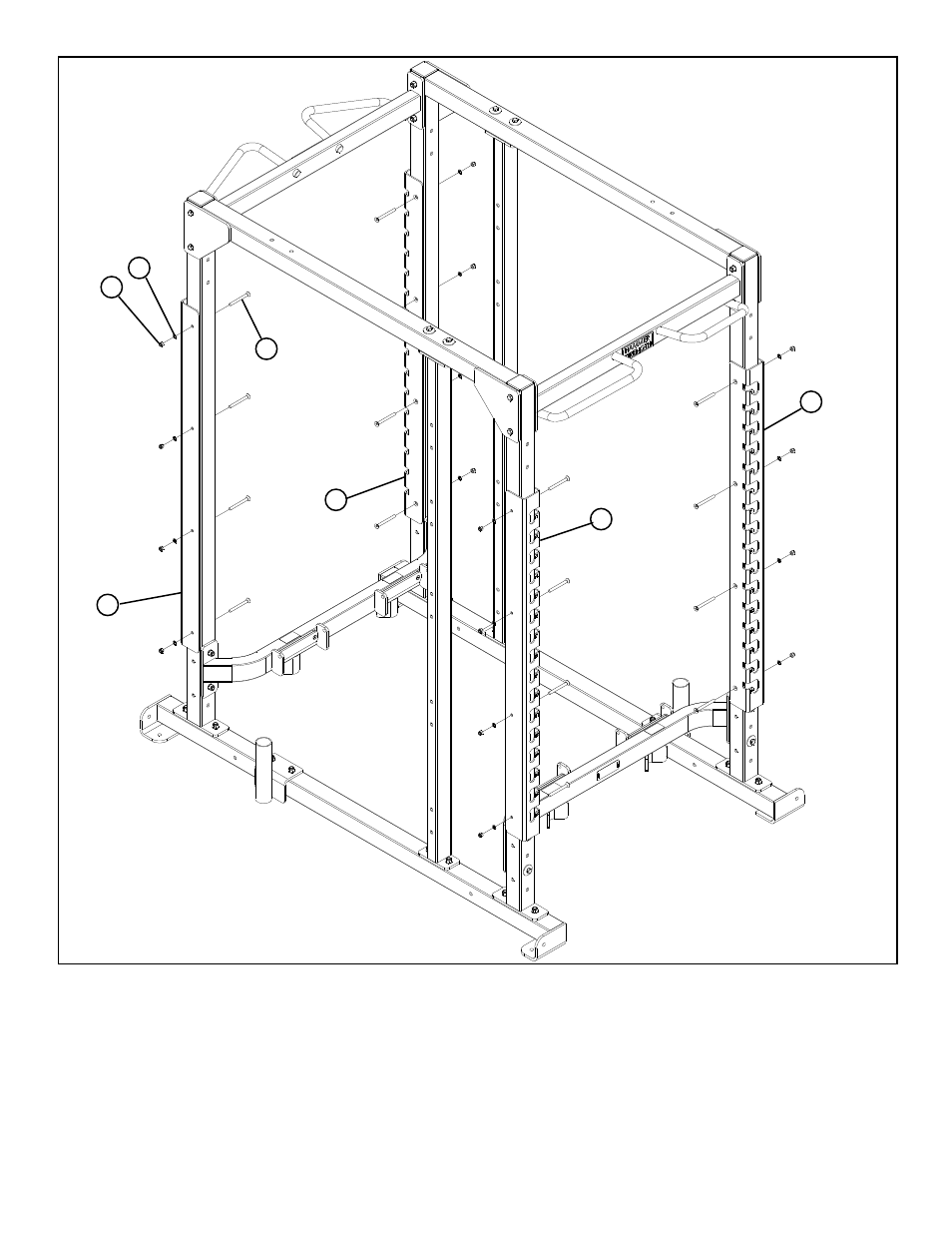

FIGURE 6
22
23
21
9
10
3/8 X 3-3/4”
• Assemble the four ADJUSTABLE RACKS (9 &10) as show, using sixteen 3/8 X 3-3/4” FLAT HEAD BOLTS (21)
sixteen 3/8” INT TOOTH LOCK WASHERS (22) and sixteen 3/8” LOCK NUTS (23) as shown in FIGURE 6.
