NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 7
Figure 14
Figure 15 Figure 16

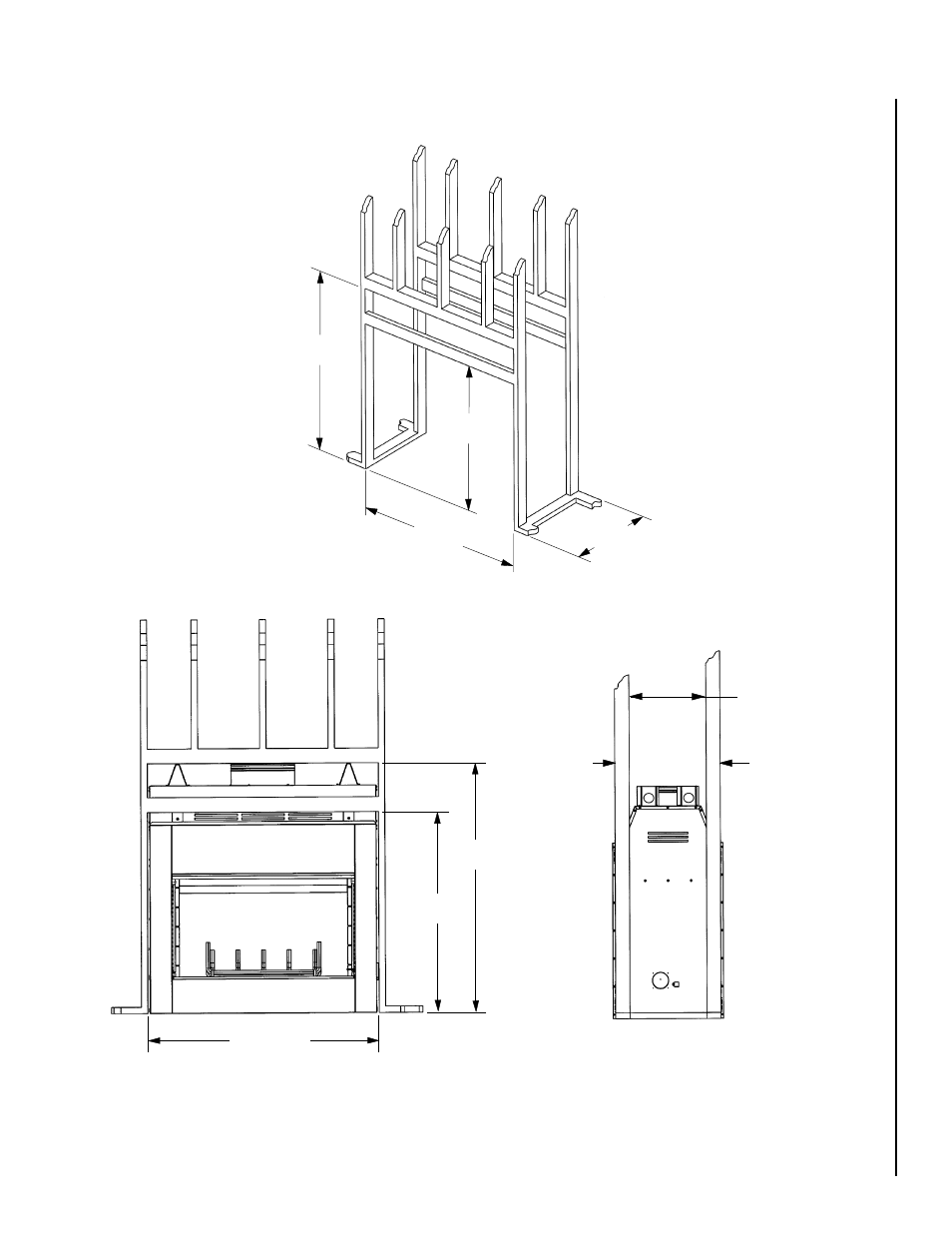

FRAMING SPECIFICATIONS
26 ¹⁄₄"
(667 mm)
54 ³⁄₄"
(1391 mm)
58 ⁵⁄₈"
(1490 mm)
47 ¹⁄₈"
(1197 mm)
47 ¹⁄₈"
(1197 mm)
58 ⁵⁄₈"
(1490 mm)
Front View
54 ³⁄₄" (1391 mm)
19 ¹⁄₄" (489 mm)
Allow 19” For
Clearance
26 ¹⁄₄" (667 mm)
For ⁵⁄₈" Drywall
26 ¹⁄₂" For
¹⁄₂" Drywall
Side View
