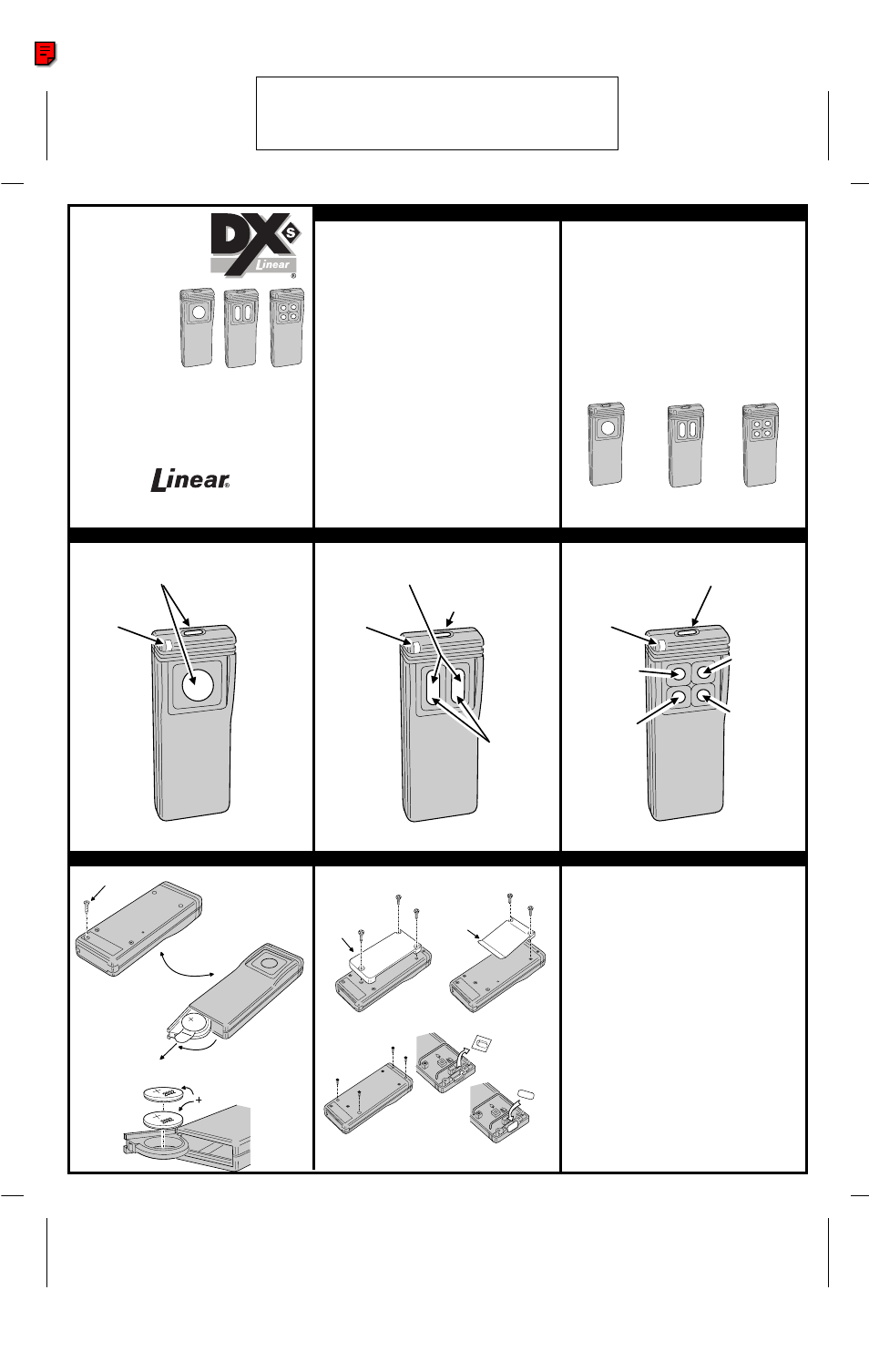

INSTR, INST, DXS-21/ DXS-23,/DXS-25
LINEAR P/N: 215593 B
MATERIAL: 20 LB. MEAD BOND
SIZE: 8.500" X 11.000"
INK: BLACK
SCALE: 1-1

DXS-21
DXS-23
DXS-25

SUPERVISED
HANDHELD
TRANSMITTERS

Operation Instructions

PRODUCT DESCRIPTION

The DXS-21, DXS-23 and DXS-25 are supervised, digitally coded
radio transmitters designed for use with Linear’s DX and DXS Format
receivers. Pressing a button on the transmitter sends a digitally coded
wireless signal to its companion receiver. To send a complete signal,
press the transmitter button for a minimum of 2 seconds.
The digital DXS code format features over a million possible codes. The
DXS transmitters are precoded at the factory to unique codes, so no field
coding is required. The multi-button transmitters send variations of their
preset codes depending on which buttons are pressed. Transmitters can
send a signal for up to 10 seconds per activation.
The transmitters are supervised for low battery and send hourly status
reports. Some receivers are able to use these signals, others are not.
Receivers must be programmed to the transmitter code before system
testing and operation. Refer to the receiver’s instructions for details
on operation and programming.
Each transmitter is powered by two self-contained type 2032 3-volt
lithium batteries (included). When the batteries voltage gets low, a low
battery report is sent with any alarm or status report to notify the
receiver. The red LED will blink when the transmitter is activated with
low batteries.
A removable pocket clip and belt clip are provided for each transmitter.
Either can be attached to the back of the transmitter allowing the unit
to be clipped to shirt pocket or slid onto a belt.
The top button on each transmitter can be hidden with the top
button cover supplied with each unit.

TRANSMITTER CONFIGURATIONS

DXS-21

The DXS-21 is a two-button, one-code transmitter. Pressing either the
round button on the transmitter’s front, or the small button on the
transmitter’s top will send the same signal.

DXS-23

The DXS-23 is a three-button, four-code transmitter. Pressing either
of the transmitter’s front buttons sends codes one and two. Pressing
the small button on the transmitter’s top sends code three. Pressing
both front buttons together sends code four.

DXS-25

The DXS-25 is a five-button, eight-code transmitter. Pressing any of
the transmitter’s front buttons sends codes one through four. Holding
down the small button on the transmitter’s top together with pushing
with any of the front buttons sends codes five through eight.

DXS-21 FEATURES

DXS-23 FEATURES

DXS-25 FEATURES

BATTERY REPLACEMENT

POCKET & BELT CLIP/TOP BUTTON COVER

LINEAR LIMITED WARRANTY

This Linear product is warranted against defects in material and workmanship for twelve
(12) months. The Warranty Expiration Date is labeled on the product. This warranty
extends only to wholesale customers
who buy direct from Linear or through Linear’s
normal distribution channels. Linear does not warrant this product to consumers.
Consumers should inquire from their selling dealer as to the nature of the dealer’s
warranty, if any. There are no obligations or liabilities on the part of Linear
Corporation for consequential damages arising out of or in connection with use
or performance of this product or other indirect damages with respect to loss of
property, revenue, or profit, or cost of removal, installation, or reinstallation.
All
implied warranties, including implied warranties for merchantability and implied
warranties for fitness, are valid only until Warranty Expiration Date as labeled on the
product. This Linear Corporation Warranty is in lieu of all other warranties express
or implied.

All products returned for warranty service require a Return Product
Authorization Number (RPA#). Contact Linear Technical Service at
1-800-421-1587 for an RPA# and other important details.

IMPORTANT !!!

Linear radio controls provide a reliable communications link and fill an important need
in portable wireless signalling. However, there are some limitations which must be
observed.
✶ For U.S. installations only: The radios are required to comply with FCC Rules and

Regulations as Part 15 devices. As such, they have limited transmitter power and
therefore limited range.

✶ A receiver cannot respond to more than one transmitted signal at a time and may

be blocked by radio signals that occur on or near their operating frequencies,
regardless of code settings.

✶ Changes or modifications to the device may void FCC compliance.

✶ Infrequently used radio links should be tested regularly to protect against

undetected interference or fault.

✶ A general knowledge of radio and its vagaries should be gained prior to acting as

a wholesale distributor or dealer, and these facts should be communicated to the
ultimate users.

Copyright © 2001 Linear Corporation

215593 B

(760) 438-7000 • FAX (760) 438-7043

USA & Canada (800) 421-1587 & (800) 392-0123

Toll Free FAX (800) 468-1340

www.linearcorp.com

BY

DXS-21

DXS-23

DXS-25

PRESS EITHER BUTTON
TO SEND CODE 1

RED INDICATOR
LIGHTS WHEN
TRANSMITTING

PRESS BUTTONS FOR A
MINIMUM OF 2 SECONDS

PRESS LEFT BUTTON FOR CODE 1
PRESS RIGHT BUTTON FOR CODE 2

RED INDICATOR
LIGHTS WHEN
TRANSMITTING

PRESS TOP BUTTON
FOR CODE 3

PRESS BOTH
FRONT
BUTTONS FOR
CODE 4
(FOR ADDED
SECURITY)

PRESS BUTTONS FOR A
MINIMUM OF 2 SECONDS

RED INDICATOR
LIGHTS WHEN
TRANSMITTING

USE TOP BUTTON AS "SHIFT"
KEY, PRESS TO SELECT CODES
5, 6, 7 & 8 WITH FRONT BUTTONS

PRESS FOR
CODE 3 (& TOP
FOR CODE 7)

PRESS FOR
CODE 1 (& TOP
FOR CODE 5)

PRESS FOR
CODE 4 (& TOP
FOR CODE 8)

PRESS FOR
CODE 2 (& TOP
FOR CODE 6)

PRESS BUTTONS FOR A
MINIMUM OF 2 SECONDS

REMOVE BATTERY
ACCESS SCREW

SWING BATTERY
COMPARTMENT OPEN

FLIP
TRANSMITTER
OVER

REPLACE
WITH TWO
TYPE 2032
BATTERIES

SIDE UP

PULL BATTERY
PROTECTION
STRIP OUT
PRIOR TO USE

BELT
CLIP

ATTACH WITH
THREE SCREWS

POCKET
CLIP

ATTACH WITH
TWO SCREWS

REMOVE FOUR
SCREWS TO
OPEN CASE

REMOVE
TOP BUTTON

REPLACE WITH
COVER PLATE

INSTALLING TOP BUTTON COVER PLATE

INSTALLING TRANSMITTER CLIPS
