Idler arm assembly – Life Fitness TR95 User Manual
Page 12
Page 12 of 18
TR95
Treadmill TR95S-0070-30
Idler
Arm
Assembly

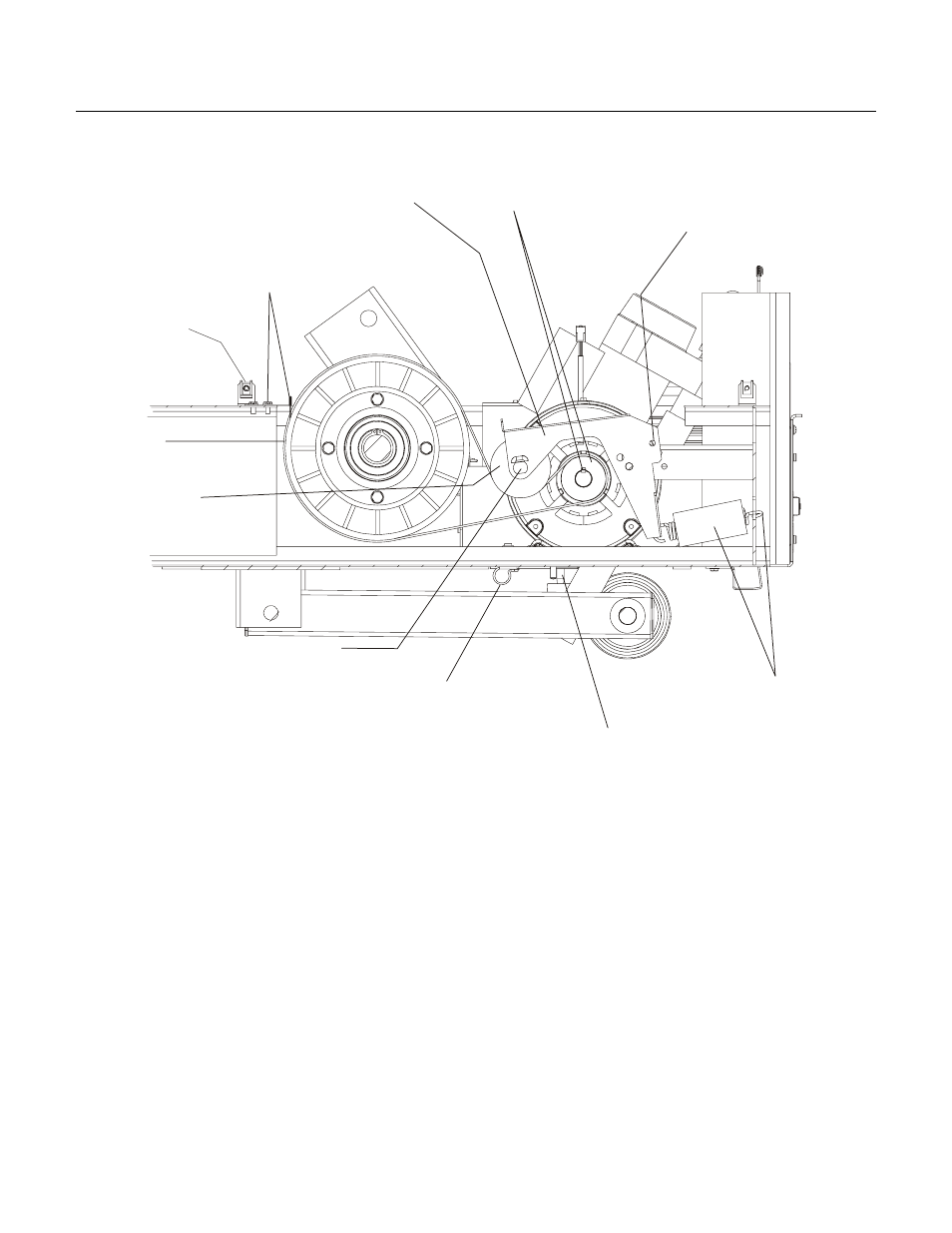

Idler Arm Assembly
AK58-00053-0002
Idler Pin
0017-00007-0248
Idler Spring Damper
0K26-02055-0000
Idler Spring
0k58-01085-0000
Wire Clamp
0017-00042-1072
Screw
(10-32x6)
0017-00101-1193
Limit Switch
0017-00032-0195
Limit Switch Cable
Allen Screw
0017-00101-0333
Motor Pulley
0K58-01057-0001
Tinnerman Clip
0017-00103-0280
Drive Belt
0K58-01114-0000
Pulley: Idler
0K26-01731-0000
Threaded Shaft: Idler
0K58-01084-0002
Lock Nut: Idler
0017-00103-0324
Tinsel Bracket
0K58-01263-0001
Tinsel Bracket Screw(2)
0017-00101-1193
