HT601
1 Left Side Extrusion Rail 05-0036
2 Right Side Extrusion Rail 05-0036
3 Treadmill Belt 04-0025
4 Front Roller Assembly 24-0218
5 Rear Roller 09-0013
6 Treadmill Deck 03-0011
7 End Cap (L/R) 06-0008
8 Elevation Motor (actuator) 12-0022
9 3 Piece Bottom Motor Pan 06-0018
06-0019
06-0020
10 Small Fan 06-0080
11 Motor 12-0023
12 Poly V Belt 04-0004
13 Motor Hood Cover Top 06-0105
15&16 Console Assembly 24-0249
19

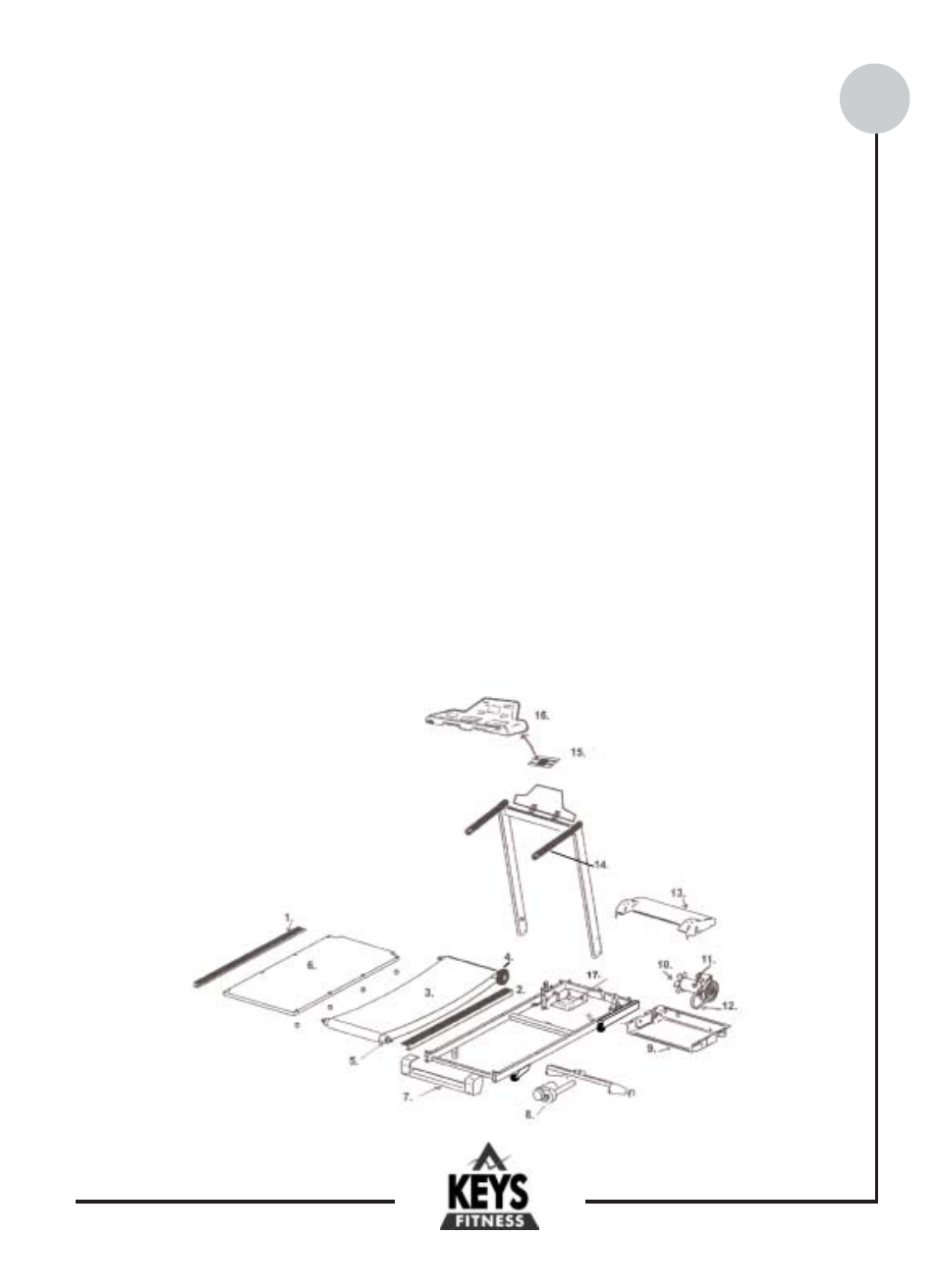

Please review the following drawing below to familiarize yourself with the listed parts. This man-
ual covers several treadmills, so the one pictured below may not be identical to your particular
model.
Parts & Diagrams
