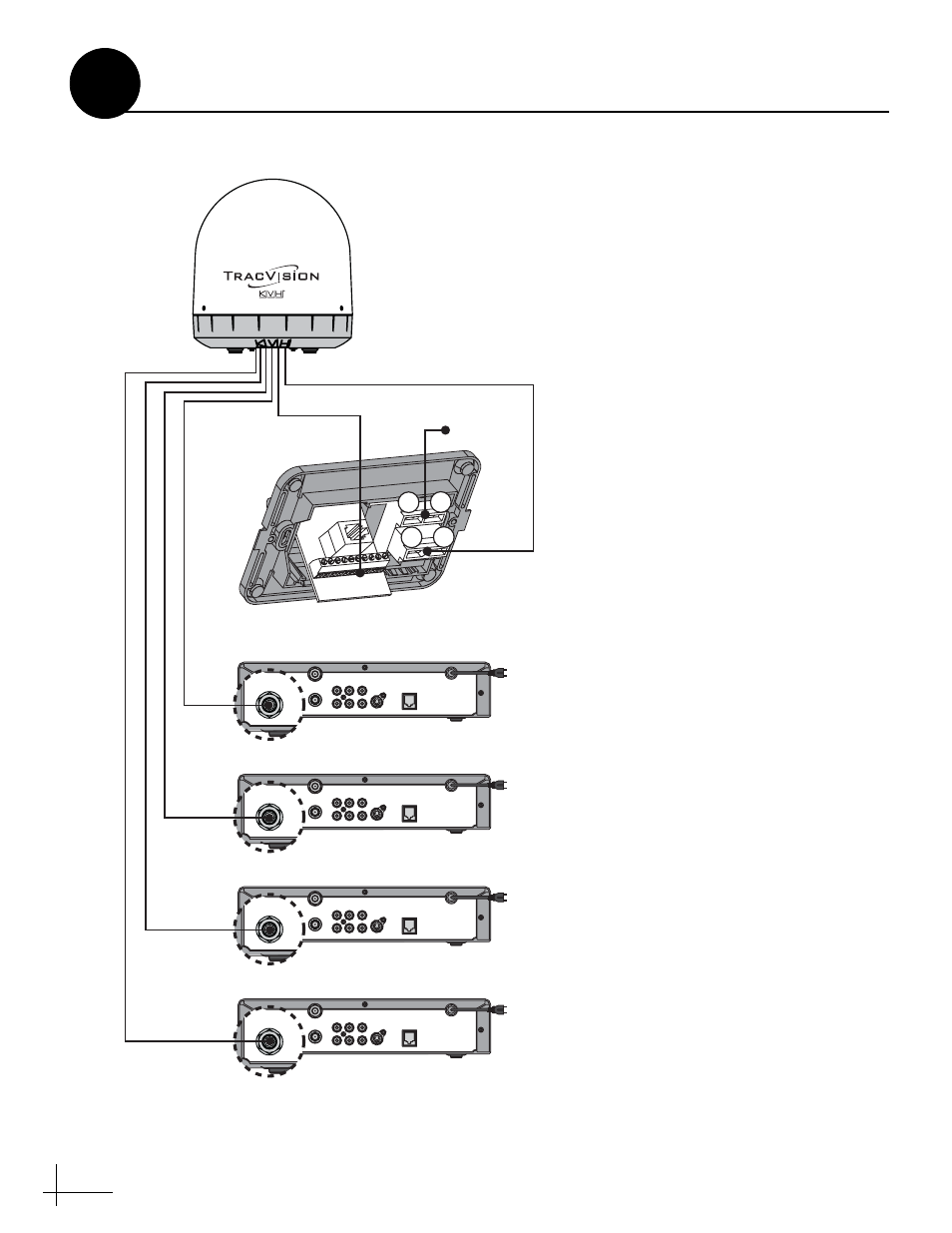

Wiring Three or Four Receivers (Linear Quad)
Continued...
D
Antenna
Receiver #2
SATELLITE IN
OUT TO TV
TV ANT/CABLE IN
AUDIO
VIDEO
S-VIDEO
PHONE JACK
R
L
SATELLITE IN
Receiver #1 (Primary)
SATELLITE IN
OUT TO TV
TV ANT/CABLE IN
AUDIO
VIDEO
S-VIDEO
PHONE JACK
R
L
SATELLITE IN
Receiver #3
SATELLITE IN
OUT TO TV
TV ANT/CABLE IN
AUDIO
VIDEO
S-VIDEO
PHONE JACK
R
L
SATELLITE IN
Receiver #4
SATELLITE IN
OUT TO TV
TV ANT/CABLE IN
AUDIO
VIDEO
S-VIDEO
PHONE JACK
R
L
SATELLITE IN
RF2
RF1
RF3
RF4
+
–
+
–
Switchplate
+12 VDC
Data
Power
