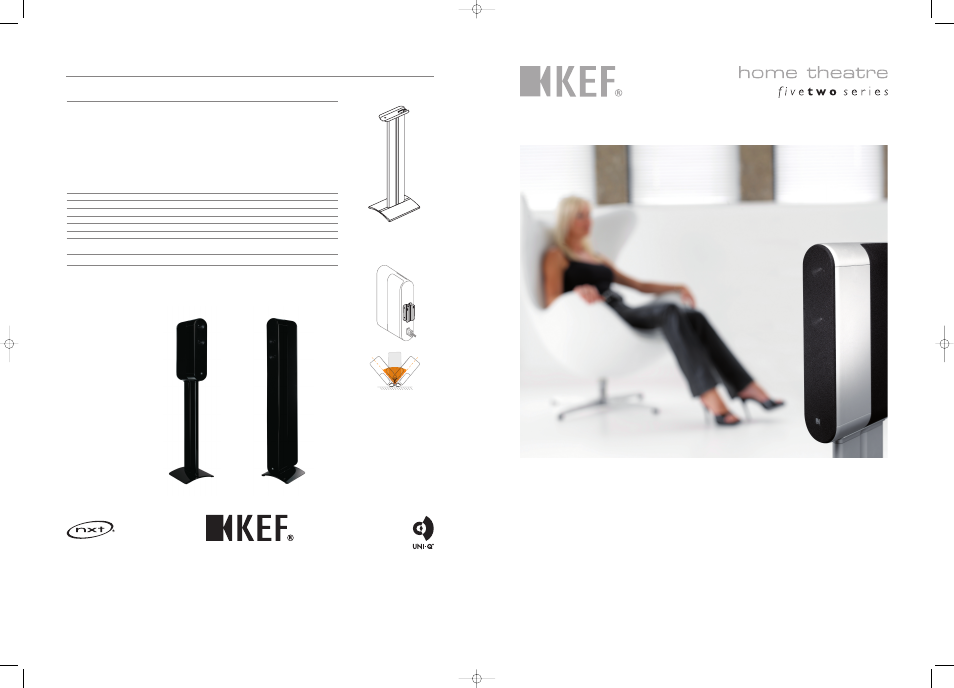

KEF Audio PL1630EN User Manual

Surround yourself with sound, not speakers

PL1630EN

Floor Stand

for model 7 satellite

Wall Bracket

The wall bracket is simple
and unobtrusive.

model 7

model 11

Design

Surround sound speaker

Drive units

7 Speaker drivers, comprising:

11 Speaker drivers, comprising:

Dedicated Centre Channel

1 x 75mm (3in.) Uni-Q array with

1 x 15mm (0.6in.) HF

1 x 75mm (3in.) LF

Front Left/Right Channel

1 x 75mm (3in.) Uni-Q array with

1 x 15mm (0.6in.) HF

2 x 75mm (3in.) LF

4 x 75mm (3in.) LF

Rear Left/Right Channel

1 x Vertical Flat Panel

2 x Vertical Flat Panel

Frequency range

100Hz - 30kHz

90Hz - 30kHz

Magnetic shielding

Yes

Sensitivity (2.83V/1m)

87dB

Maximum output (SPL)

104dB

109dB

Impedance

8 ohms

Weight

3.85kg (8.5lbs)

11.3kg (24.9lbs)

Dimensions

400 x 104 x 230 mm

1020 x 210 x 230 mm

(H x W x D)

(15.7 x 4.1 x 9.1 in.)

(40.2 x 8.3 x 9.1 in.)

Cabinet finishes

Matt Silver or High Gloss Black

Connectors

Supplied with connection for any 5.1

home theatre receiver/amplifier

(Cable for connection to KEF KIT100/200 available separately)

Specifications

Optional Accessories

www.kef.com

Allows a rotation
of 80 degrees

KEF Audio (UK), Eccleston Road,Tovil, Maidstone, Kent, ME15 6QP U.K. Telephone: + 44 (0)1622 672261 Fax: + 44 (0)1622 750653

KEF America, Inc. 10 Timber Lane, Marlboro, New Jersey 07746 U.S.A. Telephone: +(1) 732 683 2356 Fax: +(1) 732 683 2358

GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Telephone: +49 (0) 231 9860-320. Fax: +49 (0) 231 9860-330

GP Acoustics (France) SAS, 39 Rue des Granges Galand - BP414, 37554 Saint Avertin CEDEX, France. Tel : +33(0)2 47 80 49 01 Fax : +33(0)2 47 27 89 64

KEF and Uni-Q are registered trademarks. Uni-Q is protected under GB patent 2 236929, U.S. Pat. No. 5,548,657 and other worldwide patents.

KEF reserve the right, in line with continuing research and development, to amend or change specifications.
