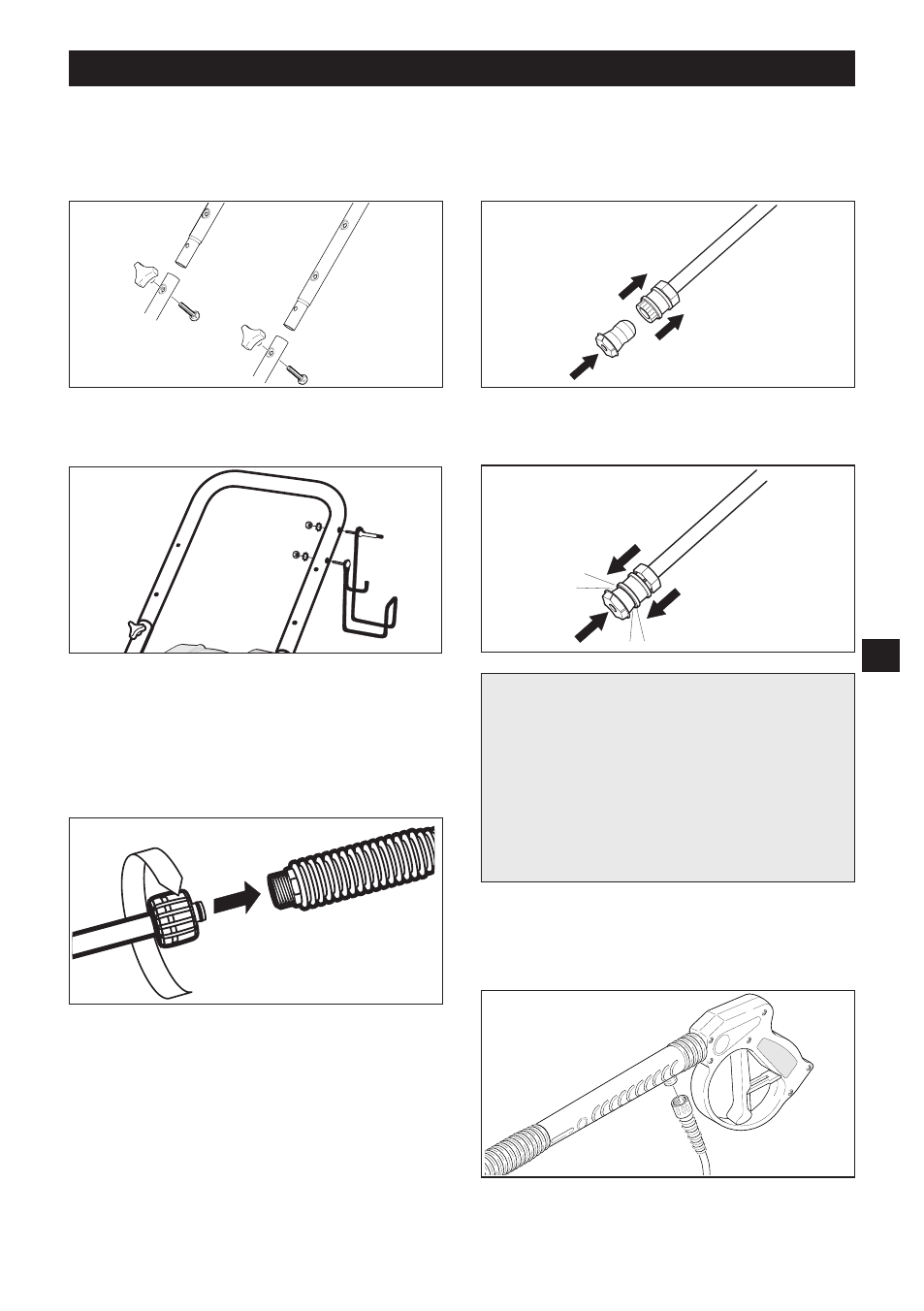

ASSEMBLY INSTRUCTIONS
Step 1
Attach the handle to the frame of the
pressure washer. Align holes, insert bolts,
and tighten with knobs.
Step 2
Attach the gun/hose storage handle.
Step 3
Place the quick connect nozzles in the
nozzle holder.
Step 4
Attach the wand to the spray gun.
Step 5
Pull the spring-loaded collar of the wand
back to insert your choice of quick connect
nozzle.
Step 6
Release the collar and push the nozzle until
the collar clicks.
DANGER
High pressure in nozzle area.
Risk of injury caused by improper locked
nozzle.
• Make sure you hear a ‘click’ when
inserting the nozzle tip into the wand.
• Pull the nozzle to make sure it is seated
properly before operating your unit.
Step 7
Attach the high pressure hose to the spray
gun.
Step 8
Prior to initial startup, cut off tip of oil
reservoir cap.
