Parts Identifier

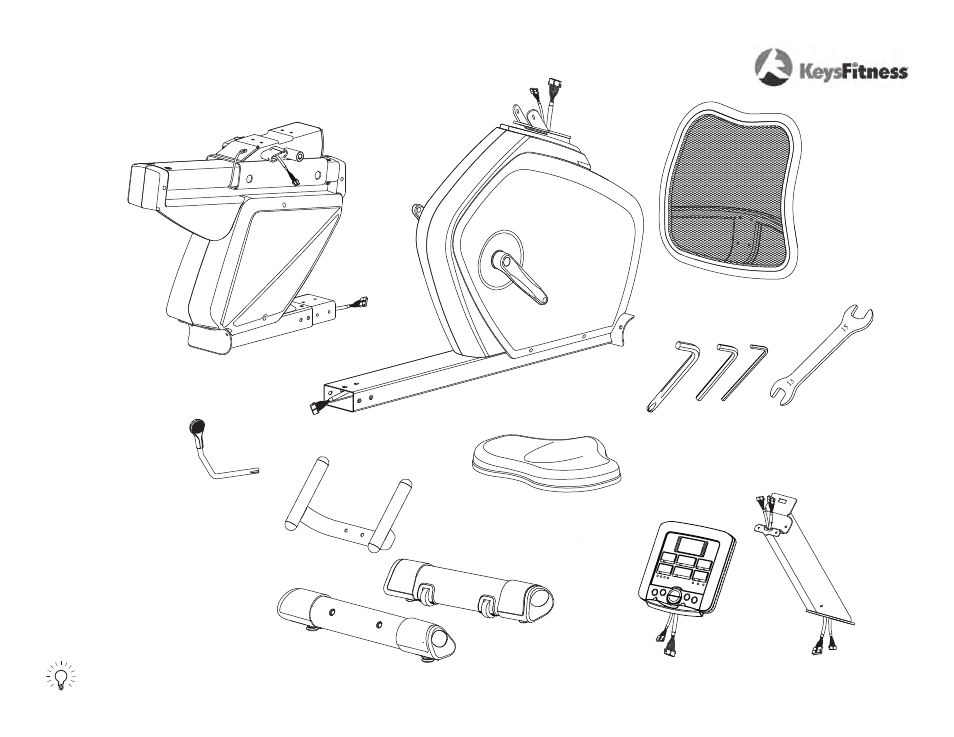

Prior to assembly, remove components from the box and verify that all the listed parts were supplied.
B
E
G
A2
H
C
D
Tools
F
Rear Main frame
Front Main frame
Back Rest
Seat
Upright
Handlebar
Front Stabilizer
Console
Upright post
Rear stabilizer
Seat Slide
Adjustment Handle
A1
A11
6mm 5mm 3mm
15mm
13mm
