The 'Look-up Table x' menu
This menu is used for loading one of the three user-specific look-up tables in the camera to the host
system, and loading, or saving, user-specific look-up tables (LUT) from the host system (PC/IPC) to
the camera.
The user can enter the desired LUT name in
the 'Name' field. All upper-case and lower-case
letters and numerals as well as the separating
character '_' are available for the purpose.
The buttons under 'Actions' allow the user to
choose from the following LUT functions:
•
Read
→
The selected LUT is transferred
from the camera to the host system (PC/IPC),
and the function values are displayed under
'Lookup table contents'. By clicking button
'Save', the transferred LUT can be saved as a
text file in the host system (PC/IPC).
•
Load
→
A LUT (text file) in the host system
is selected to be transferred to the camera.
When the button is pressed, the standard
Windows

dialog 'Load LUT from ...' is opened,
and the user can choose the desired file (in the
.TXT format). Clicking the 'Write' button
transfers the selected LUT to the camera.
•
Save / Write
→
A LUT transferred from the
camera is saved as a text file in the host
system LUT ('Save'), or a LUT is transferred
from the host system (PC/IPC) to the camera
('Write'). When clicking 'Save', the standard
Windows

dialog 'Save LUT to ...' is opened,
and the user can name the desired .TXT file.
Note that the inscription and function of the
'Save/Write' button will not be visible and
active, respectively, until the 'Read' or 'Load'
button is pressed.

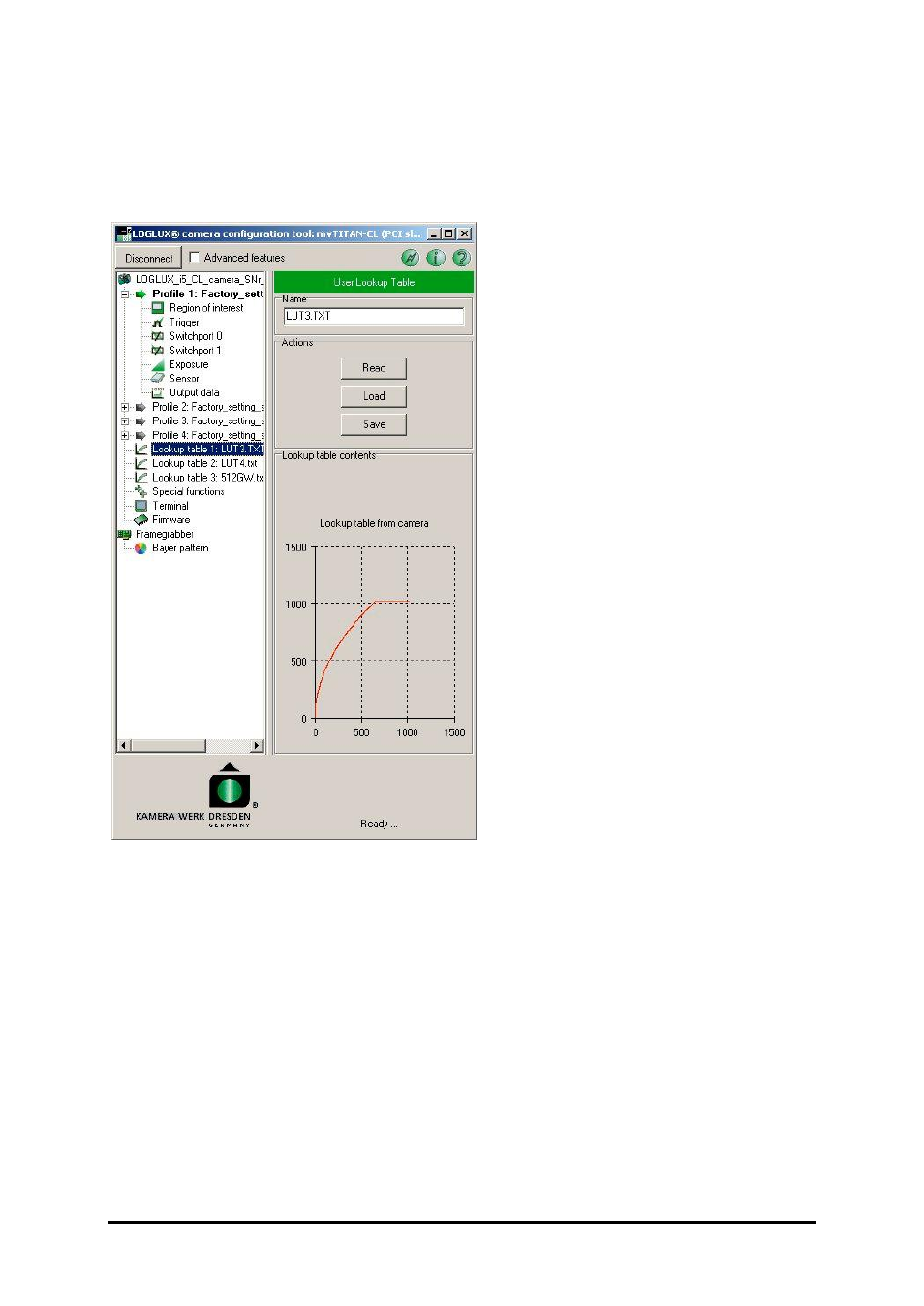

Figure 20 : The 'Look-up table x' menu
