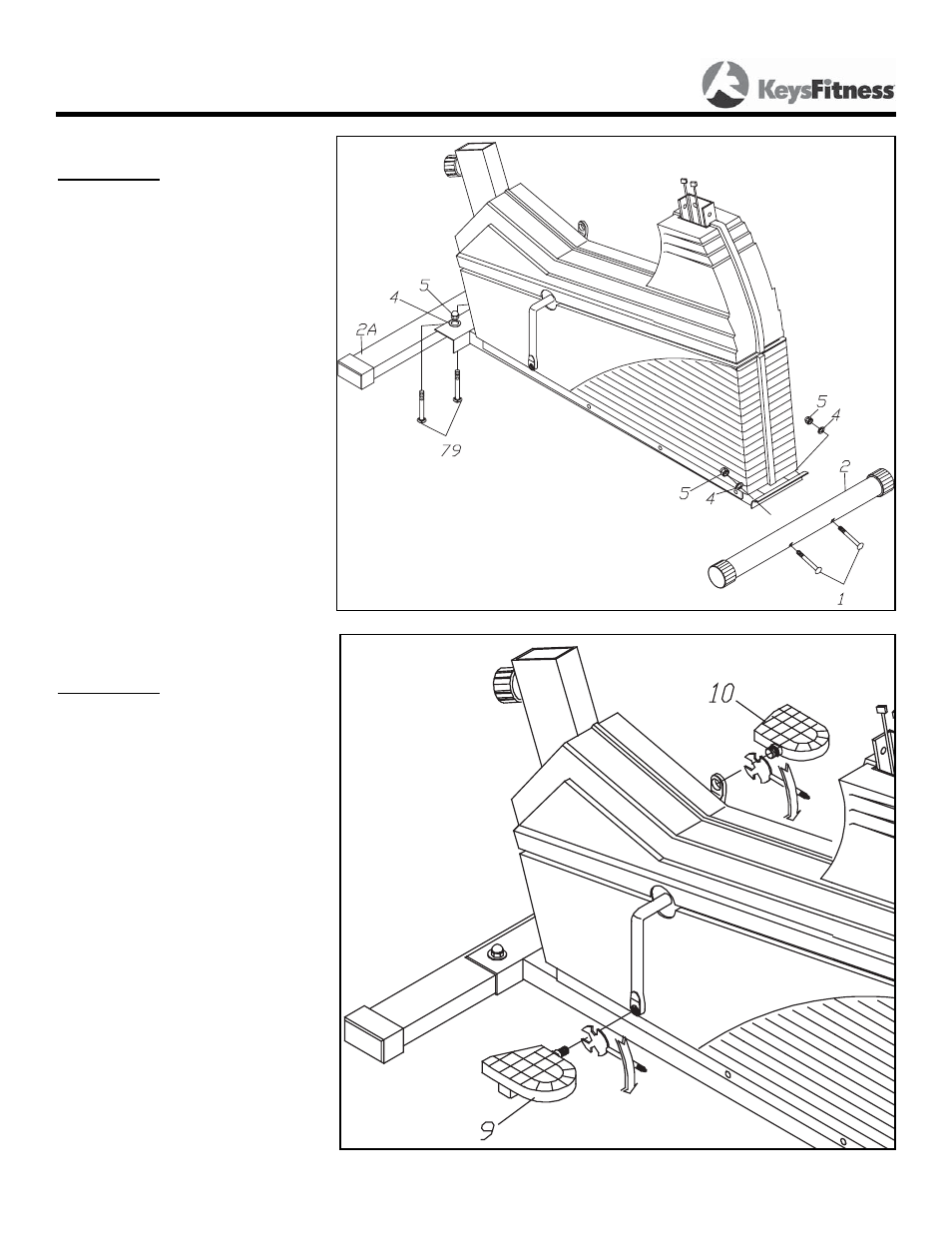

FIGURE 1
Step 1:
Attach Rear Foot Tube (2A) to
Main Frame with two Bolts (1), two
Washers (4) and two Cap Nuts (5).
Step 2:
Attach Front Foot Tube (2) with
two Bolts (1), two Washers (4) and
two Cap Nuts (5).
FIGURE 2
Step 1:
Thread the Right Pedal (9) into the
right crank area of Main Frame.
Secure in place by turning it clock-
wise to tighten.
Note: Right Pedal (9) is marked
with an “R”.
Step 2:
Thread the Left Pedal (10) into the
left crank area of Main Frame (1).
Secure in place by turning it count-
er-clockwise to tighten.
Note: Left Pedal (10) is marked
with an “L”
Assembly
6
Figure 2
Figure 1
