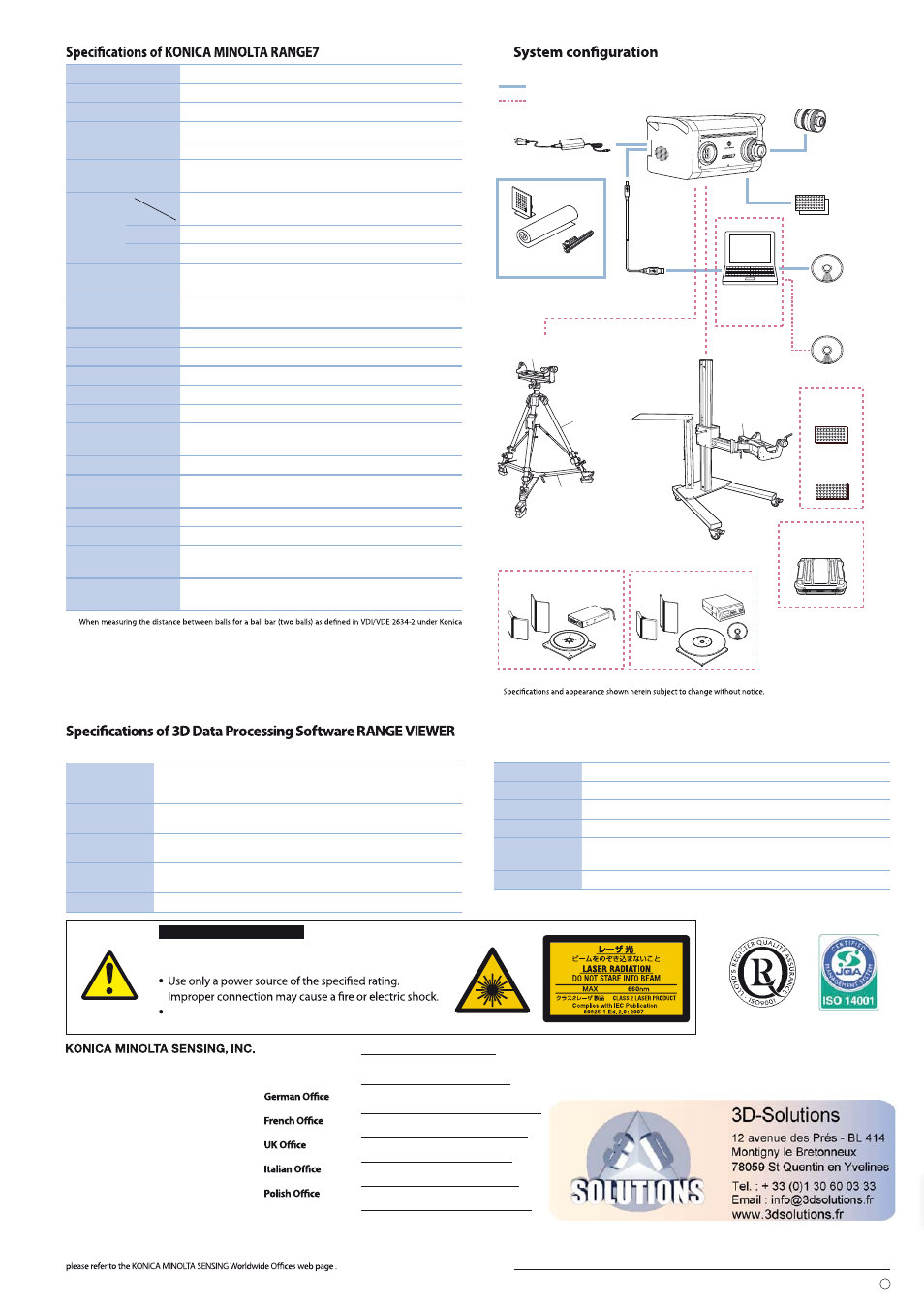

Measuring method
Triangulation by light sectioning method
Light source
Semiconductor laser, Wavelength: 660 nm
Laser class
Class 2 (IEC 60825-1 Edition 2)
Number of pixels taken
1.31 megapixels (1280 x 1024)
Measurement distance
450 to 800 mm
Receiving lens
(interchangeable)
TELE, WIDE
Measure-
ment
range
(mm)
TELE
450 mm
TELE
800 mm
WIDE
450 mm
WIDE
800 mm
X × Y
79Ч99
141Ч176
150Ч188
267Ч334
Z
54
97
109
194
XY direction
measurement interval
0.08
0.14
0.16
0.28
Accurac y (Distance
between balls)*
1
±40μm
Precision (Z, σ)*
2
4μm
Auto-focus
Provided
Auto-exposure
Provided
Scan time
Approx. 2 sec. or more (1 scan)
Preview function
Approx. 0.4 sec./scan
Scanning ambient
lighting condition
500 lx or less
Output interface
USB 2.0 High Speed
Power
Included AC Adapter
Input voltage: 100 to 240 VAC (50/60 Hz), Rating: 1.4 A (at 100 VAC input)
Dimensions
295 (W) x 190 (H) x 200 (D) mm (Excluding grips and lens)
Weight
Approx. 6.7 kg
Operating tempera-
ture/humidity range
10 to 40°C; Relative humidity 65% or less (no condensation)
S t o r a g e t e m p e r a -
ture/humidity range
-10 to 50°C; Relative humidity 85% or less
(at 35°C, no condensation)
*1
Minolta Sensing measurement conditions.
Konica
Minolta
Sensing
measurement
conditions:
Temperature: 20±1°C; Lens: TELE; Measurement distance: 450
mm; Warm-up: 20 min.; Software used: Konica Minolta processing software; After calibration of the instrument;
Measurement target: Konica Minolta standard target (2 balls); Arrangement of measurement target: Konica Minolta
standard arrangement (10 positions inside measurement space); Uncertainty of standard target not included.
*2 Measurement conditions: Temperature: 20±1°C; Lens: TELE; Measurement distance: 450 mm; Warm-up: 20 min.; Mea-
surement target: Konica Minolta standard planar chart; Software used: Konica Minolta processing software; 1 σ value
*3 Using
Konica
Minolta
processing
software
Readable data
formats
Readable data formats
Konica Minolta proprietary formats: .rgv (Single-scan data group), .rvm
(more than one piece of data)
Data output
STL (binary), ASCII point group
Konica Minolta proprietary formats: .rgv, .rvm
M e a s u r e m e n t
functions
Monitor image, Preview, AF/AE, Measurement
Control of rotating stage (Konica Minolta optional accessory)
E d i t i n g f u n c -
tions
Data alignment, Data merging (integration), Point group deletion
Drawing
Point group shading
Interchangeable
Objective Lens
(TELE, WIDE)
KONICA MINOLTA
RANGE7
AC Adapter
USB Cable
(5m) RA-A101
: Europe only (3m)
Marker Sheet Trial Pack
(Sheets T and W, 10 for each)
RANGE VIEWER
Personal
Computer
(commercial product)
Standard accessories
Optional accessories
3D Data Processing Software
Rotating Stage Kit (3 kg)
Rotating Stage Kit (20 kg)
Platform Set for Tripod
RA-A151
Measuring Stand
Platform Set for
Measuring Stand
RA-A201
Marker Sheet T
RA-A205
(50 markers x 10 sheets)
Marker Sheet W
RA-A206
(50 markers x 10 sheets)
Storage Case
RA-A209
Reverse engineering/
testing software
Calibration Sheet
Calibration Chart
RA-A105
RA-A107
Calibration Base
RA-A106
RA-A104
Dolly
Tripod
OS
Windows® Vista 64-bit (x64)
CPU
Core2Duo, Xeon or higher
RAM
4 GB or more
Display
Graphics display capability of 1280 x 1024 or more
Graphics board
OpenGL compatible board (Konica Minolta verified compatible board recom-
mended)
Interface
USB 2.0 port
Distance
Direction
SAFETY PRECAUTIONS
Read all safety and operating instructions before operating
the KONICA MINOLTA RANGE7.
Do not stare into the laser beam.
(MAX. 34mW 660nm , CLASS 2 (IEC) LASER PRODUCT)
34mW
