KITCHENAID KBCO24LSBX00 - Manual (Page 4)

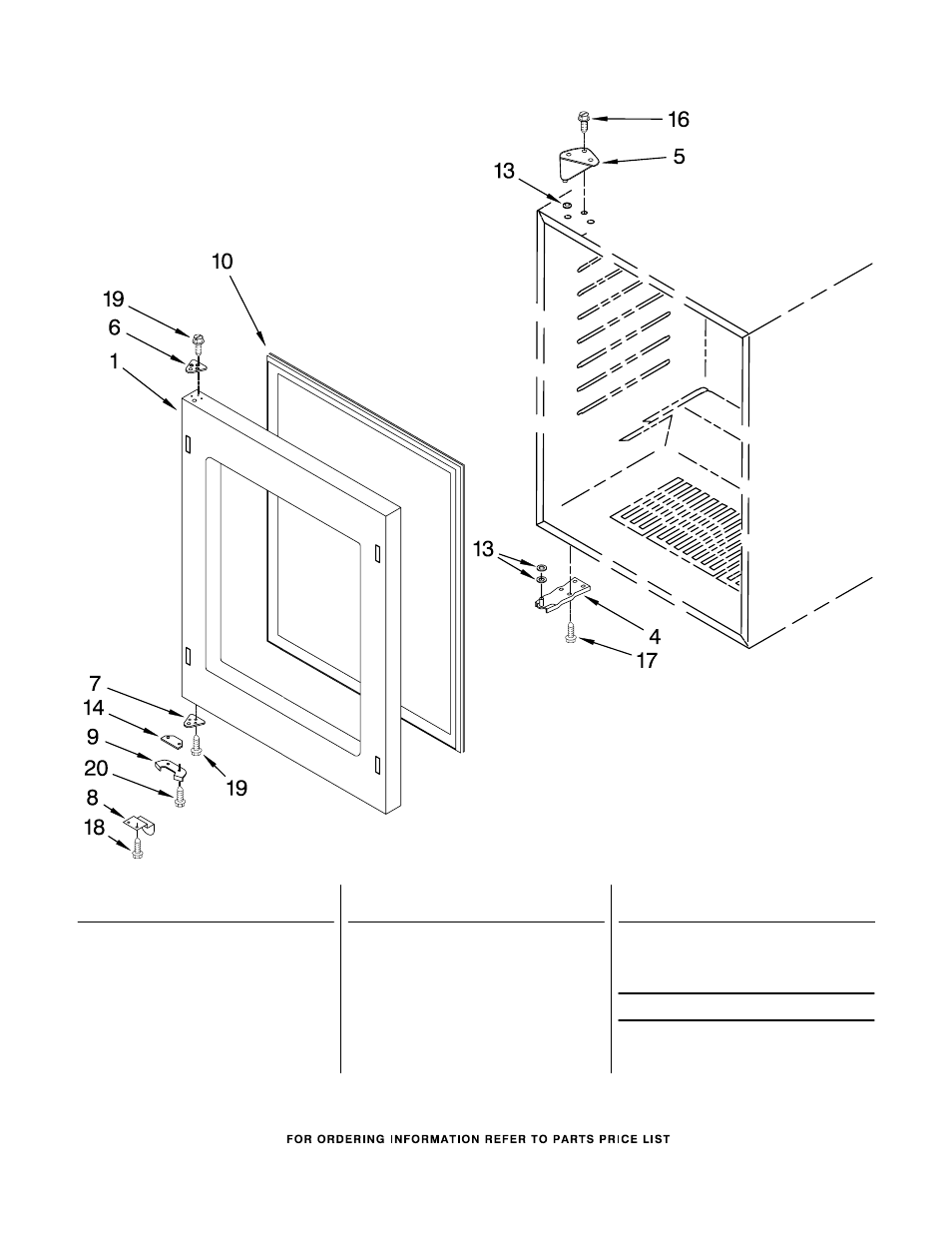

DOOR PARTS
4
For Models: KBCO24LSBX00
(Black Cabinet)
8214862
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 4344891 Door Assembly
(Includes Gasket)
4 4344787 Hinge, Bottom
5 4344754 Hinge, Top
6 4344804 Spacer, Top Hinge
7 4344798 Spacer,
Bottom Hinge
8 4344757 Actuator, Switch
9 4344802 Door Stop
10 4344852 Door Gasket
13 4344760 Washer
14 4344803 Spacer, Door
16 4344796 Screw
17 Screw, Lower Hinge
4344906 Quantity 1
4344797 Quantity 3
18 4344827 Screw
19 4344800 Screw
20 4344801 Screw
Following Parts Not Illustrated
4344818 Installation Kit,
Door Panel
