Flow-path schematic – Karcher HDS 2000 User Manual
Page 5
HDS 2000 Super
18
GB

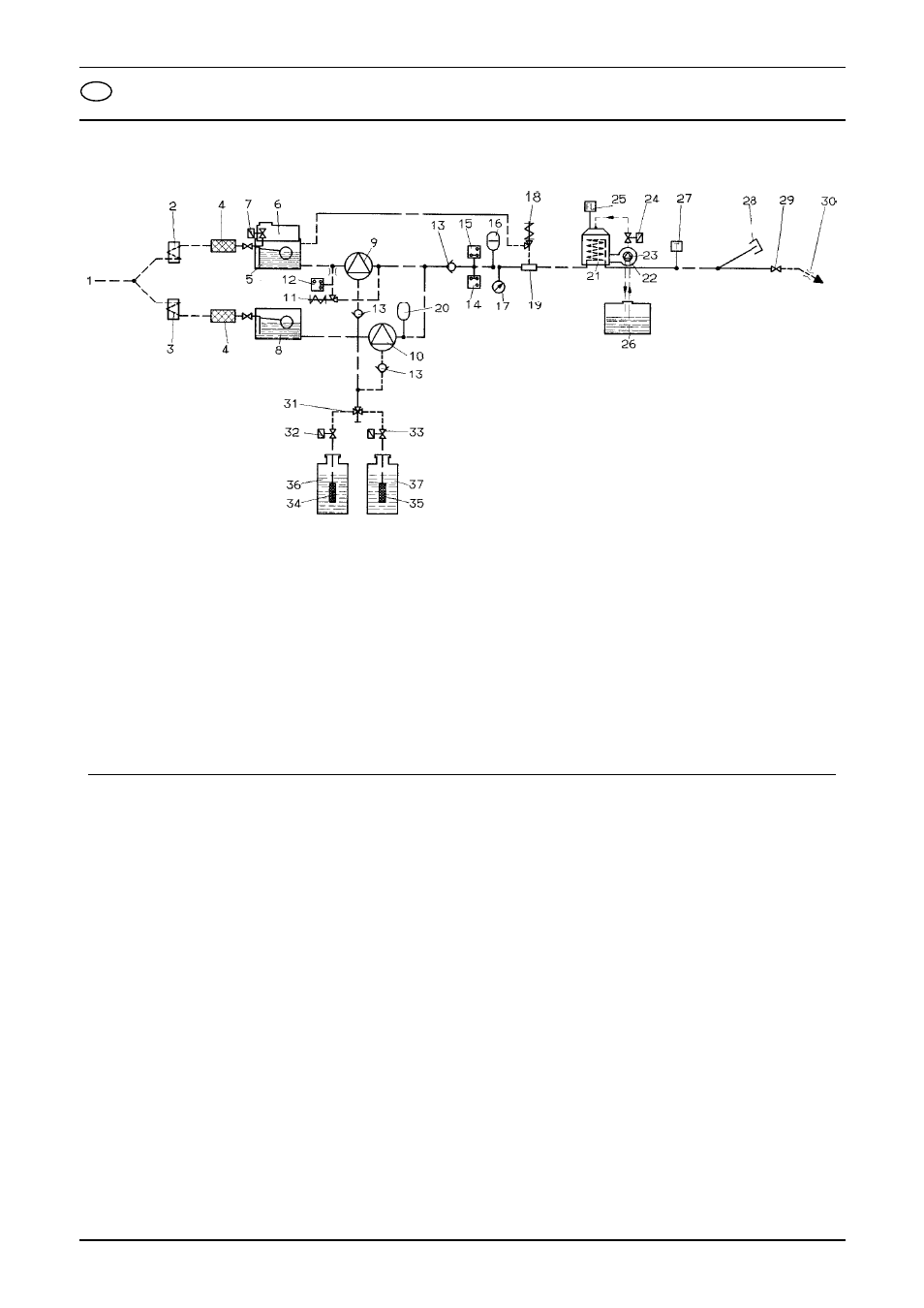

2. Flow-path schematic
1 Water inlet
2 Water cooling, motor 1
3 Water cooling, motor 2
4 Water filter
5 Float tank 1
6 Liquid softener reservoir (DGT)
7 Solenoid valve, DGT
8 Float tank 2
9 High-pressure pump 1
10 High-pressure pump 2
11 Overflow valve
12 Pressure switch, 10 bar
13 Non-return valve
14 Pressure switch, 30 bar
15 Pressure switch, 100 bar
16 Vibration damper
17 Pressure gauge
18 Safety valve
19 Low-water safety device
20 Vibration damper
21 Continuous-flow heater
22 Burner blower
23 Fuel pump
24 Low-fuel valve
25 Flame monitor
26 Fuel tank
27 Temperature regulator
28 Sealing cap for high-pressure outlet 2
29 Spraying handgun
30 High-pressure nozzle
31 Dual detergent metering valve
32 Detergent solenoid valve 1
33 Detergent solenoid valve 2
34 Detergent level sensor 1 with filter
35 Detergent level sensor 2 with filter
36 Detergent reservoir 1
37 Detergent reservoir 2
