10
1. Remove the limit switch black plastic cover on the
actuator.
2. Turn on the power on unit and push the T1, T2 or T3
button on the timer. The actuator will extend the stroke and
lower head. The motor must stop and the stroke should
stop extending before it reaches its mechanical stop. This
movement is controlled by the top micro switch.
3. If the motor fails to stop, manually depress the top
micro switch actuator. Disconnect power to the actuator
motor. Loosen the set screw (2.5mm allen wrench) located
on the top cam. Rotate the top cam clockwise, until the
switch is made (listen for audible click).
4. Tighten the set screw on the cam, using blue locktite.
5. Turn on the power and push the T1, T2 or T3 button on
the timer until it goes to the preset time. The actuator will
retract the stroke and raise the head. The motor must stop
and the stroke should stop retracting before it reaches its
mechanical stop. This movement is controlled by the
bottom micro switch.
6. If the motor fails to stop, manually depress the bottom
micro switch actuator. This will disconnect power to the
actuator motor. Loosen the set screw (2.5mm Allen wrench)
located on the bottom cam. Rotate the bottom cam counter
clockwise until the switch is made (listen for audible click.).
7. Tighten the set screw on the cam, using blue locktite.
8. Test the Top-Side head. Verify the adjustments did not
change the length of the stroke, thus preventing correct
function of the top Top-Side head. The Top-Side cooking
head must be able to reach the griddle plate. If it does not
function properly, complete steps #2 through #7.
9. Reinstall the switch cover.

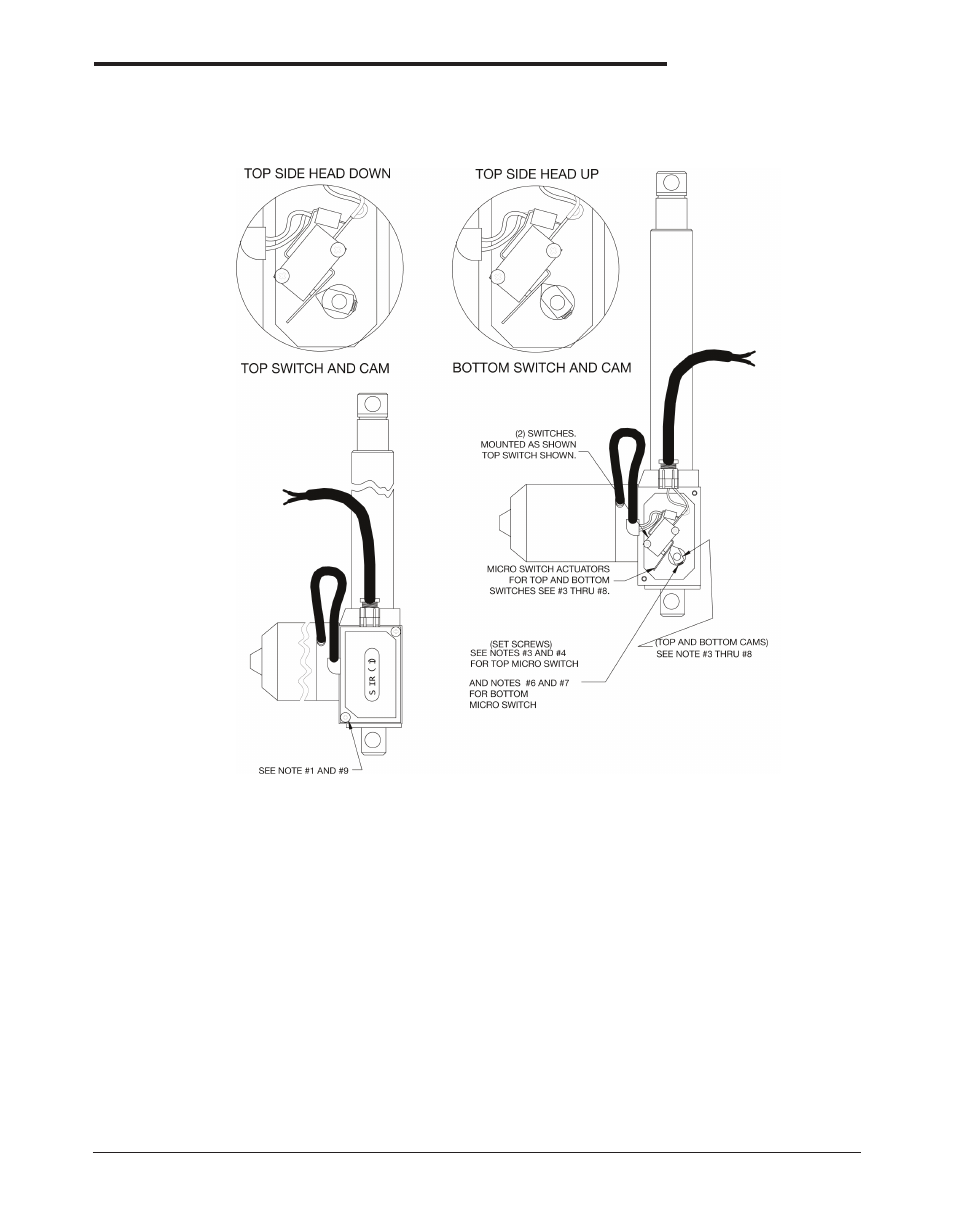

INSTRUCTIONS FOR MICROSWITCH ADJUSTMENT
AUTO-LIFT TOP-SIDE™ ACTUATOR
Figure 6-3
