Specifications
Model TK-5400
GENERAL
Frequency Range
RX: 851 ~ 870 MHz
TX: 806 ~ 825 MHz, 851 ~ 870 MHz
Number of Channels 512
Zone 16 max.
Channels 250 max.
TX: 806 ~ 825 MHz, 851 ~ 870 MHz
Channel Spacing
FM Mode 12.5/20/25 kHz
APCO 12.5 kHz
Input Voltage 7.5 V ± 20 %
Battery Life (5-5-90 Duty Cycle)
KNB-21N (Ni-Mh) 8 hours
KNB-22N (Ni-Mh) 10 hours
Operating Modes
Digital APCO P25 Phase 1
Analog Legacy FM
Signaling (FM Mode Only)
Encode QT, DQT, DTMF
Decode QT, DQT
Operating Temperature Range -22° F ~ +140° F (-30° C ~ +60° C)
Frequency Stability ±1.5ppm
Antenna Impedance 50 Ω
Dimensions (W x H x D) 58 x 155 x 38 mm with KNB-22N battery
[projections not included] (2.5/16” x 6-3/32” x 1-1/2” with KNB-22N)
Weight (net)
1.29 lbs oz. (587 g ) with KNB-22N battery and antenna.
FCC ID ALH33063110
IC Certification FCC Part 90 & 90.210
Model TK-5400
RECEIVER (Measurements made per TIA/EIA-603 for FM, TIA/EIA 102 for Digital)
Receiver Sensitivity
APCO (5 % BER) < 0.30 µV
FM Mode (12 cD SINAD) < 0.30 µV
Adjacent Channel Selectivity
APCO < -60 dB
FM Mode TIA/EIA @ 25 kHz < -72 dB
FM Mode TIA/EIA @ 12.5 kHz < -63 dB
Intermodulation
APCO < -60 dB
FM Mode TIA/EIA @ 25 kHz < -70 dB
FM Mode TIA/EIA @ 12.5 kHz < -63 dB
Spurious & Image < -73 dB
Audio Output 0.5 W / 16 Ω, with less than 3% distortion
Channel frequency spread 19 MHz 6 MHz
TRANSMITTER (Measurements made per TIA/EIA-603)
RF Power Output 3 / 1 W
Spurious & Harmonics < -60 dB
FM Hum & Noise < -45 dB
Audio Distortion Less than 2%
Modulation 16K0F3E, 11K0F3E, 8K10F1E, 8K10F1D, 14K0F3E

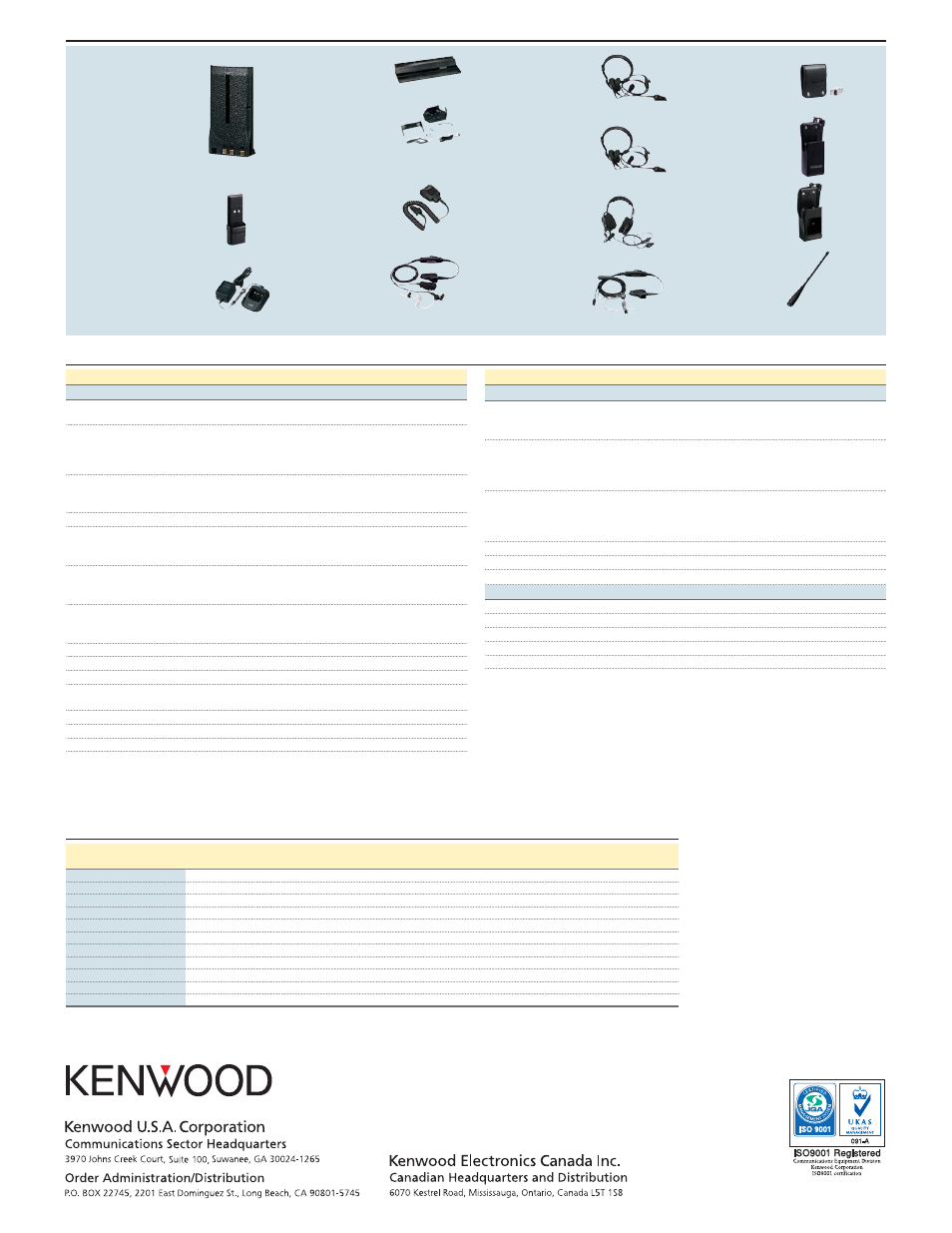

■ KNB-21N
Ni-MH Battery Pack
(1600 mAh)
■ KNB-22N
Ni-MH Battery Pack
(2100 mAh)
■ KNB-22NC
Ni-MH I.S. Battery Pack
(2100 mAh)
■ KBP-4
AA Refillable Battery Pack
(Holds 12 AA-Size Cells)
■ KSC-24
Rapid Rate Dual-Chemistry
Ni-Cd/Ni-MH Charger
■ KMB-16
Multi-Charger Adapter
■ KVC-4
Rapid Rate Vehicular
Charger Adapter for (KSC-24)
■ KMC-25
MIL-SPEC Speaker Mic
■ KHS-11BL
2-Wire Palm Mic
with Earphone
(BE- beige model)
■ KHS-14
Lightweight Single
Muff Headset
■ KHS-15-BH
Heavy Duty
Behind-the-Head Headset
with Noise Canceling
Boom Mic
■ KHS-15-OH
Heavy Duty
Over-the-Head Headset
■ KHS-12BL
3-Wire Mini Lapel
Mic with Earphone
(BE- beige model)
■ KBH-8DS
Swivel Belp Loop
with D-Ring Stud
Back Plate
■ KLH-78B
Leather Case
(for TK-5400 K)
■ KLH-79B
Leather Case
(for TK-5400 K2)
■ KRA-24
800 MHz
Whip Antenna
Standard MIL 810C MIL 810D MIL 810E MIL 810F
Methods/Procedures Methods/Procedures Methods/Procedures Methods/Procedures
Low Pressure 500.1/Procedure I 500.2/Procedure I, II 500.3/Procedure I, II 500.4/Procedure I, II
High Temperature 501.1/Procedure I, II 501.2/Procedure I, II Cat. A1 501.3/Procedure I, II Cat. A1 501.4/Procedure I, II
Low Temperature 502.1/Procedure I 502.2/Procedure I, II Cat. C1 502.3/Procedure I, II Cat. C1 502.4/Procedure I, II
Temperature Shock 503.1/Procedure I 503.2/Procedure I, Cat. A1,C1 503.3/Procedure I Cat. A1,C1 503.4/Procedure I, II
Solar Radiation 505.1/Procedure I 505.2/Procedure I 505.3/Procedure I 505.4/Procedure I
Rain 506.1/Procedure I, II 506.2/Procedure I, II 506.3/Procedure I, II 506.4/Procedure I, III
Humidity 507.1/Procedure II 507.2/Procedure II 507.3/Procedure II 507.4
Salt Fog 509.1/Procedure I 509.2/Procedure I 509.3/Procedure I 509.4
Dust 510.1/Procedure I 510.2/Procedure I 510.3/Procedure I 510.4/Procedure I, III
Vibration 514.2/Procedure VIII, X 514.3/Procedure I, Cat. 8 514.4/Procedure I, Cat. 8 514.5/Procedure I Cat. 20
Shock 516.2/Procedure I, II, V 516.3/Procedure I, IV 516.4/Procedure I, IV 516.5/Procedure I, IV, V
FleetSync ® is a registered trademark of Kenwood Corporation.
LTR ® is a registered trademark of Transcrypt International.
Kenwood follows a policy of continuous advancement in development.
For this reason specifications may be changed without notice.
Options
All accessories and options may not be available in all markets.
Contact an authorized Kenwood dealer for details and complete list of all accessories and options.
Applicable MIL-STD
ADS#43707 Printed in USA
JQA-QMA1205
