Connecting the VM-20HD Dual 1:10 HD/SD - SDI Distribution Amplifier
7
6 Connecting the VM-20HD Dual 1:10 HD/SD - SDI Distribution
Amplifier
To connect the
VM-20HD, as the example in Figure 2 illustrates, do the following
1
:
1.
Connect an HD-SDI/SD-SDI video source (for example, an HD/SD SDI
camera) to the CHANNEL A VIDEO IN BNC connector.
2.
Connect the CHANNEL A LOOP BNC connector to the CHANNEL B
VIDEO IN BNC connector.
3.
Connect up to
2
20 VIDEO OUTPUT BNC connectors to the appropriate
HD/SD SDI video acceptors (for example, HD/SD SDI displays).
4.
Connect the power cord (not illustrated in Figure 2).

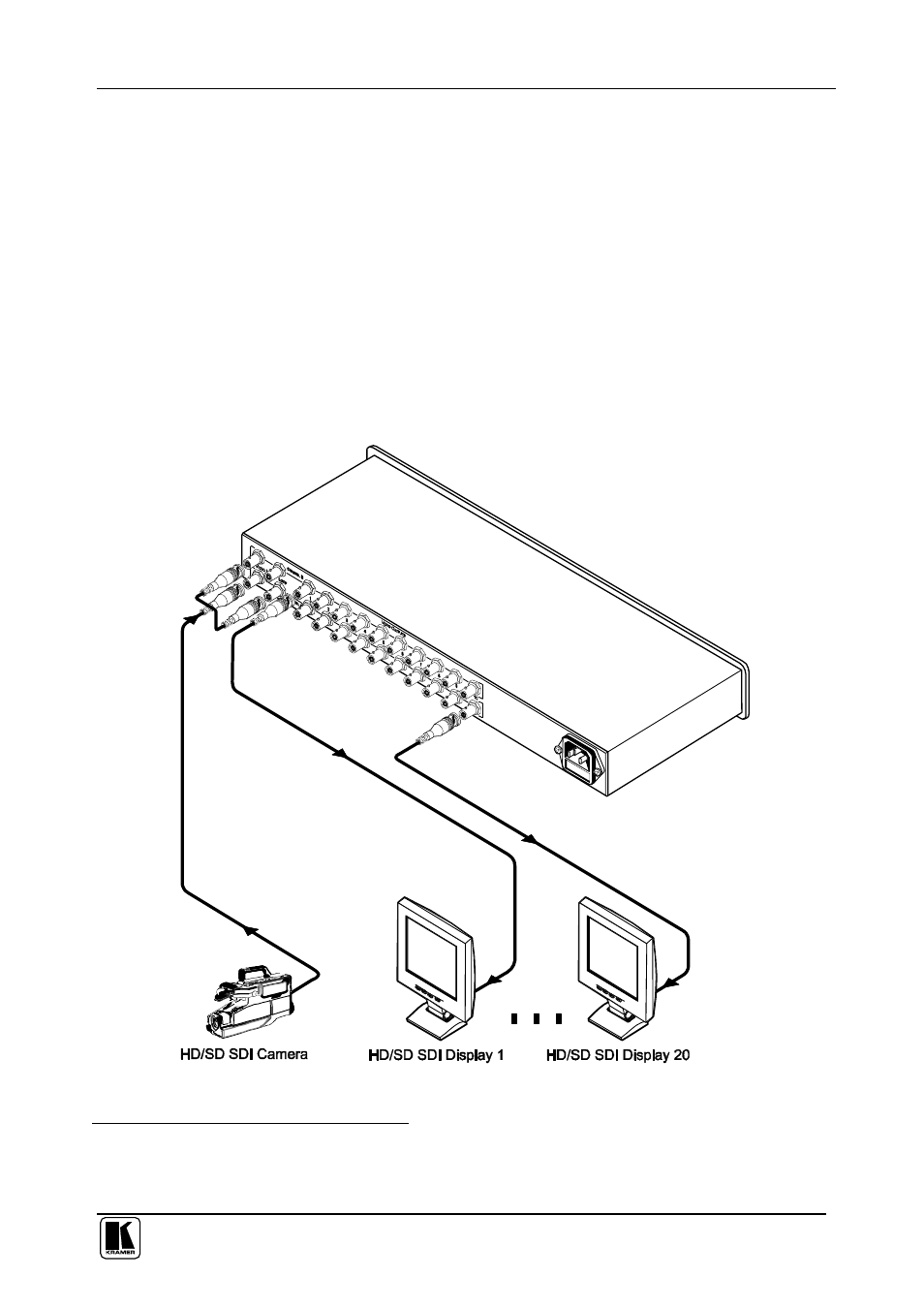

Figure 2: Connecting the VM-20HD Dual 1:10 HD/SD - SDI Distribution Amplifier
1 Switch OFF the power on each device before connecting it to your VM-20HD. After connecting your VM-20HD, switch on
its power and then switch on the power on each device
2 You do not have to connect all the outputs, connect only those that are required and leave the other output(s) unconnected
