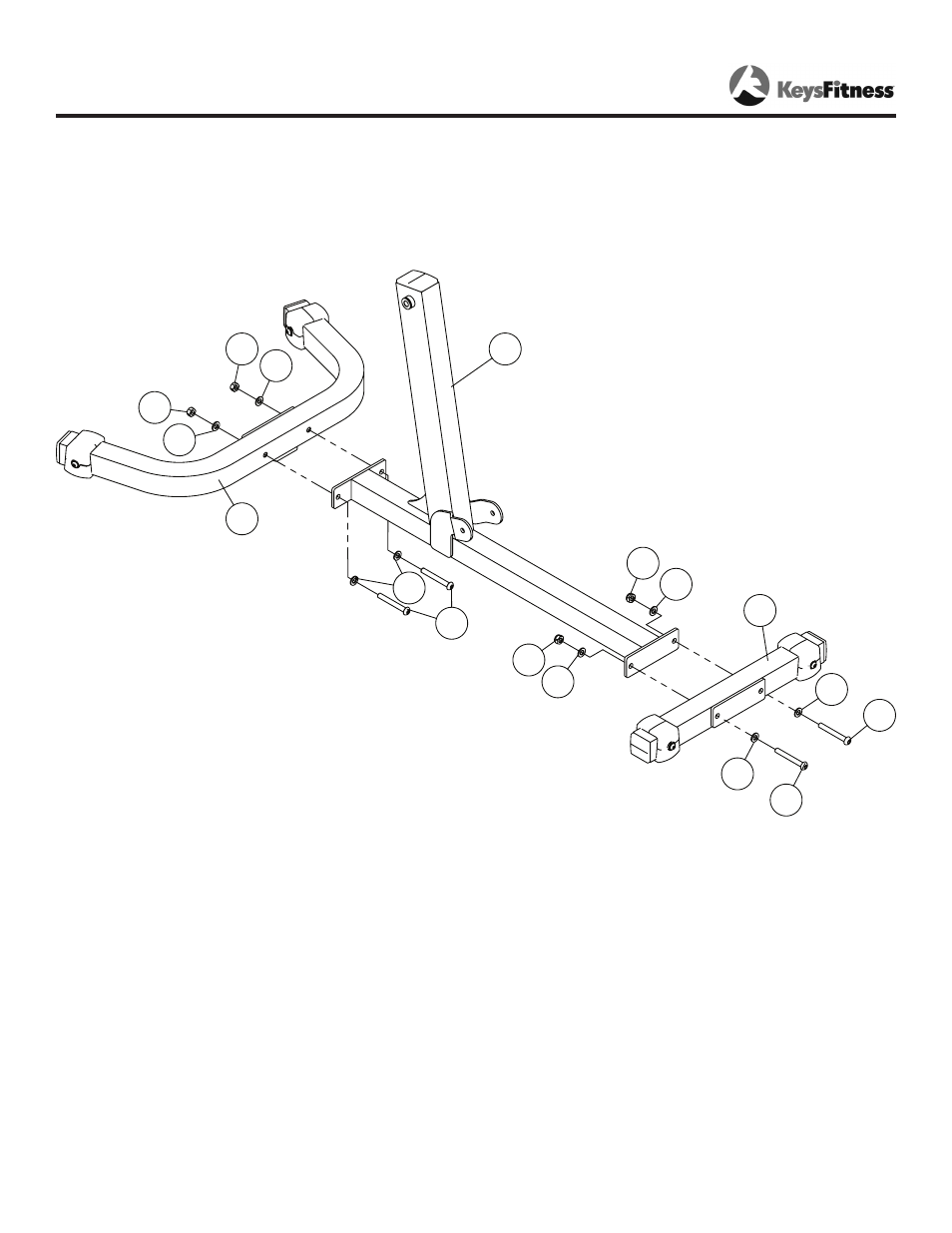

STEP 1

2

1

3

30

30

36

36

36

36

36

36

39

39

39

39

30

36

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

Attach U-Shaped Base () to Main Frame (3) using Bolts M10X80
(30), Washers M10 (36), and Nylon Lock Nuts M10 (39).

Attach Base Frame (1) to Main Frame (3) using Bolts M10X80 (30),
Washers M10 (36), and Nylon Lock Nuts M10 (39).

Assembly

5
