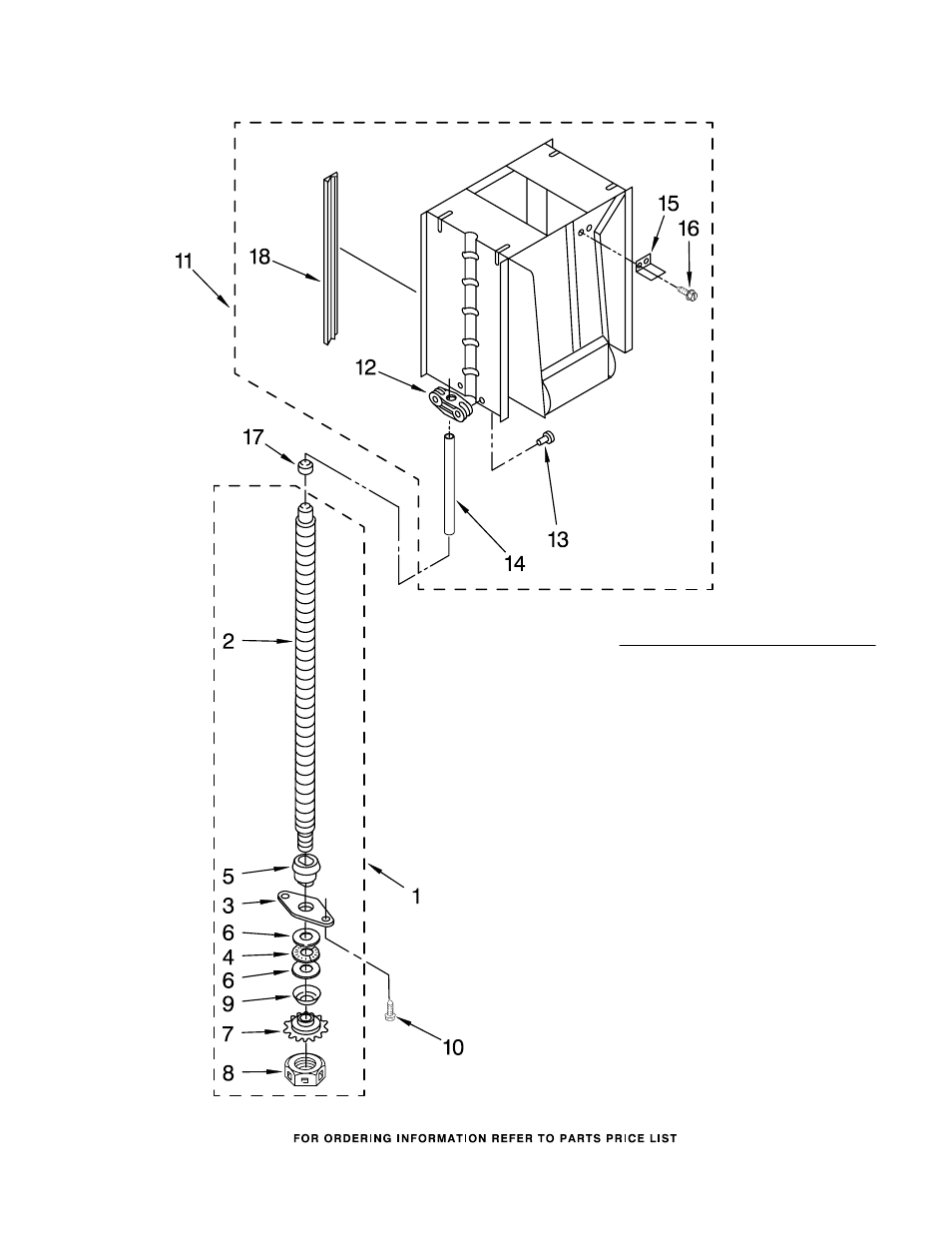

POWERSCREW AND RAM PARTS
3 W10122454
Illus. Part
No. No. DESCRIPTION
1 9870500 Screw, Power
Complete
Assembly (2)
2 Screw, Power
(Available Only
As Complete
Assembly)
3 779121 Plate, Bearing (2)
4 775482 Bearing, Needle (2)
5 776941 Hub, Power
Screw (2)
6 775481 Race, Thrust (2)
7 777385 Sprocket,
Washer (2)
8 4154842 Nut, Power
Screw (2)
9 777332 Washer, Cone (2)
10 9871067 Screw,
10−24 x 3/4 (4)
11 9871251 Ram Assembly
12 9870163 Nut, Power (2)
13 9870187 Stud (2)
14 9870037 Stop, Ram (2)
15 9870498 Bracket, Top Limit
Switch
16 489399 Screw, (2)
17 9870775 Cap, Stop (2)
18 9870169 Slide, Ram (4)
For Models: KUCS03CTWH0, KUCS03CTBL0, KUCS03CTSS0
(White) (Black) (Stainless)
