NO. PART QTY
1 MAIN FRAME ASSEMBLY 1
2 MAIN UPRIGHT 1
3 LEFT FOAM HANDLE 1
4 RIGHT FOAM HANDLE 2
5 MONITOR 1
6 PULLEY 1
7 GENERATOR 1
8 CONTROLLER BOARD 1
9 V-BELT 1
10 T-SHAPED HANDLEBAR 1
11 BOTTOM LEFT HOUSING 1
12 BOTTOM RIGHT HOUSING 1
13 TOP HOUSING 1
14 CONSOLE TUBE COLLAR 1
15 ROUND COVER 1
16 ROOT PEDAL 1
17 END CAP 1
18 ROLLER CAP 2
19 FOOT CAP 1
20 WHEEL 2
21 SNAP CAP 2
22 NUT CAP 1
23 38mm BALL PLUG 1
24 31.8mm BALL PLUG 1
25 HAND PULSE 2
26 PULSE WIRE 2
27 CONTROLLER
EXTENSION WIRE 2
28 CONTROLLER WIRE 1
NO. PART QTY
29 CONNECTING ARM 2
30 LEFT FRONT FOOT FRAME 1
31 RIGHT FRONT FOOT FRAME 1
32 LEFT REAR FOOT FRAME 1
33 RI GHT REAR FOOT FRAME 1
34 ALUMINUM EXTENSION PLATE 1
35 6004 PRECISE BEARING 6
36 608 PRECISE BEARING 8
37 38mm HANDLEBAR SLEEVE 2
38 76mm BUSHING 4
39 BELT TENSION BRACKET 1
40 ADJUSTMENT CHANNEL 2
41 EYEBOLT 3
42 SPRING 1
43 IDLER PULLEY 1
44 ROLLER 2
45 ALUMINUM EXTRUSION 2
46 M6 LOCKNUT 4
47 M6 HEX NUT 3
48 M10 CAP NUT 2
49 M8 LOCKNUT 10
50 M8 IDX18.8mm OD
FLAT WASHER 12
51 M20X32X2mm WASHER 4
52 M10 NUT 10
53 M8X17mm SCREW 1
54 M8X38mm SCREW 1
55 M8X57mm SCREW 2
56 M8X60mm SCREW 3

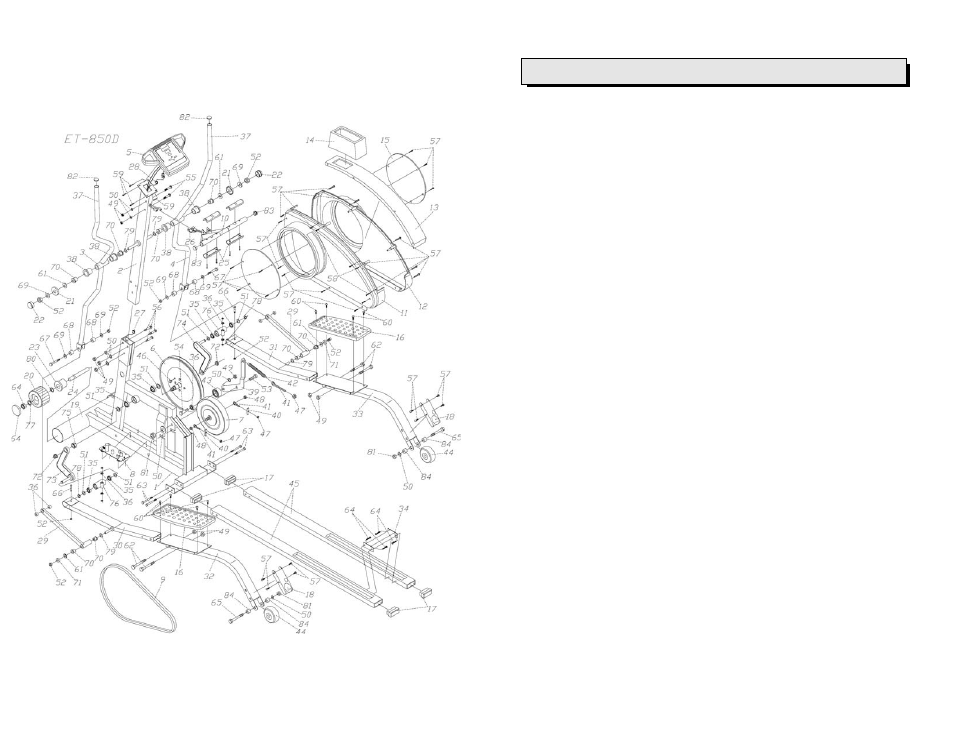

850 ELLIPTICAL PARTS LIST
