2566 ADIRONDACK ROCKING CHAIR
Assembly Instructions
Contents:
(1) Seat, (1) Back
(2) Arm Rests
(2) Front Chair legs
(2) Back Chair legs
(2) Cross Braces
(2) Rocker Feet
Tools Required:
7/16” Wrench
(16) 1/4 - 20 x 2” Bolts
(6) 1/4 - 20 x 2 1/2” Bolts
(10) Washers
(10) Locknuts
Locknut Washer Bolt
#3 Phillips Head Screwdriver

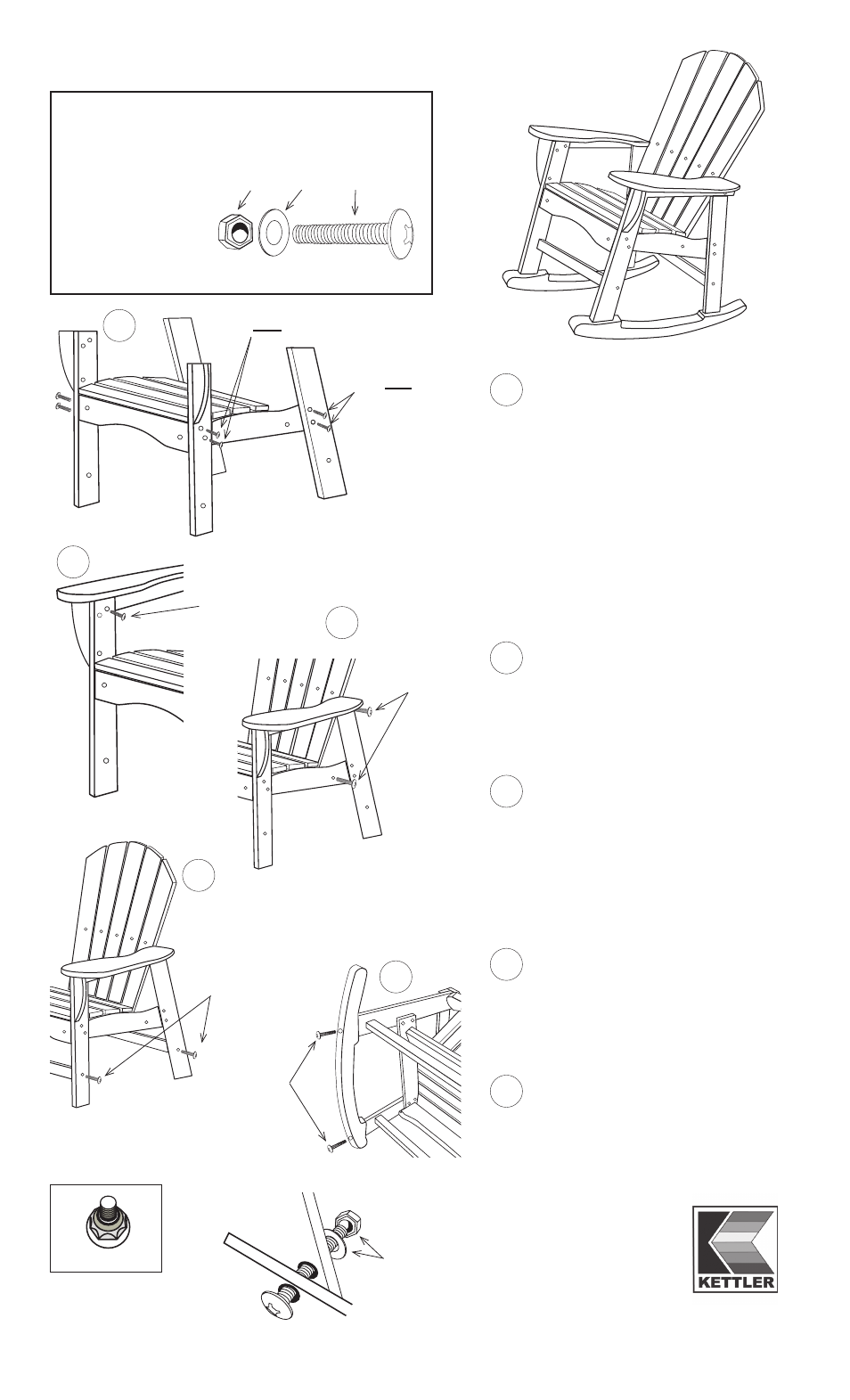

1.
a. With the wing on the post facing front,
align the predrilled holes on front leg to the seat
and insert the 1/4 - 20 x 2” Bolts through the leg
in thru the seat. Clean any plastic residue from
the bolt then slide a washer on. Screw on the
locknut and then tighten it with the wrench and
phillips screwdriver.
b. Align the predrilled holes on the back leg to
the seat and insert the 1/4 - 20 x 2” Bolts through
the leg in thru the seat. Clean any plastic residue
from the bolt then slide a washer on. Screw on the
locknut and then tighten it with the wrench and
phillips screwdriver. Repeat on the other front leg.
2.
Place arm rest on top of chair legs align the
front predrilled holes and insert the 1/4 - 20 x 2”
Bolts through the leg and in thru the arm. Clean
off any plastic residue then slide a washer on the
end of bolt. Screw on the locknut and then tighten
it with the wrench and phillips screwdriver.
3.
a. Attach the back of the chair to the seat
by aligning holes and inserting a 1/4 - 20 x 2”
Bolt then tighten with a phillips screwdriver.
b. Attach the back of the chair to the arm by
aligning holes and inserting a 1/4 - 20 x 2 1/2”
Bolt thru the arm, leg and into the chair back, then
tighten with a phillips screwdriver.
Repeat on both sides.
4.
Attach the cross braces of the chair to the
legs by aligning holes and inserting a 1/4 - 20 x
2” Bolt through the leg into the cross brace and
tighten with a phillips screwdriver.
Repeat on other leg.
Do Front and Back cross braces.
5.
Attach the rocker for the chair. Align the
predrilled hole on the rocker to the metal isert at
the bottom of the leg and insert a 1/4 - 20 x 2 1/2”
bolt then tighten with the screwdriver.
Bolt both front and back legs.
2. Place arm rest
on top of chair
legs, align front
predrilled holes,
insert bolt.
Properly Seated
Washer and Nut.
Slide washer then
locknut onto end of
bolt then tighten.
Attach the
braces to
the legs by
aligning holes
and inserting
a 2” bolt.
4.
Attach the
rocker to
the legs by
aligning holes
to metal insert,
use a 3” bolt.
5.
Attach the back
of the chair by
aligning holes on
the arm and the
seat to insert bolt.
3.
3b.
3a.
1.
a. Align predrilled holes then insert bolts
to attach front legs.
1a.
b. Align predrilled
holes then insert bolts
to attach back legs.
1b.
