Kaidan QPX-2 - Manual (Page 5)

Page - 5
Chapter 3
Using the QuickPan™
C
HANGING THE INCREMENT ROTATION ANGLE

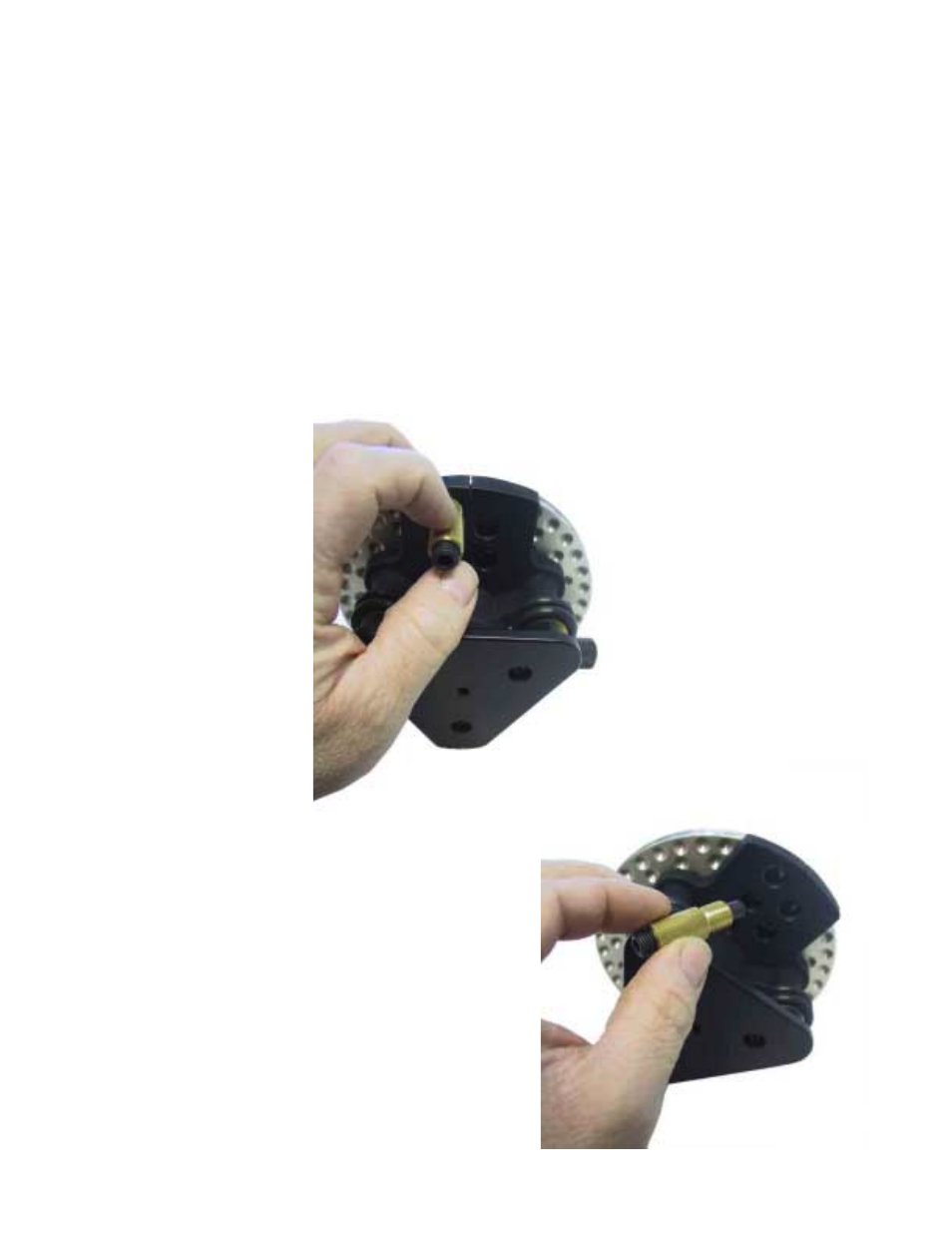

The QPX-2 uses a spring-loaded plunger indexing mechanism. A spring-loaded
brass plunger is located on the underneath side of the QuickPan. To remove the
plunger, simply unscrew the unit from the base. When removing or replacing
the plunger, be sure to hold on to the brass housing and not the dark colored
adjusting screw which protrudes from the end of the plunger.
