ASSEMBLY

v

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

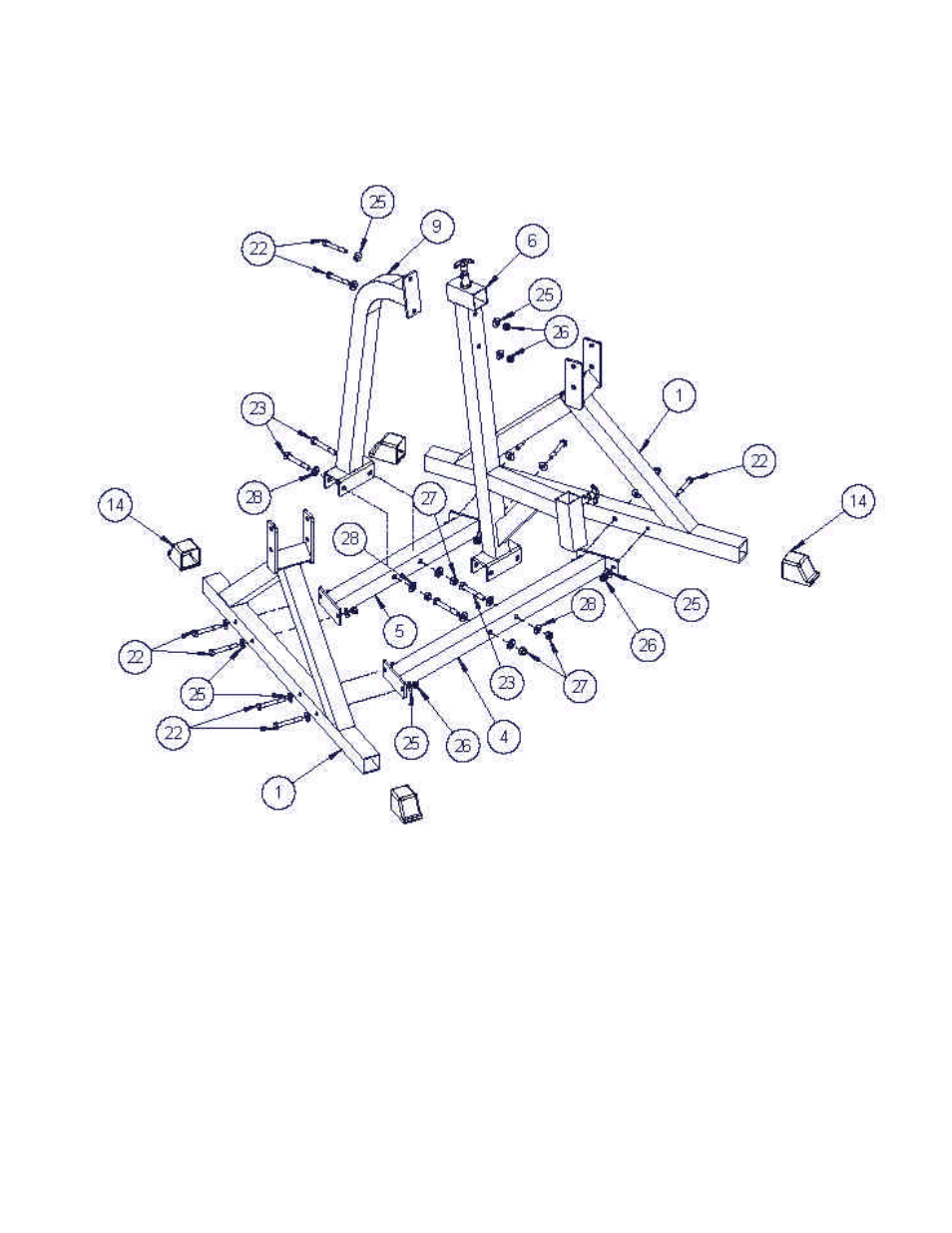

Begin by connecting the front base frame (4) and rear base frame (5) to the side
frames (1) using:

8 x (22) Bolt

16 x (25) Washer

8 x (26) Nylon Locknut

Attach angle support (11) to rear base frame (5) using:

2 x (23) Bolt

4 x (28) Washer

2 x (27) Nylon Locknut

Attach main upright (6) to front base frame (4) using:

2 x (23) Bolt

4 x (28) Washer

2 x (27) Nylon Locknut

Connect angle support (11) to main upright (6) using:

2 x (22) Bolt

4 x (25) Washer

2 x (26) Nylon Locknut

STEP 1
