Installation
4

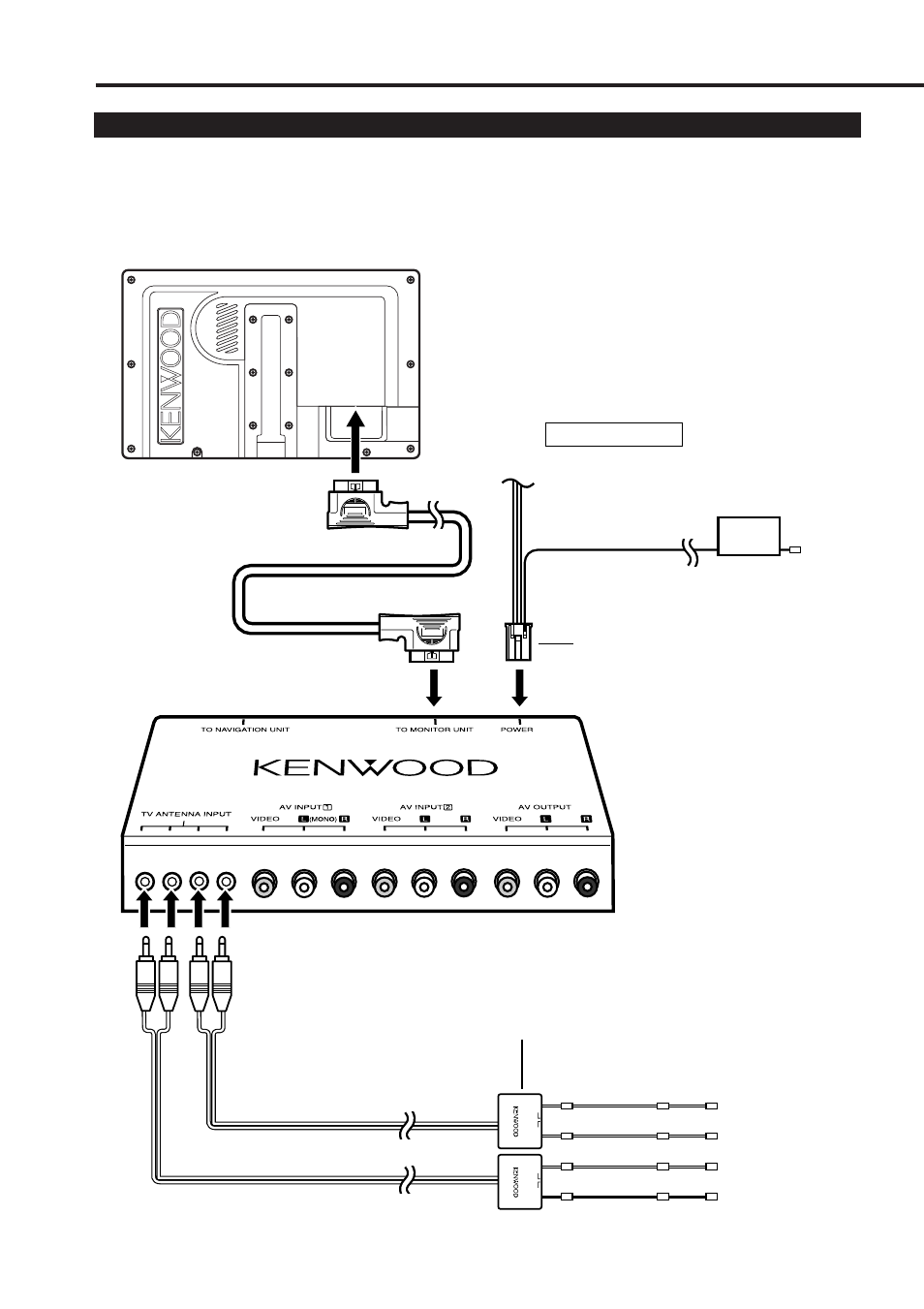

Connecting the TV Tuner Unit
CAR DIVERSITY ANTENNA WITH BOOSTER CX-A330
ON
OFF BOOST
CAR DIVERSITY ANTENNA WITH BOOSTER CX-A330
ON
OFF BOOST
FM-TX
(Provided with the LZ-800W)
Monitor Unit (LZ-800W)
TV Tuner Unit (KTC-V800N/P)
TV Antenna Unit (Accessory A)
See the LZ-800W instruction manual for details regarding the power harness
and Video Input/Video Output terminals.
(Provided with the LZ-800W)
Extend the antenna cord and locate
in an area where reception is not
marred by excessive noise.
2CAUTION
FM transmitter antenna cord
