Upper housing and flange parts, For model: kcdb250g2

background image

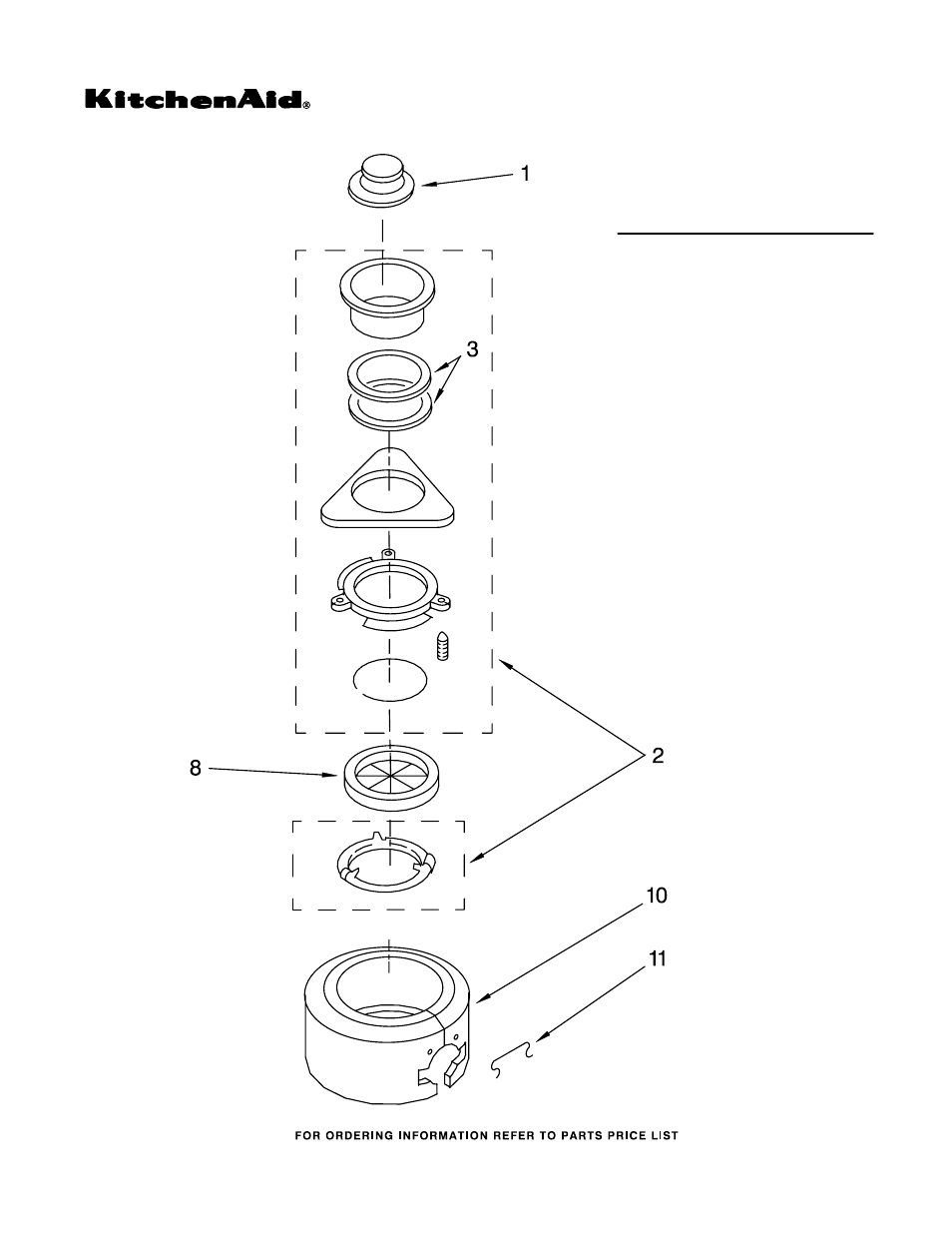

UPPER HOUSING AND FLANGE PARTS

1

For Model: KCDB250G2

6−04 Litho in U.S.A. (bd)

Part No. 8174361

DISPOSER

Illus. Part

No. No. DESCRIPTION

1

4211300 Stopper Assembly

2

8174306 Mounting Assembly

3

4211302 Gasket, Sink

Flange

8

4211615 Gasket, Mounting

10

8174341 Trim, Shell Asm.

11

8174342 Clip, Trim shell
