7
Ductwork Installation
7. Use 8” aluminum or steel pipe (follow building codes in
your area) to connect the ducting transition on the hood
to the ductwork above. Use duct tape to seal and
secure joints as shown in Figure 5.
Wiring to Power Supply
S A F E T Y W A R N I N G
TO PREVENT THE RISK OF ELECTRICAL SHOCK OR
INJURY, ALL RANGE HOODS SHOULD BE PROPERLY
GROUNDED
AND INSTALLED BY A TRAINED
PROFESSIONAL WHO IS KNOWLEDGEABLE ABOUT
APPLICABLE NATIONAL AND LOCAL ELECTRICAL
CODES.
BEFORE CONNECTING WIRES, SWITCH POWER OFF
AT SERVICE PANEL TO PREVENT POWER FROM
BEING SWITCHED ON ACCIDENTALLY.
8. Connect electrical wires.
- Connect three wires (black, white and green) to
house wires and cap with wire connectors.
Connect wires according to their colors (i.e. black to
black, white to white, and green to green). See
Figure 6.
- Prevent wires from slipping between motor and any
moving parts by securing in electrical box.
Final Assembly
CAUTION : Install heating lamps last.
9. Drop Oil Tunnel into support structure. Refer to
Figure 7.
10. Angle baffle filter toward back of hood
. Refer to
Figure 8.
11. Push baffle filter up until almost level .
12. Slide forward into recess at front of hood.
13. Lower baffle filter and slide back until it fits into
resting position .
14. Repeat for all baffle filters and spacers. Refer to
Measurements and Diagrams on page 21 for baffle
filter and stainless spacer arrangement.

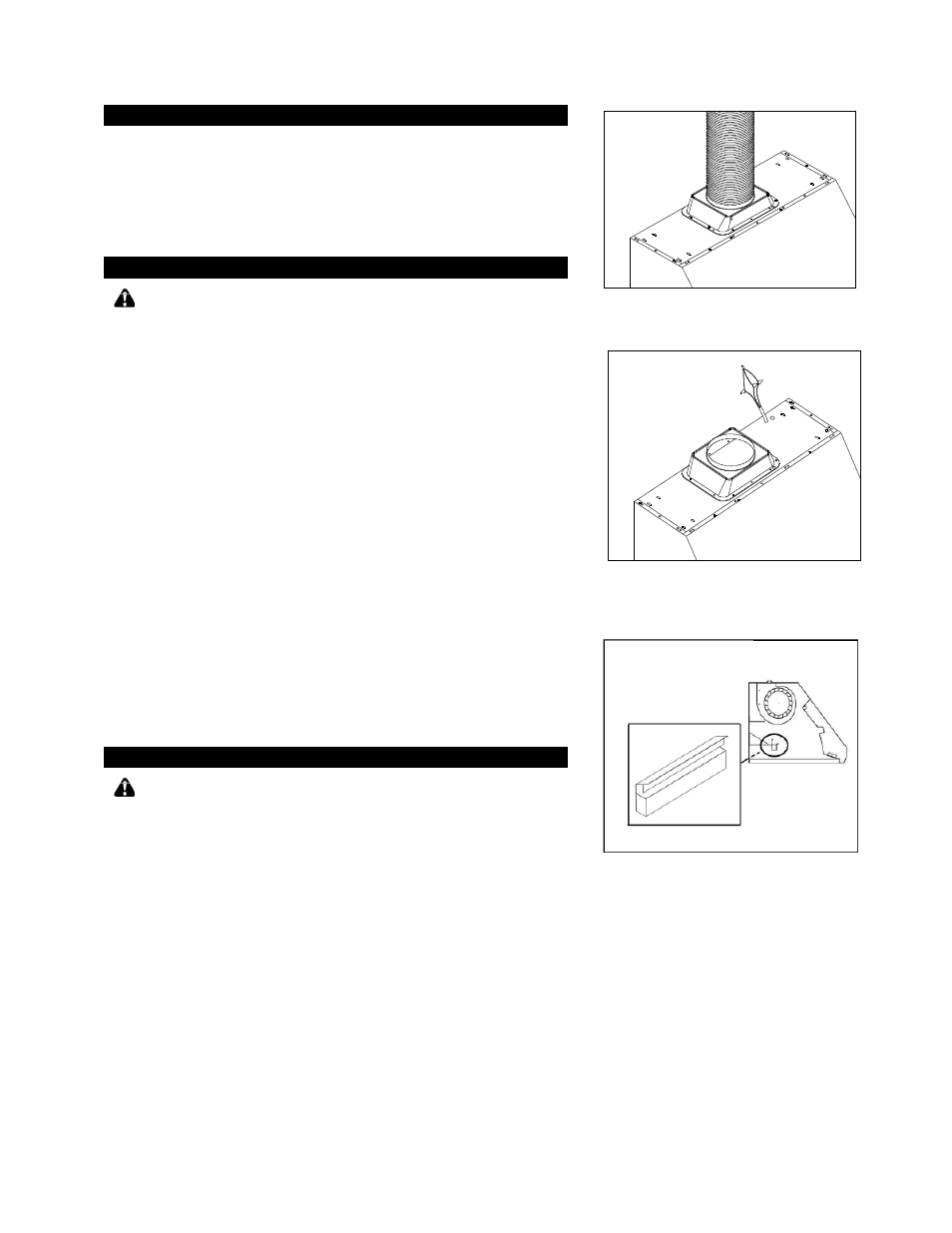

Figure 5
Figure 6
Figure 7
