Step 4, Assembly – Keys Fitness KF-LP3 User Manual

Page 8

background image

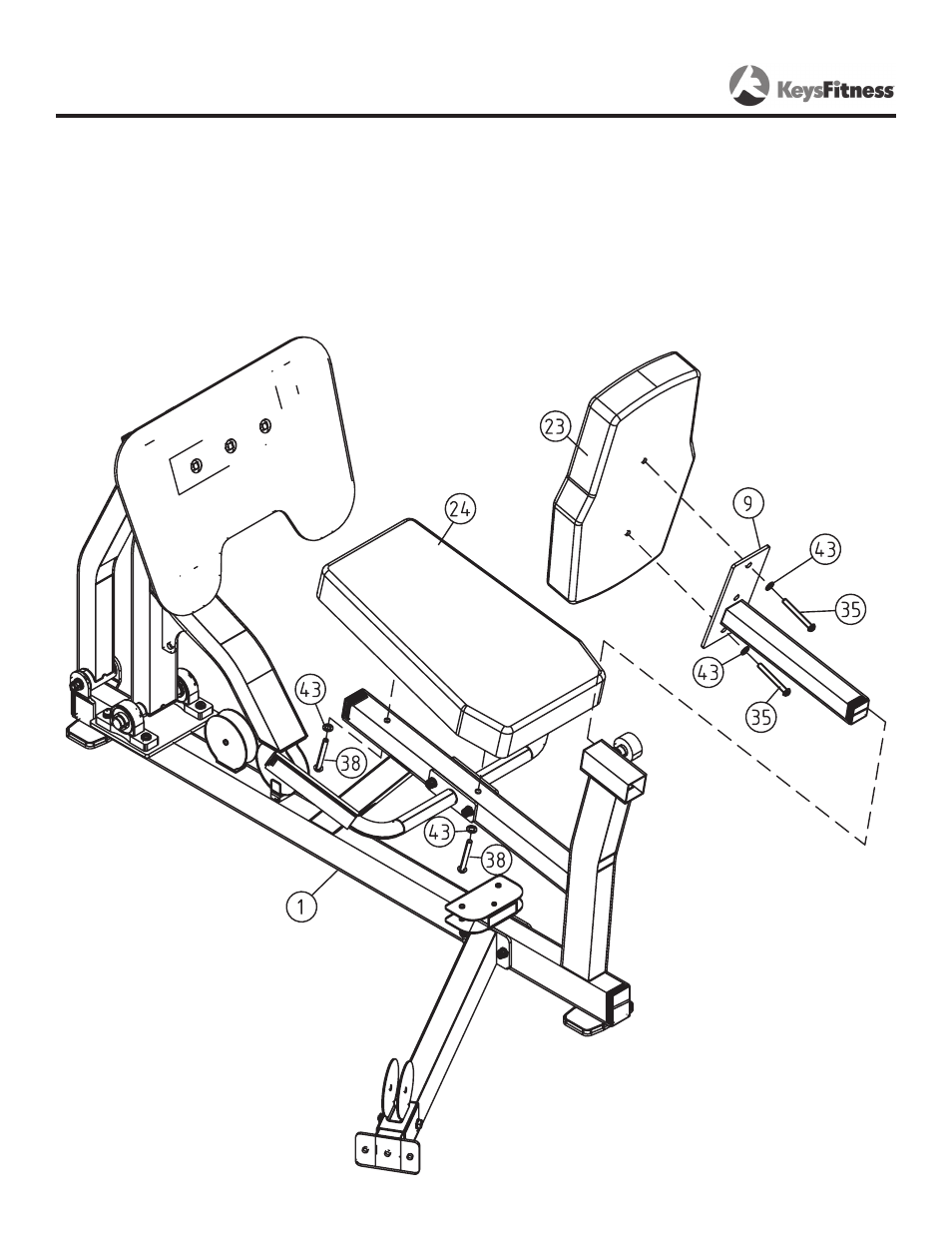

Figure 4

Step 4

Attach Seat Pad (4) to Main Frame (1) using two Bolts (38) and two Washers (43).
Assemble Back Pad (3) to Back Pad Support (9) using two Bolts (35) and two Washers (43).
Slide Back Pad Support assembly to Main Frame (1) and secure using Pop Pin (16).

8

Assembly
