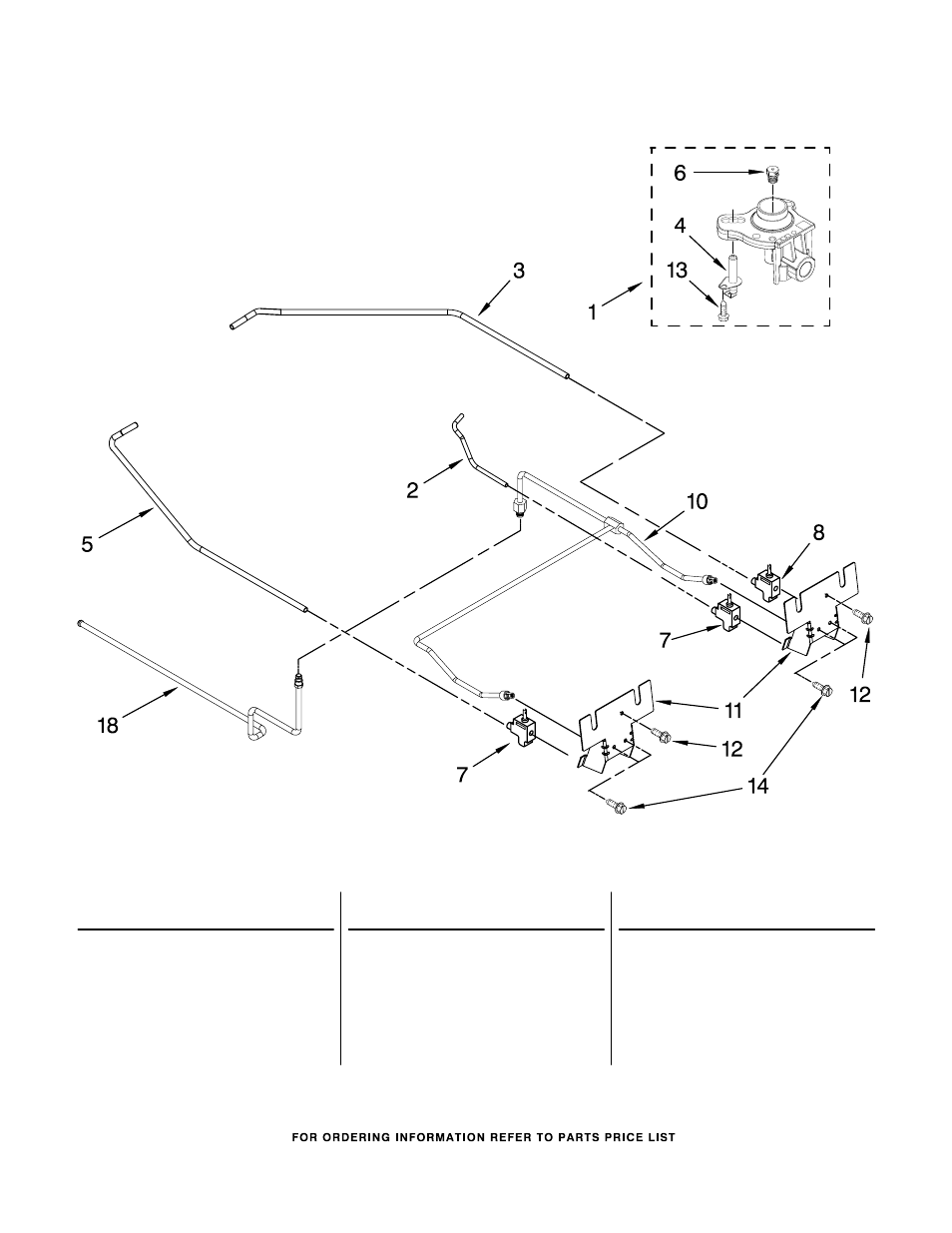

COOKTOP BURNER PARTS
10
For Models: KGSS907SBL02, KGSS907SWH02, KGSS907SSS02
(Black) (White) (Stainless)
W10269051
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 Burner Base
W10128446 LR, RF
W10128455 RR
2 9761069 Tubing, Burner(RF)
3 9761070 Tubing, Burner(RR)
4 W10110378 Ingitor, Orifice
Holder
5 9761068 Tubing, Burner(LR)
6 Orifice
9762937 LR, RF
9762938 RR
7 4456816 Valve, Burner
Small (2)
8 4456817 Valve, Burner
Large
10 9761648 Tube, Manifold
11 Manifold
9761641 TCB
9761642 Cooktop
12 3196537 Screw
13 8273062 Screw
14 8523704 Bolt, Valve (4)
18 4453754 Tubing
GDS to Manifold
