Views and Connections
5
3

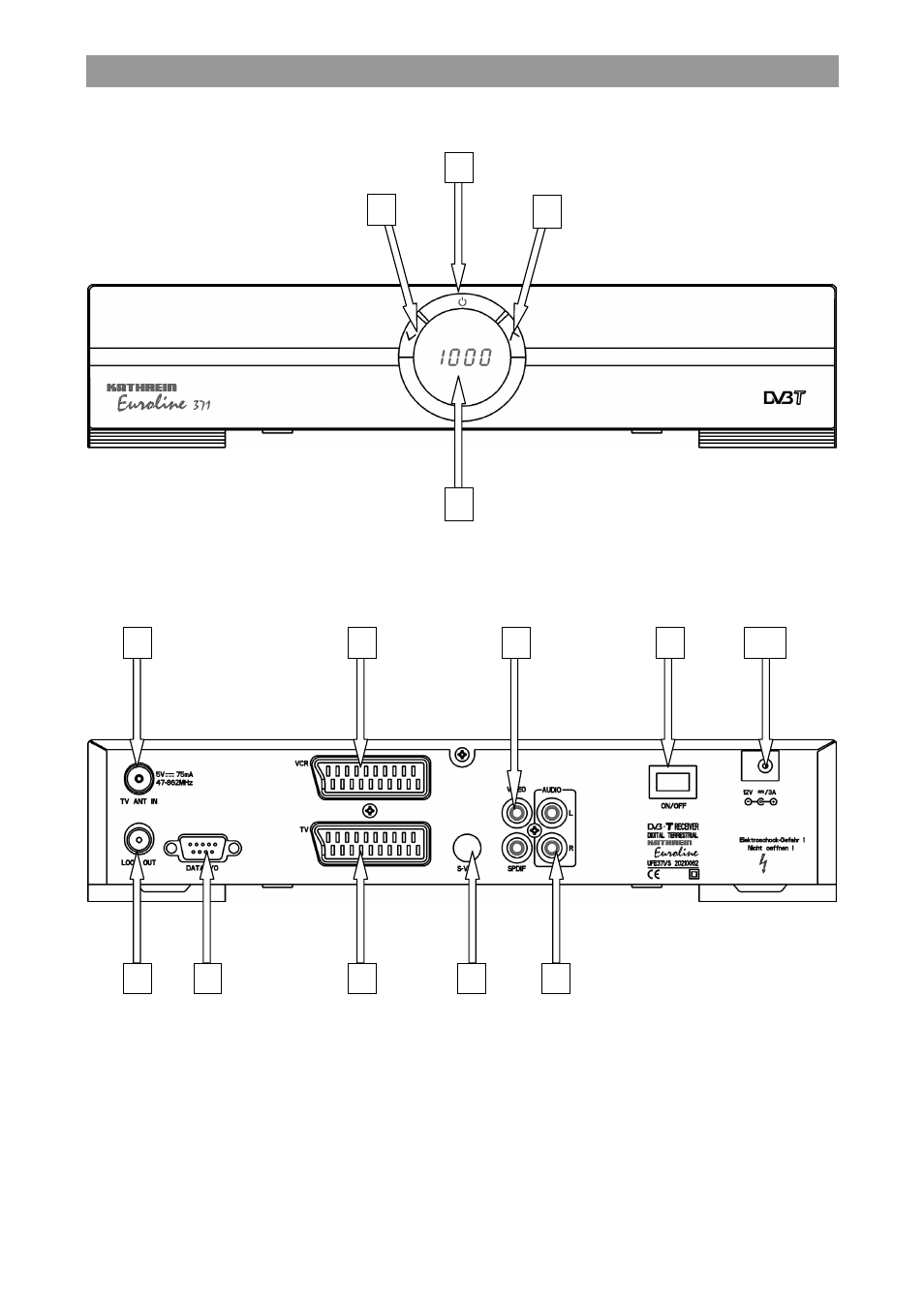

Views and Connections
Front View
1) Operation/Stand-by
key
2) Programme-selection keys
3) Programme display
Rear View
1)
TV antenna input socket
2) TV antenna input (looped-through signal)
3) RS 232 data interface for serial data transmission during maintenance service (only with null
modem)
4) SCART connection for TV set
5) SCART connection for video recorder
6) S-VHS output
7) Video output cinch socket
8) Audio output cinch sockets for stereo equipment (left and right)
9) Mains switch (On/Off)
10) DC input
1
2 2
2
1
3 4
5 7
6 8
9 10
