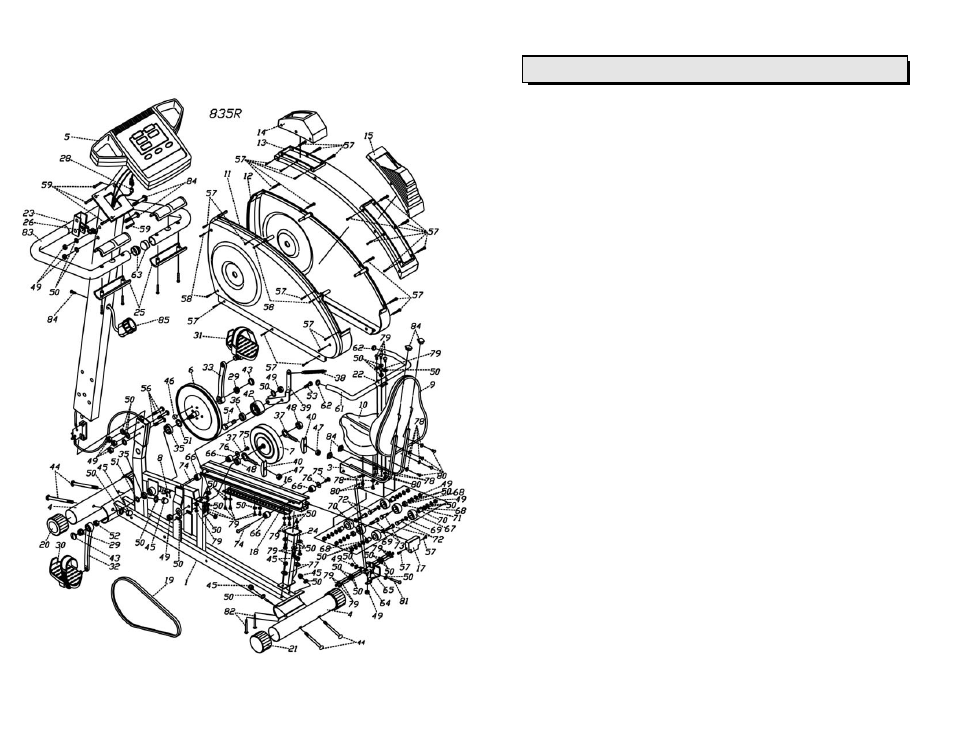

835 recumbent parts list – Keys Fitness 835R User Manual
Page 9
NO.
PART
QTY
1
FRAME
1
2
CONSOLE TUBE
1
3
SEAT CARRIAGE
1
4
FOOT TUBE
2
5
CONSOLE
1
6
PULLEY
1
7
MAG BRAKE
1
8
SENSOR
2
9
SEAT CUSHION
2
10 BACK SEAT CUSHION
1
11 BOTTOM LEFT COVER
2
12 BOTTOM RIGHT COVER
1
13 TOP COVER
1
14 CONSOLE TUBE COLLAR
5
15 CONNECTING COVER
2
16 CARRIAGE TUBE
1
17 END CAP
1
18 ADJUSTING PLATE
2
19 “V” BELT
1
20 WHEEL
2
21 FOOT CAP
2
22 REAR HANDLEBAR
2
23 FRONT HANDLEBAR
2
24 SUPPORT TUBE
2
25 HAND PULSE
2
26 PULSE WIRE
2
27 REED SWITCH WIRE
2
28 EXTENSION WIRE
1
29 9mm NUT
2
30 LEFT PEDAL
1
31 RIGHT PEDAL
1
32 LEFT CRANK
1
33 RI GHT CRANK
1
34 LOCKING KNOB
1
35 6004 PRECISE BEARING
2
36 608 PRECISE BEARING
1
37 EYEBOLT
2
38 SPRING
1
39 BELT TENSION BRACKET
1
40 ADJUSTMENT CHANNEL
2
41 SENSOR
1
42 IDLER PULLEY
1
43 CRANK CENTRAL CAP
2
44 M8X85mm CARRDIAGE BOLT
4
NO.
PART
QTY
45 M8 CAP NUT
4
46 M6 LOCKNUT
4
47 6mm HEX NUT
2
48 M10 CAP NUT
2
49 M8 LOCKNUT
10
50 M8 IDX18.8mm OD14
FLAT WASHER
14
51 M20X32X2mm WASHER
2
52 CRANK NUT
2
53 M8X17mm SCREW
1
54 M8X38mm SCREW
1
55 M8X57mm SCREW
3
56 M8X60mm SCREW
3
57 TP4X12mm SCREW
26
58 TP5X50mm SCREW
4
59 M5X10mm SCREW
4
60 M6X45 MACHINE SCREW
4
61 REAR SLEEVE
1
62 REAR BALL PLUG
2
63 FRONT BALL PLUG
2
64 CAM LOCK
1
65 SEAT CARRIAGE BRACKET
1
66 RUBBER STOPPER
4
67 SMALL ROLLER
6
68 M8 WAVED WASHER
6
69 M13 WAVED WASHER
4
70 8*13mm BUSHING
4
71 RETAINING RING
2
72 8*34mm SCREW
4
73 BIASED 8*34mm SCREW
2
74 11*58mm SCREW
2
75 M6x15mm SCREW
2
76 6x13mm WASHER
2
77 8x169mm WASHER
2
78 6x16mm WASHER
8
79 M8x15mm SCREW
12
80 ROUND HEAD
M6 X60mm SCREW
8
81 M8x45 MACHINE SCREW
1
82 M8x70mm SCREW
2
83 FRONT SLEEVE
2
84 SQUARE CAP
4
85 TENSION KNOB
1
86 M6x72mm SCREW
2
14
15
835 RECUMBENT PARTS LIST
