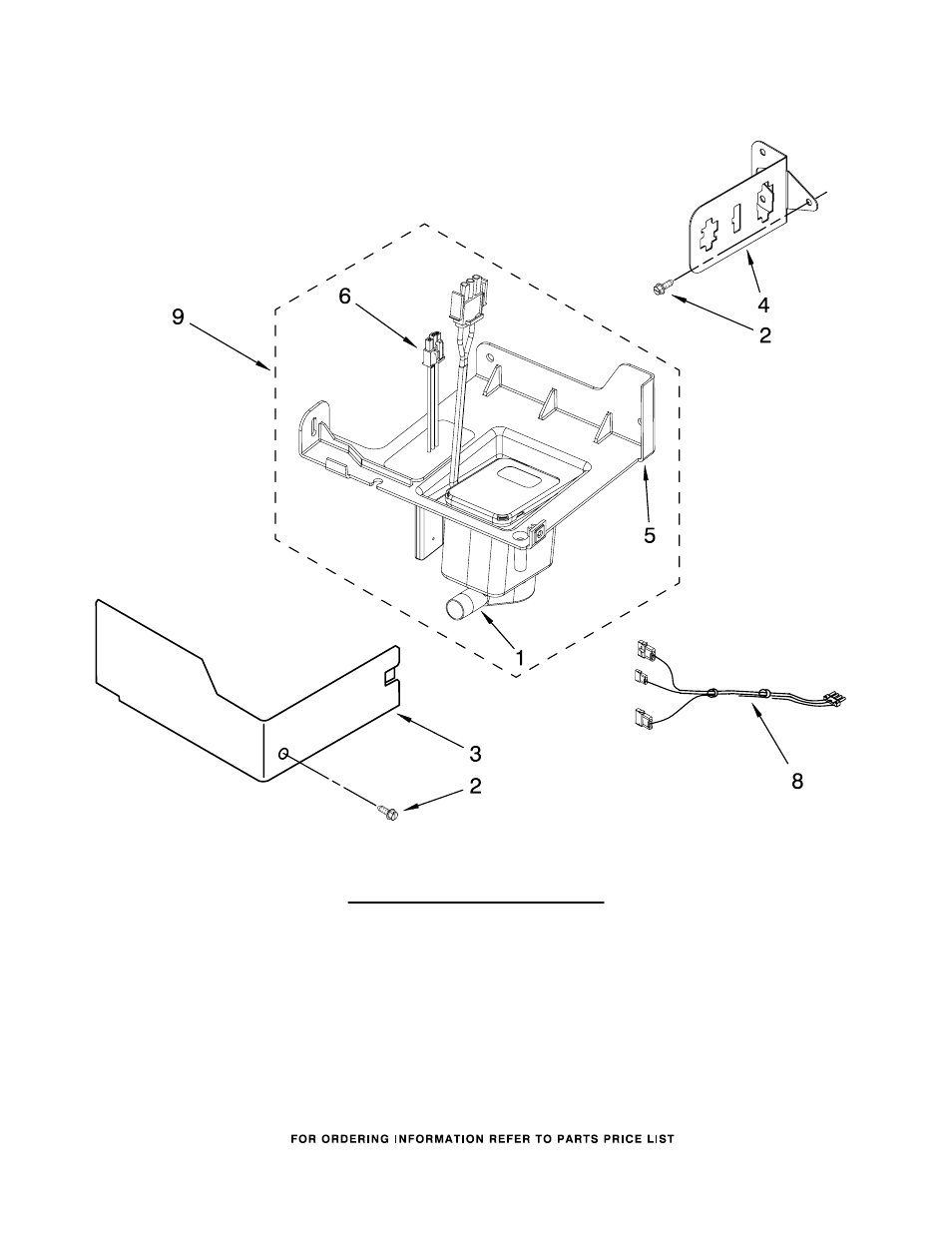

PUMP PARTS
5
For Models: KUIS15NRTW1, KUIS15NRTT1, KUIS15NRTB1, KUIS15NRTS1
(White) (Biscuit) (Black) (Stainless Steel)
W10165866
Illus. Part
No. No. DESCRIPTION
1
2313628 Pump−Recirculating
2
3400884 Screw 8−18 X 5/8
3
2185677 Cover, Pump
4
2313844 Bracket, Connector
Assembly
5
2313627 Bracket−Pump
6
2313643 Sensor−Water Level
8
2310092 Wiring Harness
Main To Pump
9
2313702 Pump Assembly
