Step 6

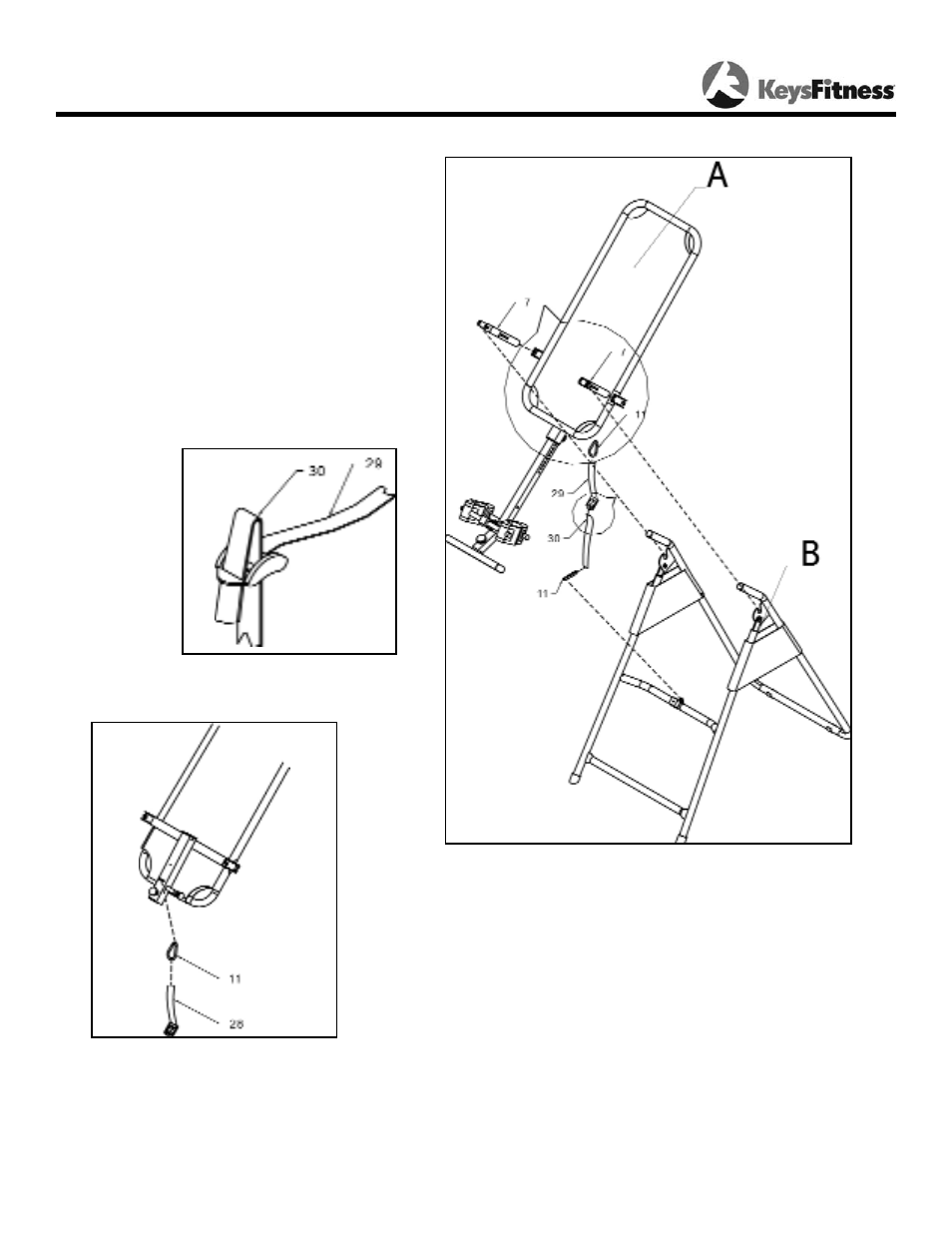

Slide a Pivot Arm (7) into each brace
located on the left and right side of the
Main Frame (4). Carefully set Unit A into
the notches at the top of Unit B. Connect
the Long Strap (30) to the Short Strap (29)
as shown in Figure 6b. Last, attach the
hook end of the Long Strap (30) to the
weld ring of the Front Support (1) and the
hook end of the Short Strap (29) to the
weld ring of the Main Frame (4). (Figure
6c)
Assembly
10
Congratulations!
You have completed the assembly of the IT-2 Inversion Table.
Figure 6a
Figure 6b
Figure 6
