Heater Control
The heater control acts to turn
the heater on and off as well
as setting the comfort level in
the room. Turning the knob
clockwise from the off position
will place the heater into oper-
ation. The further the knob is
rotated clockwise, the higher
the set point temperature.
turning the knob counterclock-
wise will lower the set point
temperature. Turning it all the
way counterclockwise will turn
the heater function off.
Main On/Off Switch
The On/Off switch supplies power
to all of the functions of the stove.
It is located behind the front door.
WARNING: During any service
of this appliance, the power to
the unit must be turned off. It is
not acceptable to use the
“On/Off” switch to meet this
requirement.
If repairing or replacing any electrical component or wiring, the original wire routing, color coding
and securing locations must be followed.
7
10005632

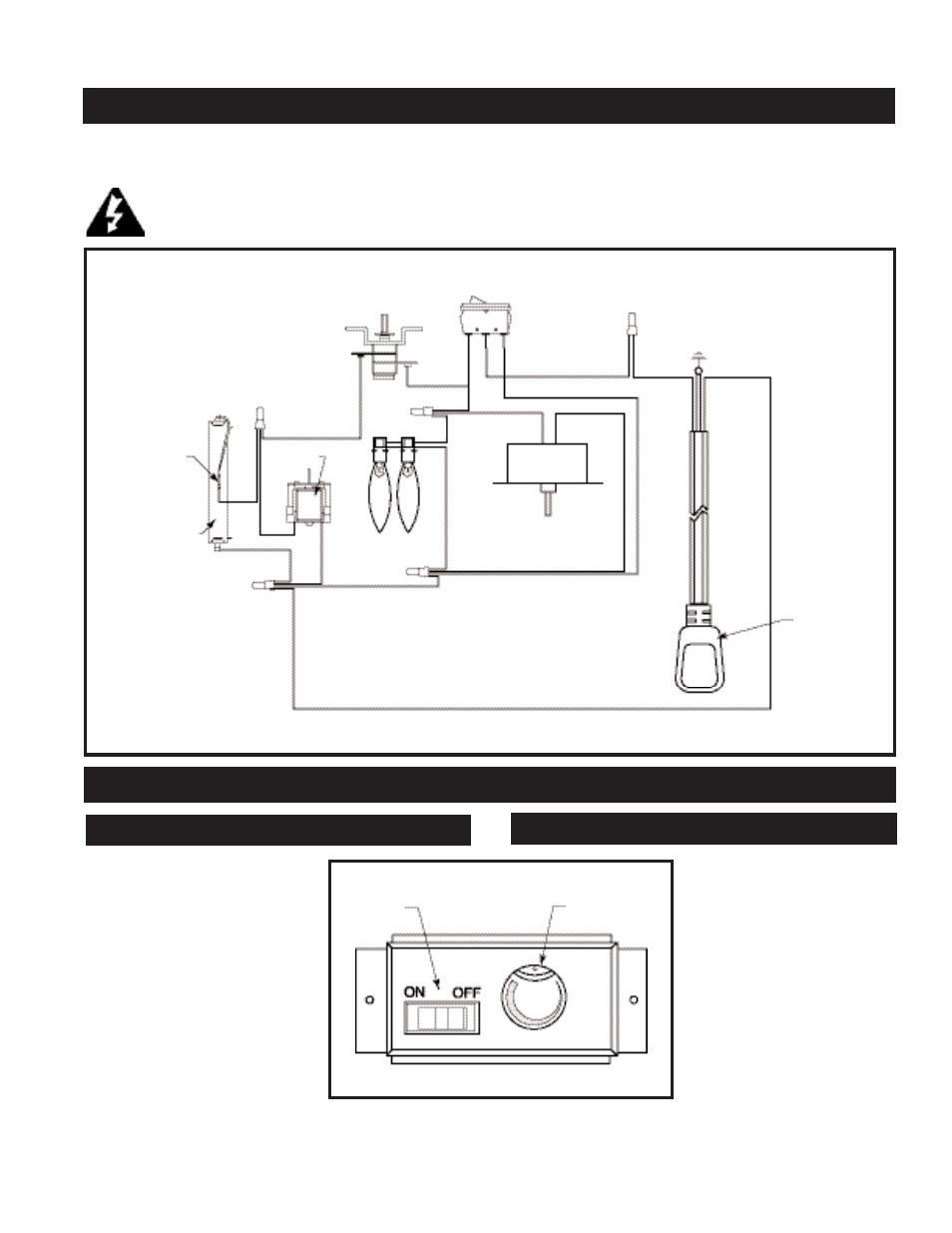

Electrical Wiring Diagram
Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in accordance with
national and local codes.
Operating Instructions
Blue
Blue
Temperature
Limiting
Control
Heater
Assembly
White
White
Red
Light Bulbs
White
Black
Motor
Thermostat
Black
Switch
Black
White
Three Wire
Plug
Black
Fan
Motor
Blue
LI N
Brown
Black
ON/OFF
Switch
Temperature
Control
