NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

Assembly

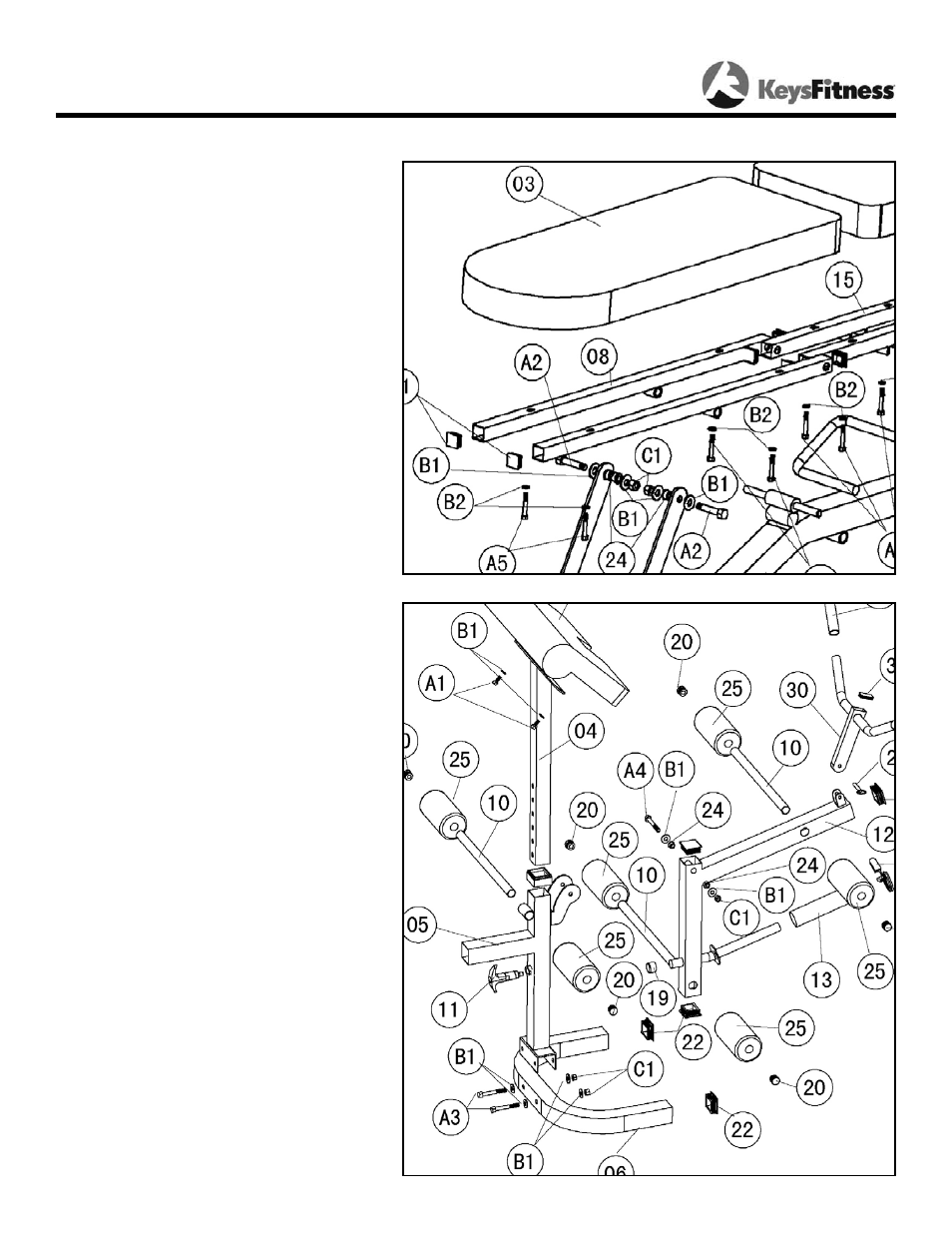

Attach the Backrest Board (3) to
the Backrest Support (8) using
four Washers (B2) and four Bolts
(A5).

Push two Bushings (24) into Leg
Developer (12). Install the Leg
Developer (12) onto the Main
Frame with one Bolt (A4), two
Washers (B1) and one Aircraft
Nut (C1).
Insert two Roller Foam Tubes
(10) halfway onto Leg Developer.
Push Foam Rollers (25) on each
side of the Roller Foam Tube to
complete Leg Developer
Assembly.
Repeat this step to place Foam
Roller onto Main Frame.
