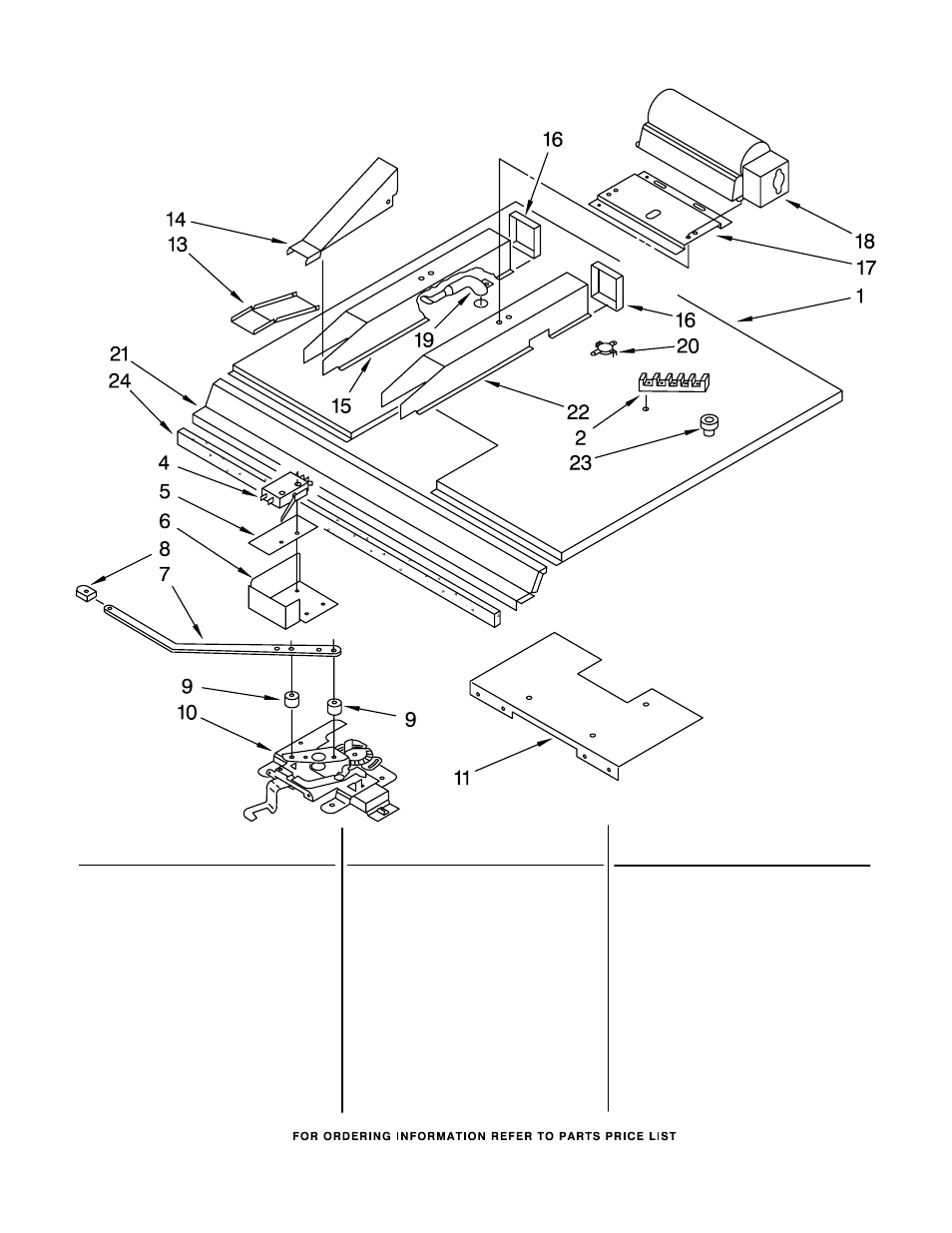

LATCH AND VENT PARTS
For Model: KEBI141YBL1
4174232
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 3183747 Module, Top
2 258076 Block, Terminal
308043 Screw (2)
4 3183784 Switch, latch
5 3178185 Insulator, Switch
6 3177662 Guard, Latch
7 3177969 Handle, Latch
8 3184039 Knob, Latch Handle
3183294 Screw
9 3184040 Spacer, Latch
Handle
3184037 Screw (2)
10 3178410 Latch Mechanism
11 3177496 Plate, Mounting
3177991 Screw
13 3183954 Nozzle, Vent
Bottom
14 3183955 Nozzle, Vent Top
300890 Screw (6)
15 3183999 Box, Vent
16 3183964 End, Vent Box
300890 Screw (6)
17 3183533 Bracket, Mounting
3177991 Screw (4)
18 3183720 Blower, fan
300890 Screw (5)
19 3183791 Tube, Vent
300890 Screw
20 3149650 SPST Thermostat
300890 Screw (2)
21 3183799 Shield, Heat
3177991 Screw (2)
22 3183953 Box, Vent
23 4159035 Bushing
24 313755 Seal, foam
