Assembly
The HEALTH TRAINER 403t treadmill will require assembly before operating. After opening the
box, remove any packing material from the treadmill.
Do not throw away any packing materials until the unit is working properly.
Place the base on a clean, level surface. Make sure the electrical cord will easily reach an elec-
trical outlet.
Locate the hardware pack and identify the following parts required for assembly.
Assembly Parts:
1. Owner’s Manual
2. Console Assembly
3. Left and Right Uprights
4. Top Rail
5. Allen Wrench
6. Arc Washer 10*20*1.5 mm (10)
7. Allen Bolt M8*15 mm (10)
8. Allen Bolts M5*15 mm (4)
5

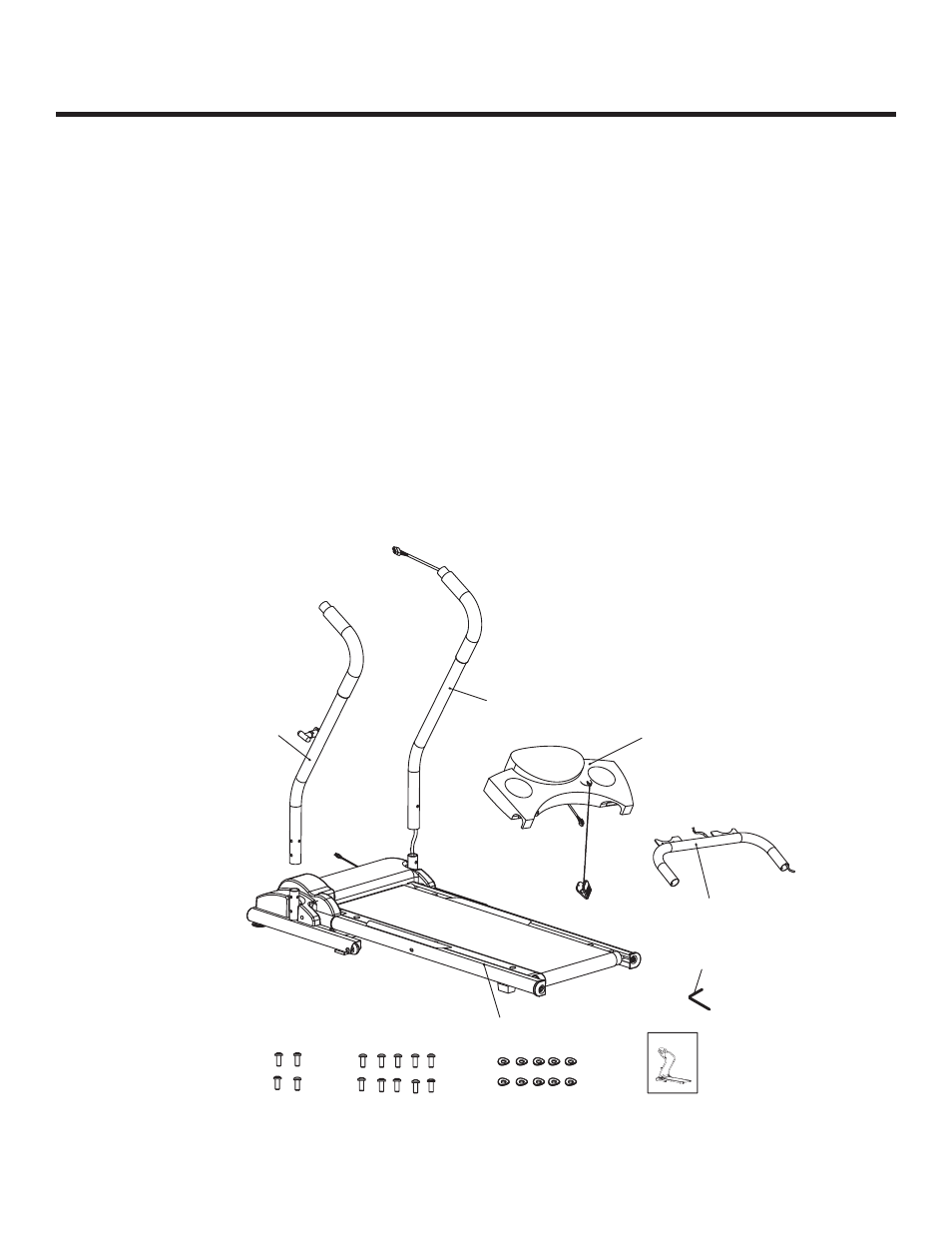

CONSOLE
RIGHT UPRIGHT
LEFT UPRIGHT
TOP RAIL
BASE
ALLEN WRENCH
ALLEN BOLT
M8X15
10PCS
ARC WASHER
φ10Xφ20X1.5
10PCS
Owner’s Manual
ALLEN BOLT
M5X15
4PCS
