Step 5, Assembly – Keys Fitness Functional Trainer KF-FT User Manual
Page 9
End
Start
5
STEP 5

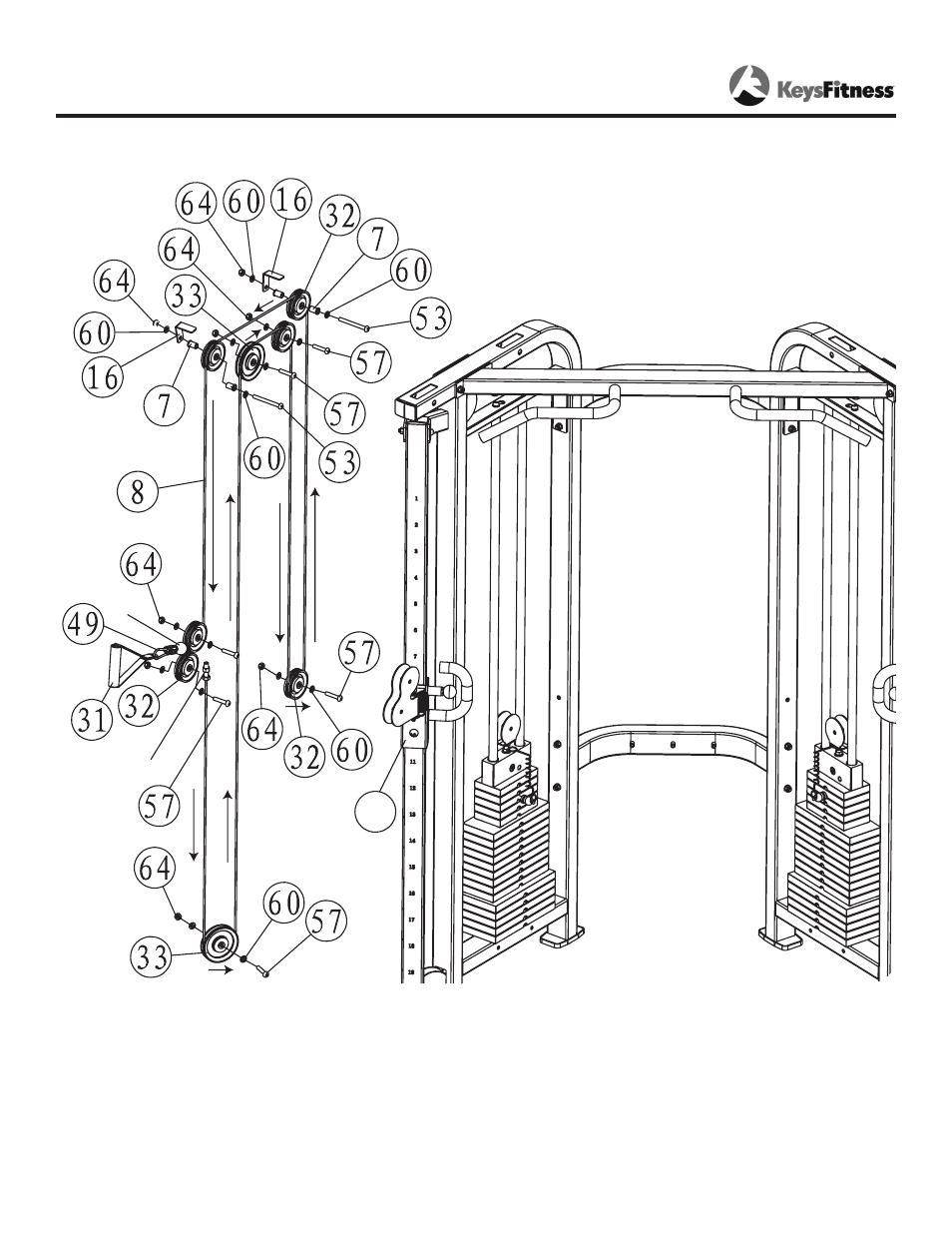

Start by threading one end of the Pulley Cable (8) into Left Slip
Frame (5). Remove hardware and ball from the other end of the
cable. Follow the diagram above to complete the cable installation.
Note: When installing the cable, make sure the cable is centered on
the pulley and is not rubbing against any part of the frame or any
hardware.
Repeat this step to complete the right side.
9
Assembly
