Keys Fitness bicylce User Manual
Page 7
REF
KEYS #
DESCRIPTION
QTY
19
302-00057 CRANK PIN
4
20
302-00070 STAR WASHER
4
21
302-00096 CAP NUT
2
22
323-00110 FRAME ASSEMBLY
1
23
306-00257 SPACER
2
24
302-00064 CHAIN (90 LINKS)
1
25
302-00066 FRANGE NUT
4
26
302-00090 CHAIN ADJUSTER
2
27
311-00028 C/WHEEL & OFFSET BOSS
1
28-1
311-00015 FAN WHEEL
1
28-2
305-00027 WHEEL CAGE-LEFT
1
28-3
305-00027 WHEEL CAGE-RIGHT
1
28-4
302-00068 FIXED GEAR
1
28-5
310-00115 FREEWHEEL SPACER
1
28-6
310-00114 LOCK NUT
1
28-7
310-00081 CLIP
8
28-8
310-00113 TAPPING SCREW
8
29
306-00130 PLUG
1
30
323-000123 LINK BAR(R&L) ASSEMBLY
2
31
330-00013 CRANK- RIGHT
1
32
330-00012 CRANK- LEFT
1
33
330-00017 LEFT-SMALL CRANK
1
34-1
302-00065 HUB 1
34-2
310-00112 FIXED GEAR
1
34-3
302-00094 LOCK NUT
2
34-4
310-00111 CHAIN WHEEL
1
34-5
302-00093 SPRING WASHER
3
34-6
302-00092 ROUND HEAD SCREW
3
35
302-00091 FLAT WASHER
2
36
305-00043 SAFE COVER(L)
1
37
305-00042 SAFE COVER(R)
1
38
302-00076 CHAIN (68 LINKS)
1
39
330-00014 CROMO AXLE
1
40
302-00067 ROUND HEAD SCREW
14
41
306-00281 SEAT POST SLEEVE
1
42
302-00077 SEAT POST WASHER
1
43
306-00280 RUBBER STRAP
2
44
305-00030 RIGHT SHROUD
1
45
305-00029 LEFT SHROUD
1
46
302-00090 CHAIN ADJUSTER
1
47
331-00003 B.B SET
1
48
310-00110 BOTTLE RACK
1
49
310-00026 EAR CLIP
1

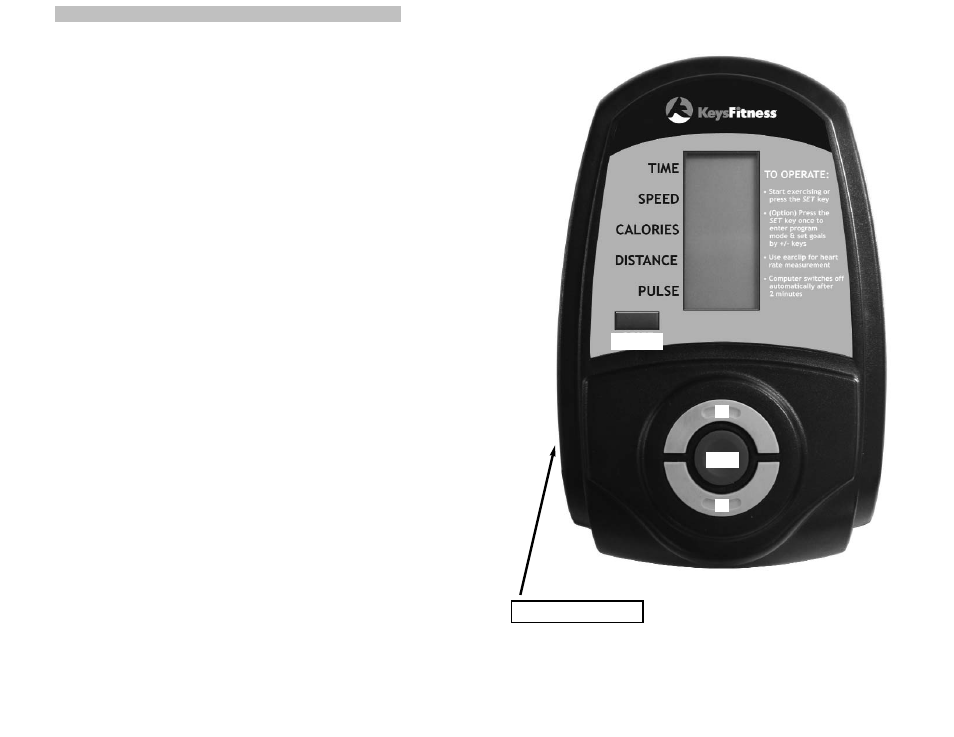

10
11
EAR CLIP INPUT
SET
+
-
RESET
